AmpliVox SW800 TITAN WIRELESS User Manual

Battery powered pa system
Hide thumbs Also See for SW800 TITAN WIRELESS:

Advertisement

Quick Links

Download this manual
READ FIRST ABOUT BATTERY OPERATION!
BY OBSERVING A FEW SIMPLE RULES, YOU CAN EXTEND THE
LIFESPAN OF THE SEALED LEAD ACID (SLA) BATTERIES THAT
OPERATE YOUR AMPLIVOX BATTERY POWERED PORTABLE
PA SYSTEM OR ACCESSORY:
• ALWAYS STORE SLA BATTERIES IN A CHARGED
CONDITION WHEN REMOVED FROM SERVICE.
• FOR SLA BATTERIES IN STORAGE, APPLY A TOPPING
CHARGE EVERY SIX MONTHS.
• AVOID REPEATED DEEP DISCHARGES. THIS PRACTICE
WILL CUT THE LIFE OF THE BATTERY SIGNIFICANTLY.
• AVOID OPERATING SLA BATTERIES AT ELEVATED
AMBIENT TEMPERATURES.
• BATTERY STATUS INDICATOR - RED = NO BATTERY POW-
ER, YELLOW = ABOUT 3 HOURS LEFT. CHARGE BATTERY
OVERNIGHT FOR BEST RESULTS.
Thank you for choosing the SW800 TITAN from
AmpliVox Sound Systems.
We are excited in introducing this truly unique system.
Our system combines flexibility with functionality.
Please refer to this user guide as you enjoy the
unique capabilities of another quality product from
AmpliVox Sound Systems.
We encourage you to visit our website
www.ampli.com to register your product for its war-
ranty coverage, sign up to receive our newsletter,
download our catalog, and learn more about the com-
plete line of AmpliVox audio visual products, including
portable PA systems, and lecterns.
AmpliVox • 3453 Commercial Ave., Northbrook, IL 60062 • Phone: (800)267-5486 • Fax: (800)267-5489 www.ampli.com
User Guide
SW800 TITAN WIRELESS
Battery Powered PA System

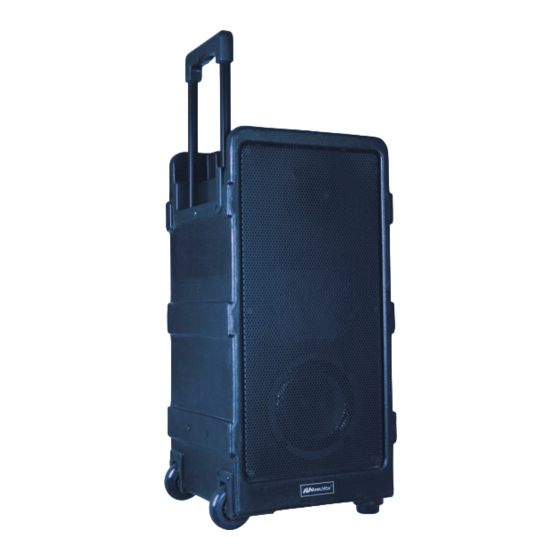

Photo may appear different then your actual unit.

TABLE OF CONTENTS

CONTROL / BACK PANEL ........................... 4
OPERATION .... ...................................... 4
FUSE..................................................... 5
AUDIO FUNCTIONS ..................................5
WIRELESS PANEL RECEIVER .................6
WIRELESS BODYPACK TRANSMITTER...... 6
BLUETOOTH RECEIVER...........................7
WIRELESS SPEAKER TRANSMITTER....... 8
OPTIONAL ACCESSORIES ......................10
TROUBLESHOOTING ........................... 10
WARRANTY .............................................. 11

Advertisement

loading
Need help?

Need help?

Do you have a question about the SW800 TITAN WIRELESS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AmpliVox SW800 TITAN WIRELESS

Summary of Contents for AmpliVox SW800 TITAN WIRELESS

  • Page 1: Table Of Contents

    WIRELESS SPEAKER TRANSMITTER……. 8 plete line of AmpliVox audio visual products, including OPTIONAL ACCESSORIES .………………...10 portable PA systems, and lecterns. TROUBLESHOOTING ……..………………. 10 WARRANTY …………........11 AmpliVox • 3453 Commercial Ave., Northbrook, IL 60062 • Phone: (800)267-5486 • Fax: (800)267-5489 www.ampli.com...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS Before using this product, read the instruction manual for important safety information. Please retain this manual for future reference and warranty information. Troubleshooting & Servicing Do not attempt to service or repair the device yourself. Refer all servicing to qualified service personnel. Do not attempt to modify the device in anyway.

  • Page 3: Getting Started/Quick Setup

    Getting Started/Quick Setup (Also Printed on Battery Cover) • POWER - Push POWER switch (middle of panel) to ON . All accessories have separate ON / OFF power switches. • WIRELESS MIC - Turn volume dial clockwise to turn on. Select channel using the up/down buttons.

  • Page 4: Control / Back Panel

    CONTROL / BACK PANEL Retractable Handle Squeeze handle to release, pull up until it locks WIRELESS MICROPHONE 16 CHANNEL RECEIVER BLUETOOTH PLAYER SEPARATE MICROPHONE 1 & 2 / LINE IN - VOLUME, BASS & TREBLE CONTROLS XLR MICJACKS EXTERNAL SPEAKER 1/4ʺ POWER SWITCH with LED LINE OUT: 1/4"...

  • Page 5: Fuse

    ATO Type (Blade Fuse—Automotive) 15 amp / 32VDC (Blue Color) fuse if needed. Again, detach the AC adapter cord and battery connections before replacement. If after replacing the fuse, the SW800 does not “power on”, please call AmpliVox Customer Service at 800-267-5486. AUDIO FUNCTIONS WIRED MICROPHONE INPUTS: Two XLR type, MIC 1 and MIC 2.

  • Page 6: Wireless Handheld Microphone

    10 dB position. Adjust to prevent distortion while speaking. WIRELESS HANDHELD MICROPHONE—MODEL S1695 If you are using the AmpliVox S1695 Wireless Handheld Microphone Transmitter, screw off the lower bottom section of microphone and insert 2 - "AA" 1.5 Volt alkaline batteries.
  • Page 7 WIRELESS HANDHELD MICROPHONE—MODEL S1695 con’t • TURN ON MICROPHONE: Press and hold Microphone Operation and Status Display the “POWER/MUTE” (3) button until LCD screen lights up. • TO MUTE: Press “POWER/MUTE” button Functions twice to MUTE. Channel number will flash when muted.

  • Page 8: Troubleshooting

    • Check volume levels for each channel and UNIT OPERATES ON AC BUT NOT be replaced. Batteries are available main volume. BATTERY from Amplivox. • • Check battery terminals. If using wireless, be sure receiver(s) and/or • To replace the batteries use a Phil- transmitter battery is installed and/or is on.

  • Page 12: Warranty

    To obtain Warranty Service, contact AmpliVox (800-267-5486) to be assigned a Return Authorization number (RA#). After receiv- ing a RA#, the defective unit is to be returned to AmpliVox in either its original packaging or packaging affording an equal degree of protection.
