MODEL S222 INCLUDES:
Carrying case with shoulder strap

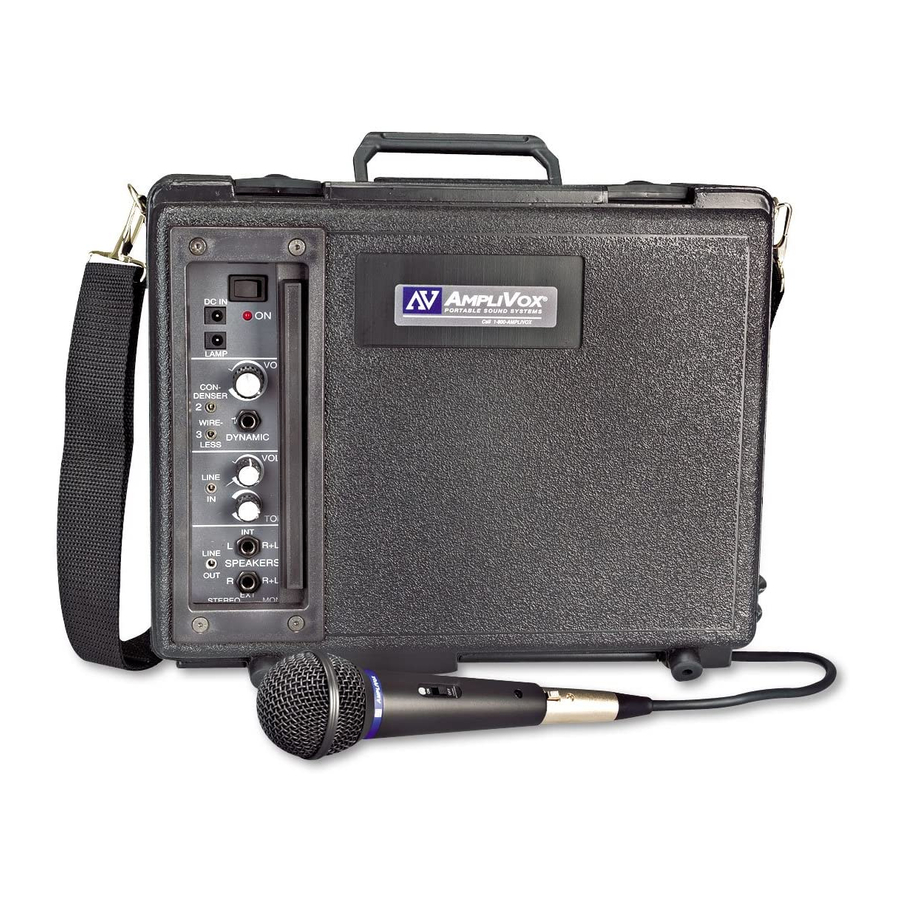

Built in Multimedia Stereo Amplifier and speaker
Professional Hand Held microphone with 15' cord

SET UP:

INSTALL POWER SUPPLY
The Battery pack is standard. Optional Power Supplies may be substituted: Model S1460, International AC
Adapter/Recharger (110/220V, 50/60Hz). Model S1462, 12 Volt DC adapter (automotive cigarette lighter plug-
in). Model S1465, NiCad Battery Pack.

TO INSTALL OR REPLACE BATTERIES

Open carrying case cover. Lift out battery holder from case. Insert 10 new Alkaline "D" cell batteries, be sure to
observe polarity, or replace with Model S1465 NiCad battery pack. Carefully replace battery pack.
Do not mix battery types or attempt to recharge alkaline batteries - equipment damage, safety hazard or fire
could result.

TO OPERATE:

Plug hand held microphone into DYNAMIC microphone jack. Turn amplifier on (large rocker switch located on
the amplifier panel). The red light will show that power is available. Rotate MIC VOLUME control knob to
obtain desired loudness level throughout the coverage area.
SW222 – Turn amplifier on (large rocker switch located on amplifier panel) and turn internal wireless receiver on
(top right of chassis). Attach lapel microphone to wireless transmitter and turn transmitter on (uses 9 volt battery).
Insure transmitter and receiver are both on same frequency (A or B). Rotate MIC VOLUME control knob to
obtain desired loudness level.

ON-OFF

When power switch is in the ON position, the red light will be on.

DC IN

Connection for optional power adapter:
S1460 International AC Adapter/Recharger (110/220V, 50/60Hz)
S1462 12 Volt DC (automotive cigarette lighter) Adapter

LAMP

Connection for 12 to15V DC accessory
AUDIO PORTABLE BUDDY (APB)
PORTABLE PUBLIC ADDRESS SYSTEM
MODEL S222/SW222
MODEL SW222 INCLUDES:
Carrying case with shoulder strap
Built in Multimedia Stereo Amplifier and speaker
Built in Wireless Microphone System with lapel
microphone
