SW915 DIGITAL AUDIO TRAVEL PARTNER
READ FIRST ABOUT BATTERY OPERATIONS!
BY OBSERVING A FEW SIMPLE RULES, YOU CAN EXTEND THE
LIFESPAN OF THE SEALED LEAD ACID (SLA) BATTERIES THAT
OPERATE YOUR AMPLIVOX BATTERY POWERED PORTABLE
PA SYSTEM OR ACCESSORY:
•ALWAYS KEEP YOUR AMPLIVOX PORTABLE PA SYSTEM
PLUGGED IN AND CHARGING WHEN NOT IN USE.
•FOR LONG TERM STORAGE (OVER 1 MONTH) WE RECOM-
MEND DISCONNECTING THE SLA BATTERIES TO AVOID
GRADUAL, CONTINUOUS DISCHARGE.
•ALWAYS STORE SLA BATTERIES IN A CHARGED CONDITION
WHEN REMOVED FROM SERVICE.
•NEVER LET THE BATTERY VOLTAGE DROP BELOW 10V.
•FOR SLA BATTERIES IN STORAGE, APPLY A TOPPING
CHARGE EVERY SIX MONTHS.
•AVOID REPEATED DEEP DISCHARGES. THIS PRACTICE WILL
CUT THE LIFE OF THE BATTERY SIGNIFICANTLY.
•AVOID OPERATING SLA BATTERIES AT ELEVATED AMBIENT
TEMPERATURES.
•BATT STAT INDICATOR - RED = NO BATTERY POWER,
YELLOW = 1 HOUR LEFT. CHARGE BATTERY OVERNIGHT
FOR BEST RESULTS.
Thank you for choosing the SW915 Digital Audio Travel
Partner PA System from AmpliVox Portable Sound Sys-
tems.
We are excited in introducing this truly unique system. Our
system combines flexibility with functionality. Please refer to
this user guide as you enjoy the unique capabilities of an-
other quality product from AmpliVox Portable Sound Sys-
tems.
We encourage you to visit our website www.ampli.com to
register your product for its warranty coverage, sign up to
receive our newsletter, download our catalog, and learn
more about the complete line of AmpliVox audio visual
products, including portable PA systems, and lecterns.
AmpliVox • 650 Anthony Trail Suite D, Northbrook, IL 60062 • Phone: (800)267-5486 • Fax: (800)267-5489 www.ampli.com
User Guide
Battery Powered PA System

TABLE OF CONTENTS

GETTING STARTED/QUICK SETUP.................................... 3
CONTROL / BACK PANEL .................................................. 4
AUDIO FUNCTIONS & ADJUSTMENT................................ 5
INPUTS / OUTPUTS ............................................................. 6
INDICATOR LIGHTS ............................................................ 6
REMOTE CONTROL............................................................. 7
WIRELESS RECEIVER......................................................... 8
WIRELESS HANDHELD MICROPHONE.............................. 8
CD PLAYER.......................................................................... 9
OPTIONAL EQUIPMENT
ROTORAY KNOB CONTROL PANEL ................................. 6
DIGITAL RECORDER/PLAYER............................................10
CASSETTE RECORDER/PLAYER.......................................10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW915 and is the answer not in the manual?

Questions and answers

Wally T. Guardian
March 20, 2025

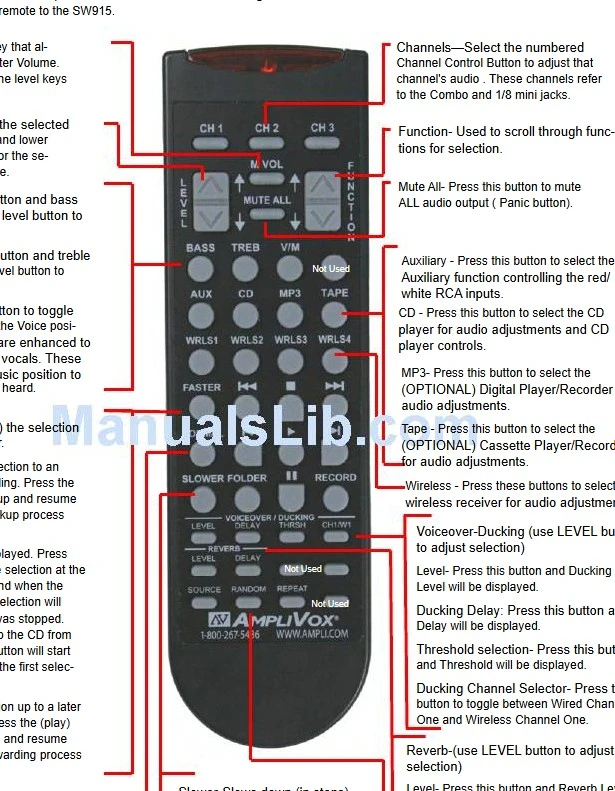

remote control for Amplivox SW915

User image 67dca65b5cb46
0
2 comments:
Mr. Anderson
March 20, 2025

The remote control for the AmpliVox SW915 operates the system from up to 50 feet away, requiring a direct line of sight for best performance. It includes 2 "AA" batteries and Velcro for attachment to the SW915. The remote features several functions, including Master Volume adjustment, channel selection, level adjustment, function scrolling, mute all (panic button), bass and treble control, and auxiliary selection.

This answer is automatically generated

0
Wally T. Guardian
March 23, 2025

@Mr. Anderson

User image 67e01d97018ac
0
Wally T. Guardian
March 23, 2025

Where can I buy the remote control for SW-915

User image 67e01df68a401
0

Subscribe to Our Youtube Channel

Related Manuals for AmpliVox SW915

Summary of Contents for AmpliVox SW915

  • Page 1: Table Of Contents

    ROTORAY KNOB CONTROL PANEL ......... 6 more about the complete line of AmpliVox audio visual DIGITAL RECORDER/PLAYER..........10 products, including portable PA systems, and lecterns. CASSETTE RECORDER/PLAYER........10 TROUBLESHOOTING............11 AmpliVox • 650 Anthony Trail Suite D, Northbrook, IL 60062 • Phone: (800)267-5486 • Fax: (800)267-5489 www.ampli.com...

  • Page 2: Important Safety Instructions

    https://www.supplychimp.com/ IMPORTANT SAFETY INSTRUCTIONS Before using this product, read the instruction manual for important safety information. Please retain this manual for future reference and warranty information. Troubleshooting & Servicing Do not attempt to service or repair the device yourself. Refer all servicing to qualified service personnel. Do not at- tempt to modify the device in anyway.

  • Page 3: Getting Started/Quick Setup

    1-800-267-5486, 8am-6pm M-F CST . PLEASE NOTE: THE REMOTE DOES NOT TURN THE UNIT ON OR OFF. YOU MUST DO THAT ON THE CONTROL PANEL SW915 SPECIFICATIONS Sensitivity for rated output: Rated Power Output 250W Dynamic, 132W RMS Balanced Microphone -58 dBV (1.25 mVrms...

  • Page 4: Control / Back Panel

    If after resetting and replacing the breaker and fuse , the SW915 does not ““power on”, please call AmpliVox Customer THE SW915 MUST BE PLUGGED IN AND CHARGING WHEN NOT Service at 800-267-5486. IN USE TO MAXIMIZE BATTERY LIFE. RECHARGING THE UNIT...

  • Page 5: Audio Functions & Adjustment

    AUDIO FUNCTIONS AND ADJUSTMENTS The SW915 LED Display tells you the status / setting / level of your AUDIO FUNCTIONS. To make changes use the UP / DN buttons and the SET / ADJUST buttons located under the LED Display. This procedure is the same for all the functions. To make a change press the ADJUST button first.

  • Page 6: Inputs / Outputs

    A ‘Line Out’ feed from the house system ACCESSORY INPUTS: could be plugged into the LINE IN jack of a SW915 located in the Add pre-recorded music to your presentations with the internal overflow room. The SW915 master volume can then be adjusted to CD or tape player.

  • Page 7: Remote Control

    The remote control for the SW915 can be used to operate the controls from only the backside (control side). The remote control will operate the SW915 from a distance of up to 50 feet. Must be in direct line of sight for best results. 2 "AA" batteries are included. Vel- cro is included to attach your remote to the SW915.

  • Page 8: Wireless Receiver

    WIRELESS HANDHELD MICROPHONE—MODEL S1695 If you are using the Amplivox S1695 Wireless Handheld Microphone Transmitter, screw off the lower bottom section of microphone and insert 2 - "AA" 1.5 Volt alkaline batteries. Because the microphone has an Auto Sync function, you first select channel you wish to use on the receiver. Then press the ASC button (D), the IR light will start to flash.

  • Page 9: Cd Player

    https://www.supplychimp.com/ WIRELESS HANDHELD MICROPHONE—MODEL S1695 con’t Functions Microphone Operation and Status Display 1) Interchangeable Microphone Head TURN ON MICROPHONE: Push and hold the “POWER/MUTE” (3) button until LCD screen lights up. TO MUTE: Press “POWER/MUTE” button twice to 2) LCD Screen MUTE.

  • Page 10: Digital Recorder/Player

    EJ function to eject the cassette tape from the Cassette microphones, CD decks, or any other sources being repro- Deck. duced by the SW915, including the CD Deck. Recording will · RESET: Press the RESET function to reset the number in start instantly.

  • Page 11: Troubleshooting Guide

    UNIT OPERATES ON AC BUT NOT BATTERY · year or two the battery may need to be replaced. Batter- Check battery terminals ies are available from Amplivox. · Check 25A Circuit Breaker. Reset if needed. · To replace the batteries use a Phillips screwdriver...
  • Page 12 To obtain Warranty Service, contact AmpliVox (800-267-5486) to be assigned a Return Authorization number (RA#). After receiv- ing a RA#, the defective unit is to be returned to AmpliVox in either its original packaging or packaging affording an equal degree of protection.
