S1297 / S1297-70 Wireless Companion
READ FIRST ABOUT BATTERY OPERATIONS!
BY OBSERVING A FEW SIMPLE RULES, YOU CAN EXTEND THE
LIFESPAN OF THE SEALED LEAD ACID (SLA) BATTERIES THAT
OPERATE YOUR AMPLIVOX BATTERY POWERED PORTABLE
PA SYSTEM OR ACCESSORY:
•ALWAYS KEEP YOUR AMPLIVOX PORTABLE PA SYSTEM
PLUGGED IN AND CHARGING WHEN NOT IN USE.
•FOR LONG TERM STORAGE (OVER 1 MONTH) WE RECOM-
MEND DISCONNECTING THE SLA BATTERIES TO AVOID
GRADUAL, CONTINUOUS DISCHARGE.
•ALWAYS STORE SLA BATTERIES IN A CHARGED CONDITION
WHEN REMOVED FROM SERVICE.
•NEVER LET THE BATTERY VOLTAGE DROP BELOW 10V.
•FOR SLA BATTERIES IN STORAGE, APPLY A TOPPING
CHARGE EVERY SIX MONTHS.
•AVOID REPEATED DEEP DISCHARGES. THIS PRACTICE WILL
CUT THE LIFE OF THE BATTERY SIGNIFICANTLY.
•AVOID OPERATING SLA BATTERIES AT ELEVATED AMBIENT
TEMPERATURES.
•BATT STAT INDICATOR - RED = NO BATTERY POWER,
YELLOW = 1 HOUR LEFT. CHARGE BATTERY OVERNIGHT
FOR BEST RESULTS.
Thank you for choosing the S1297 Wireless Companion
Battery Powered Speaker from AmpliVox Portable Sound
Systems.
We are excited in introducing this truly unique system. Our
system combines flexibility with functionality. Please refer to
this user guide as you enjoy the unique capabilities of an-
other quality product from AmpliVox Portable Sound Sys-
tems.
We encourage you to visit our website www.ampli.com to
register your product for its warranty coverage, sign up to
receive our newsletter, download our catalog, and learn
more about the complete line of AmpliVox audio visual
products, including portable PA systems, and lecterns.
AmpliVox • 650 Anthony Trail Suite D, Northbrook, IL 60062 • Phone: (800)267-5486 • Fax: (800)267-5489 www.ampli.com
User Guide
Battery Powered Speaker
TABLE OF CONTENTS
GETTING STARTED/QUICK SETUP....................................3
SPECIFICATIONS......................................................3

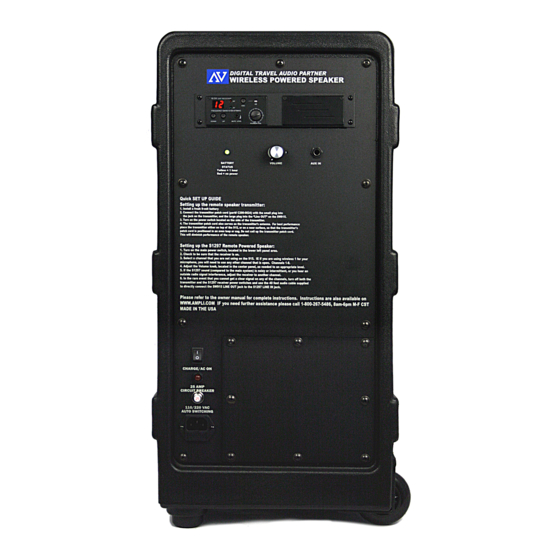

CONTROL / BACK PANEL .................................................. 4
OPERATION ..................................................................4
AUDIO FUNCTION......................................................5
INPUTS ................ ............................................................ 5
INDICATOR LED's
.............................................................5
WIRELESS TRANSMITTER CONNECTION........................ 6
WIRELESS SPEAKER RECEIVER.................................6
Advertisement
Table of Contents
Related Manuals for AmpliVox S1297
Summary of Contents for AmpliVox S1297
- Page 1 AmpliVox audio visual products, including portable PA systems, and lecterns. AmpliVox • 650 Anthony Trail Suite D, Northbrook, IL 60062 • Phone: (800)267-5486 • Fax: (800)267-5489 www.ampli.com...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Before using this product, read the instruction manual for important safety information. Please retain this manual for future reference and warranty information. Troubleshooting & Servicing Do not attempt to service or repair the device yourself. Refer all servicing to qualified service personnel. Do not at- tempt to modify the device in anyway. - Page 3 5. Turn on wireless speaker transmitter S1691T. If the RF LED on the S1297 receiver lights up you are now all set. 6. Adjust the VOLUME knob, located in the center of panel, as needed to the appropriate level.
- Page 4 “off” position. S1297 does not “power on”, please call AmpliVox Customer THE S1297 MUST BE PLUGGED IN AND CHARGING WHEN NOT Service at 800-267-5486. IN USE TO MAXIMIZE BATTERY LIFE. RECHARGING THE UNIT WARNING! RISK OF SHOCK! DO NOT OPEN UNIT.
- Page 5 Volume Control (G) SETUP · The S1297 receiver has its own POWER / VOLUME Control (G). Make sure that you have screwed on the UHF antenna. Turn Power On (main power must also be on). A Frequency Channel will ap- pear in the Channel Display (A).
- Page 6 SW915 or other input device. INPUTS LINE IN JACK The S1297 panel has one ¼” jack labeled LINE IN. The LINE IN receives an external audio signal from any equipment the plug’s cable is attached to. INDICATOR LED′s LED’s starting from the left side;...
-
Page 7: Troubleshooting Guide
AC outlet for several hours. After a · year or two the battery may need to be replaced. Batter- Check battery terminals ies are available from Amplivox. · Check 25A Circuit Breaker. Reset if needed. · To replace the batteries use a Phillips screwdriver and... - Page 8 To obtain Warranty Service, contact AmpliVox (800-267-5486) to be assigned a Return Authorization number (RA#). After receiv- ing a RA#, the defective unit is to be returned to AmpliVox in either its original packaging or packaging affording an equal degree of protection.
