AmpliVox BELT BLASTER Quick Start Manual

AmpliVox BELT BLASTER Quick Start Manual

Waistband amplifier

Advertisement

S206

INCLUDED:

1. Belt Blaster Personal Waistband Amplifier
2. 44" Adjustable Belt
3. Headset and Lapel Microphone
4. Storage Case

INSERTING/CHANGING THE BATTERIES

S206 Batteries: Insert six (6) standard ʺAAʺ batteries (not included) as show below.
Install Batteries:
1.
Locate the battery compartment on the right rear side of the amplifier.
2.
Press (do not pry) the cover locking tab to the right and lift to remove battery cover.
3.
Install the 6 batteries . Follow the picture of battery direction as seen in the bottom of
the holder. Negative (-) flat side of battery toward spring.
4.
Insert battery cover and press back into place.

BATTERY REPLACEMENT

When batteries (S207) will no longer hold a charge, all 6 batteries MUST be replaced at the same
time. Mixing old and new batteries can lead to battery failure.
CHARGING BATTERIES FOR FIRST USE (S207)
Your new Belt Blaster Pro is shipped with 6 NiMH rechargeable batteries. Once they have been installed,
they must receive a deep charge (24 hours) before being used.
1.
Insert battery charger mini plug (AC adapter) into the charging port located on the bottom of the amplifier.
2.
Plug the adapter into a working power outlet. Charge the Belt Blaster Pro for 24 hours for the first charge.
After this, only 8 - 14 hour charge is necessary
.
S207 Rechargeable Batteries: The rechargeable Nickel Metal Hydride batteries of the S207 Belt Blaster Pro will have a life
expectancy of approximately 2 years. Actual life will vary significantly depending on your usage and charging habits. There may
be a time when you need to use backup power to get through a presentation. The Belt Blaster PRO was intentionally designed
to accommodate standard "AA" batteries for just such occasions.
NOTE:
The AC Adapter/Charger can ONLY be used to recharge the batteries . Can not power the amplifier simultaneously.
CAUTION! NEVER PLUG IN AC ADAPTER/CHARGER WITH NON-RECHARGEABLE BATTERIES INSIDE AMPLIFIER.
SERIOUS DAMAGE MAY BE CAUSED TO BATTERIES AND AMPLIFIER.
AmpliVox • 650 Anthony Trail Suite D, Northbrook, IL 60062 • Phone: (800)267-5486 • Fax: (800)267-5489 www.ampli.com

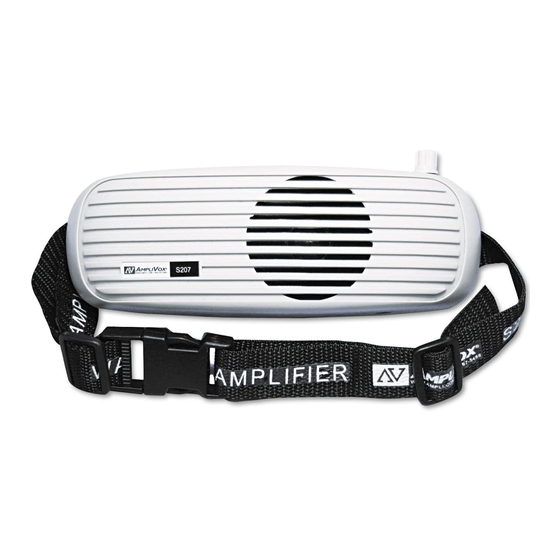

S206 BELT BLASTER /
S207 BELT BLASTER PRO
WAISTBAND AMPLIFIER
S207
INCLUDED:
1. Belt Blaster Pro Personal Waistband Amplifier
2. 44" Adjustable Belt
3. Headset and Lapel Microphone
4. AC Adapter/Recharger
5. Storage Case
6. Waistband Case
7. 6 - NiMH rechargeable batteries
CHARGER PORT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BELT BLASTER and is the answer not in the manual?

Questions and answers

Summary of Contents for AmpliVox BELT BLASTER

  • Page 1 2 years. Actual life will vary significantly depending on your usage and charging habits. There may be a time when you need to use backup power to get through a presentation. The Belt Blaster PRO was intentionally designed to accommodate standard ″AA″...
  • Page 2 TROUBLE SHOOTING POPPING OR CRACKLING NOISE Popping or crackling noises coming from the speaker of your Belt Blaster, particularly when the microphone cable is moved, are usually caused by dirt, finger oils or corrosion build-up on the microphone plug. Remove the plug and clean the metal tip and sleeve with a clean cloth or cotton swab moistened with alcohol, or with a pre- moistened towelette (Wet Wipe or similar).
