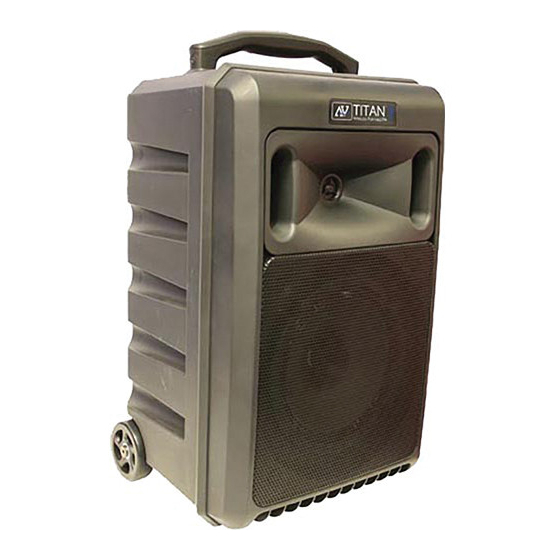

AmpliVox SW800 User Manual
  1. Manuals
  2. Brands
  3. AmpliVox Manuals
  4. Speakers
  5. SW800
  6. User manual

AmpliVox SW800 User Manual

With bluetooth battery powered pa system
Hide thumbs Also See for SW800:
Table of Contents

Advertisement

Quick Links

READ FIRST ABOUT BATTERY OPERATIONS!
BY OBSERVING A FEW SIMPLE RULES, YOU CAN EXTEND THE
LIFESPAN OF THE SEALED LEAD ACID (SLA) BATTERIES THAT
OPERATE YOUR AMPLIVOX BATTERY POWERED PORTABLE
PA SYSTEM OR ACCESSORY:
•ALWAYS KEEP YOUR AMPLIVOX PORTABLE PA SYSTEM
PLUGGED IN AND CHARGING WHEN NOT IN USE.
•FOR LONG TERM STORAGE (OVER 1 MONTH) WE RECOM-
MEND DISCONNECTING THE SLA BATTERIES TO AVOID
GRADUAL, CONTINUOUS DISCHARGE.
•ALWAYS STORE SLA BATTERIES IN A CHARGED CONDITION
WHEN REMOVED FROM SERVICE.
•NEVER LET THE BATTERY VOLTAGE DROP BELOW 10V.
•FOR SLA BATTERIES IN STORAGE, APPLY A TOPPING
CHARGE EVERY SIX MONTHS.
•AVOID REPEATED DEEP DISCHARGES. THIS PRACTICE WILL
CUT THE LIFE OF THE BATTERY SIGNIFICANTLY.
•AVOID OPERATING SLA BATTERIES AT ELEVATED AMBIENT
TEMPERATURES.
•BATT STAT INDICATOR - RED = NO BATTERY POWER,
YELLOW = 1 HOUR LEFT. CHARGE BATTERY OVERNIGHT
FOR BEST RESULTS.
Thank you for choosing the SW800 PA System from Am-
pliVox Portable Sound Systems.
We are excited in introducing this truly unique system. Our
system combines flexibility with functionality. Please refer to
this user guide as you enjoy the unique capabilities of an-
other quality product from AmpliVox Portable Sound Sys-
tems.
We encourage you to visit our website www.ampli.com to
register your product for its warranty coverage, sign up to
receive our newsletter, download our catalog, and learn
more about the complete line of AmpliVox audio visual
products, including portable PA systems, and lecterns.
AmpliVox • 650 Anthony Trail Suite D, Northbrook, IL 60062 • Phone: (800)267-5486 • Fax: (800)267-5489 www.ampli.com
User Guide
SW800 with Bluetooth
Battery Powered PA System

TABLE OF CONTENTS

GETTING STARTED/QUICK SETUP.................................... 3
CONTROLS / BACK PANEL .............................................. 4
AUDIO FUNCTIONS & ADJUSTMENT................................ 5
UHF WIRELESS BODYPACK .............................................. 5
WIRELESS HANDHELD MICROPHONE ............................. 6
BLUETOOTH MODULE ....................................................... 6
CD / MEDIA PLAYER ......................................................... 7
REMOTE CONTROL ...................................................... 8
WARRANTY ..................................................................... 10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW800 and is the answer not in the manual?

Questions and answers

Related Manuals for AmpliVox SW800

Summary of Contents for AmpliVox SW800

  • Page 1: Table Of Contents

    WARRANTY …………............10 more about the complete line of AmpliVox audio visual products, including portable PA systems, and lecterns. AmpliVox • 650 Anthony Trail Suite D, Northbrook, IL 60062 • Phone: (800)267-5486 • Fax: (800)267-5489 www.ampli.com...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Before using this product, read the instruction manual for important safety information. Please retain this manual for future reference and warranty information. Troubleshooting & Servicing Do not attempt to service or repair the device yourself. Refer all servicing to qualified service personnel. Do not at- tempt to modify the device in anyway.

  • Page 3: Getting Started/Quick Setup

    If you need further assistance, please call 1-800-267-5486, 8am-6pm M-F CST . PLEASE NOTE: THE REMOTE DOES NOT TURN THE UNIT ON OR OFF. YOU MUST DO THAT ON THE CONTROL PANEL SW800 SPECIFICATIONS Rated Power Output 100W RMS Microphone Input: 1/4" and Balanced Combo XLR / 1/4"...

  • Page 4: Controls / Back Panel

    Replace the fuse with a 10A/250V fuse if needed. power, HOWEVER the unit will charge faster with the power If after replacing fuse, the SW800 does not “power on”, please switch in the “off” position. call AmpliVox Customer Service at 800-267-5486.
  • Page 5 BASS: This control cuts or boosts the bass level. into the SW800 through the microphones or any of the accesso- ries. The listener will hear the original sound, plus the repeated TREBLE: This control cuts or boosts the treble level.
  • Page 6 “The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Amplivox Portable Sound Systems is under license. Other trade- marks and trade names are those of their respective owners.
  • Page 7 COMPACT DISC / MEDIA PLAYER OPERATION FUNCTIONS · HANDLING THE DISCS: Always insert a CD, CD-R, CD-R/W · POWER: Press Power button to turn CD Player on. This knob increases into player with label side up! Proper handling and care of CDs should be taken to insure proper operation.

  • Page 8: Remote Control

    REMOTE CONTROL The remote control for the SW800 is used only to operate the controls of the Media Player ONLY from the backside (control side). The remote control can be used up to 50 feet from player. Must be in direct line of sight for best results.

  • Page 9: Troubleshooting Guide

    AC outlet for several hours. After a · year or two the battery may need to be replaced. Batter- Check battery terminals ies are available from Amplivox. · Check Fuse in Power Receptacle. Replace if needed. ·...

  • Page 10: Warranty

    To obtain Warranty Service, contact AmpliVox (800-267-5486) to be assigned a Return Authorization number (RA#). After receiv- ing a RA#, the defective unit is to be returned to AmpliVox in either its original packaging or packaging affording an equal degree of protection.
