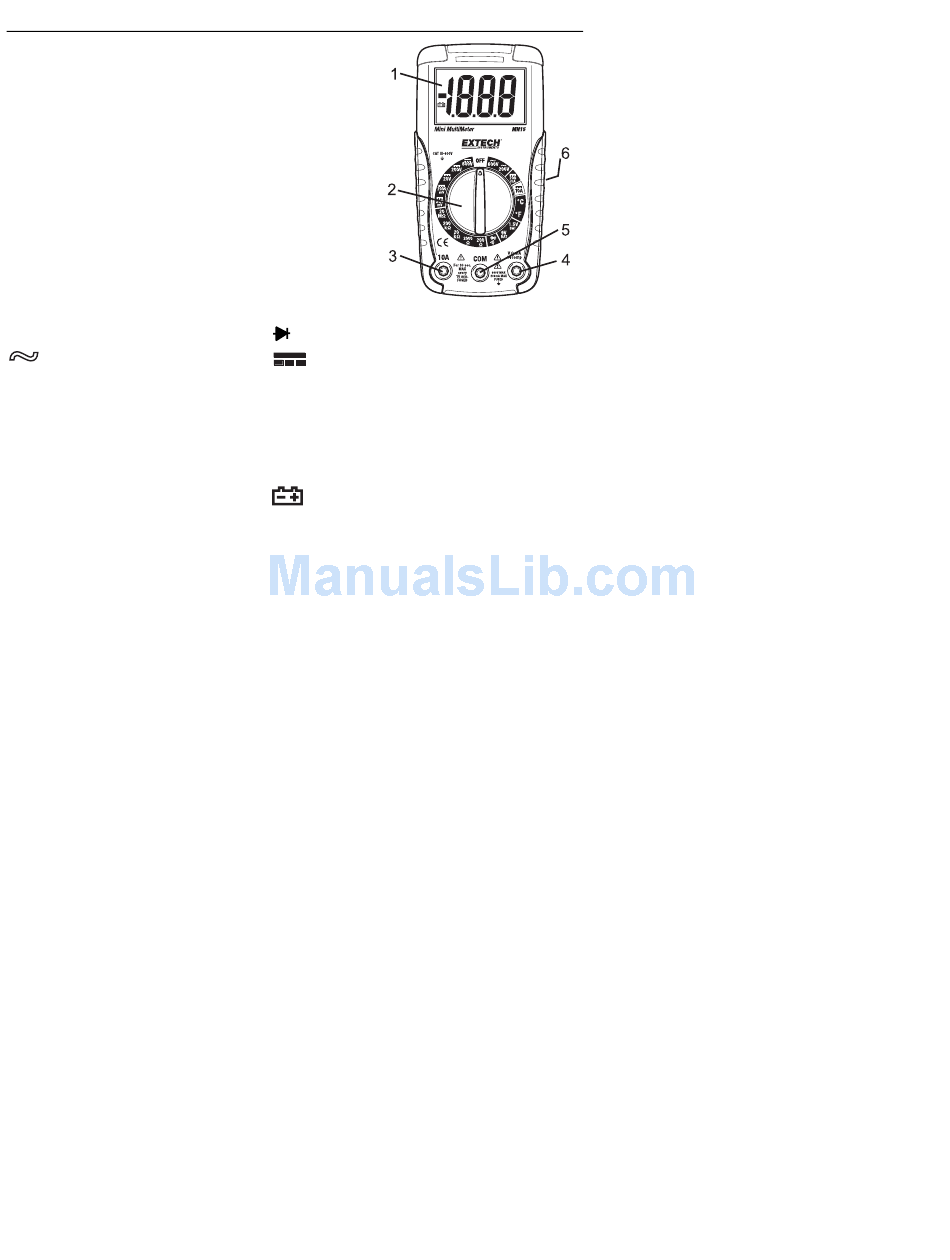

Controls and Jacks

1. LCD display
2. Rotary function switch
3. 10 ampere test lead jack
4. Test lead jack for voltage, milliamp,
resistance/continuity, diode and temperature functions
5. COM test lead jack
6. Battery compartment (rear)
SYMBOLS
•))) Continuity
AC
6
M megga (10 ) (ohms)
3
k kilo (10 ) (ohms)
A Amps
BAT Battery test
°F Degrees Fahrenheit
Diode
DC
-3
m milli (10 ) (volts, amps)
V Volts
Ω
Ohms
°C Degrees Celsius
Low battery indicator
