SAFETY INSTRUCTIONS

This meter has been designed for safe use, but must be operated with caution. The rules listed below
must be carefully followed for safe operation.
1. NEVER apply voltage or current to the meter that exceeds the specified maximum:
V DC or V AC
mA AC/DC
Resistance, Diode Test
2. USE EXTREME CAUTION when working with high voltages.
3. DO NOT measure voltage if the voltage on the "COM" input jack exceeds 500V above earth
ground.
4. NEVER connect the meter leads across a voltage source while the function switch is in the
current, resistance, or diode mode. Doing so can damage the meter.
5. ALWAYS discharge filter capacitors in power supplies and disconnect the power when making
resistance or diode tests.
6. ALWAYS turn off the power and disconnect the test leads before opening the covers to replace
the fuse or batteries.
7. NEVER operate the meter unless the back cover and the battery and fuse covers are in place
and fastened securely.
8. If the equipment is used in a manner not specified by the manufacturer, the protection provided
by the equipment may be impaired.

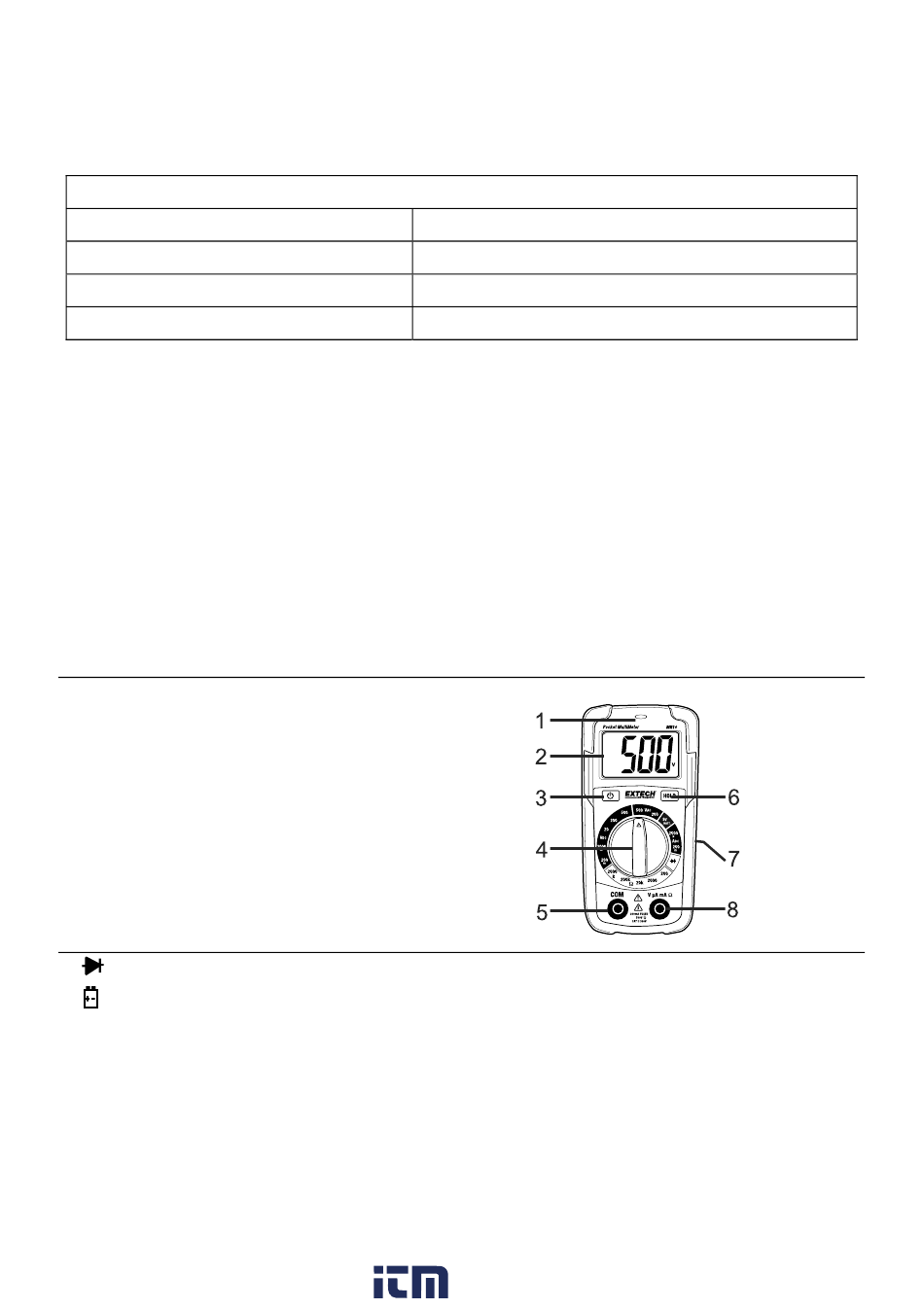

Controls and Jacks

1. NCV indicator lamp
2. LCD Display
3. Power button
4. Function switch
5. COM jack
6. Data Hold button
7. Battery compartment (rear)
8. Positive jack

Symbols and Annunciators

µ
m
A
k
800.561.8187
Function
Diode test
Low Battery
micro
milli
Amps
kilo
www.
Input Protection Limits
500VDC/AC
200mA AC/DC
500VDC/AC
Ω
V
A
AC
DC
3
.com
Maximum Input
Ohms
Volts
Amps
Alternating current
Direct current
