Summary of Contents for Extech Instruments MA200

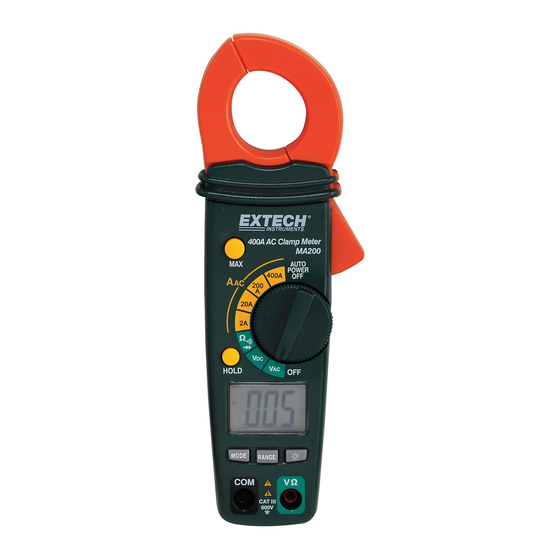

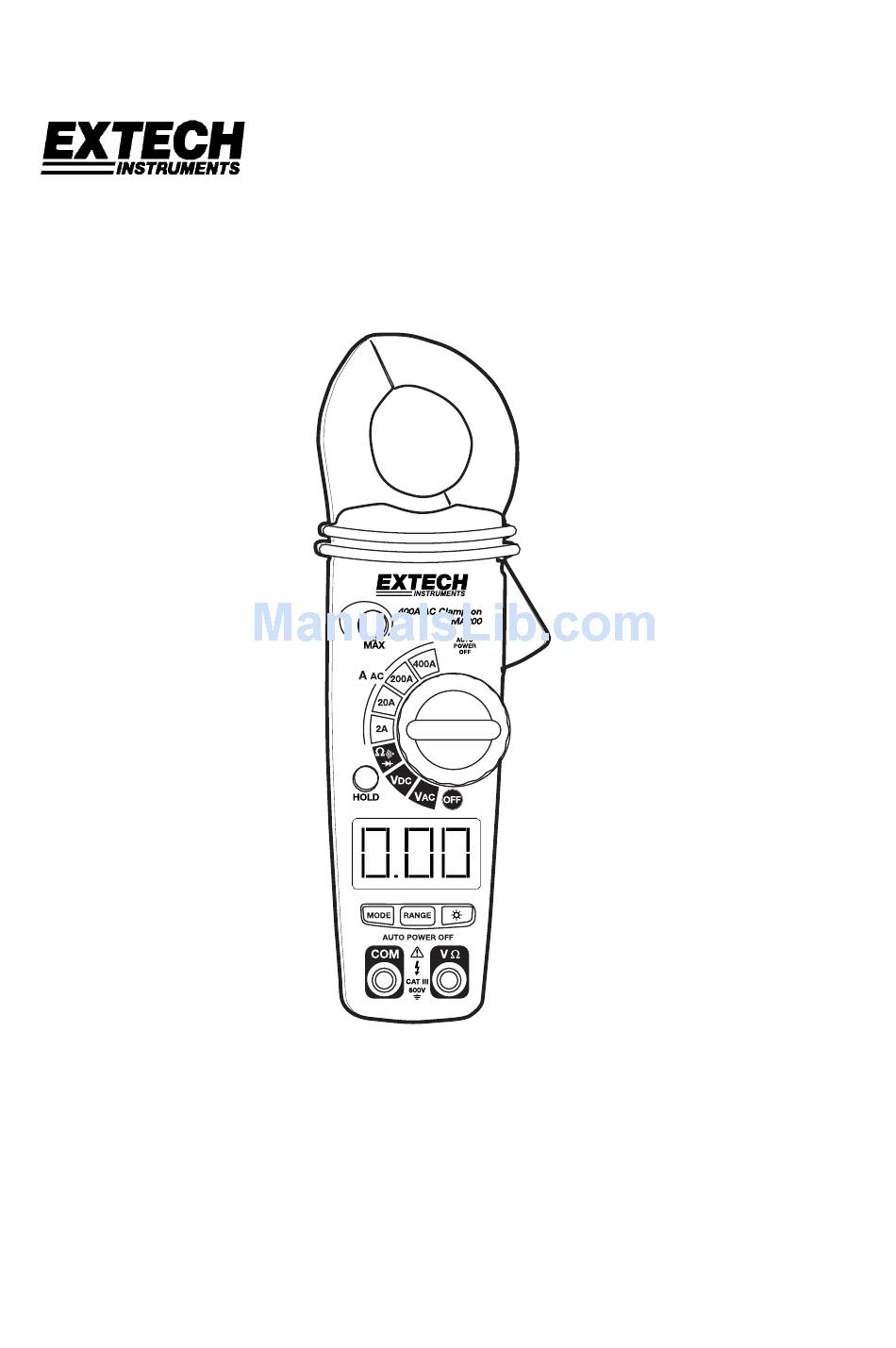

- Page 1 User’s Guide 400A AC Clamp Meter Model MA200...
-
Page 2: International Safety Symbols
Introduction Thank you for selecting the Extech MA200 AC Clamp Meter. This meter measures AC Current, AC/DC Voltage, Resistance, Diode Test, and Continuity. This professional meter, with proper care, will provide years of safe reliable service. Safety International Safety Symbols This symbol, adjacent to another symbol or terminal, indicates the user must refer to the manual for further information. -
Page 3: Specifications
(2) 1.5V AAA batteries Batteries 0.44lb (200g) Weight 7.87” x 1.97” x 1.38” (200x50x35mm) Size For indoor use and in accordance with the requirements for Safety double insulation to IEC1010-1 (1995): EN61010-1 (1995) Overvoltage Category III, Pollution Degree 2. MA200 Version 1.4 06/06... -
Page 4: Meter Description
Function select switch Voltage, Resistance Input Terminal Mode Select Button Backlight Button Range Select Button Alternating current Direct currrent) AutoRange mode AUTO MAX Hold mode Diode test mode Audible Continuity •))) Data Hold mode HOLD Low Battery icon MA200 Version 1.4 06/06... -
Page 5: Operation
(red lead to positive, black lead to negative) Read the voltage in the display. The display will indicate the proper decimal point and value. If the polarity is reversed, the display will show (-) minus before the value MA200 Version 1.4 06/06... - Page 6 4. Touch the test probe tips to the circuit or wire you wish to check. 5. If the resistance is less than approximately 30Ω, the audible signal will sound. If the circuit is open, the display will indicate “OL.”. MA200 Version 1.4 06/06...
- Page 7 LCD. The meter reading will not change as readings change, rather it will only display the highest reading encountered since the max hold button was pressed. Press the max hold button again to return to normal operation. MA200 Version 1.4 06/06...
-
Page 8: Maintenance
Re-assemble the meter Warranty EXTECH INSTRUMENTS CORPORATION warrants this instrument to be free of defects in parts and workmanship for one year from date of shipment (a six month limited warranty applies on sensors and cables). If it should become necessary to return the instrument for service during or beyond the warranty period, contact the Customer Service Department at (781) 890-7440 ext.
