PANEL DESCRIPTION

■ LED indicator

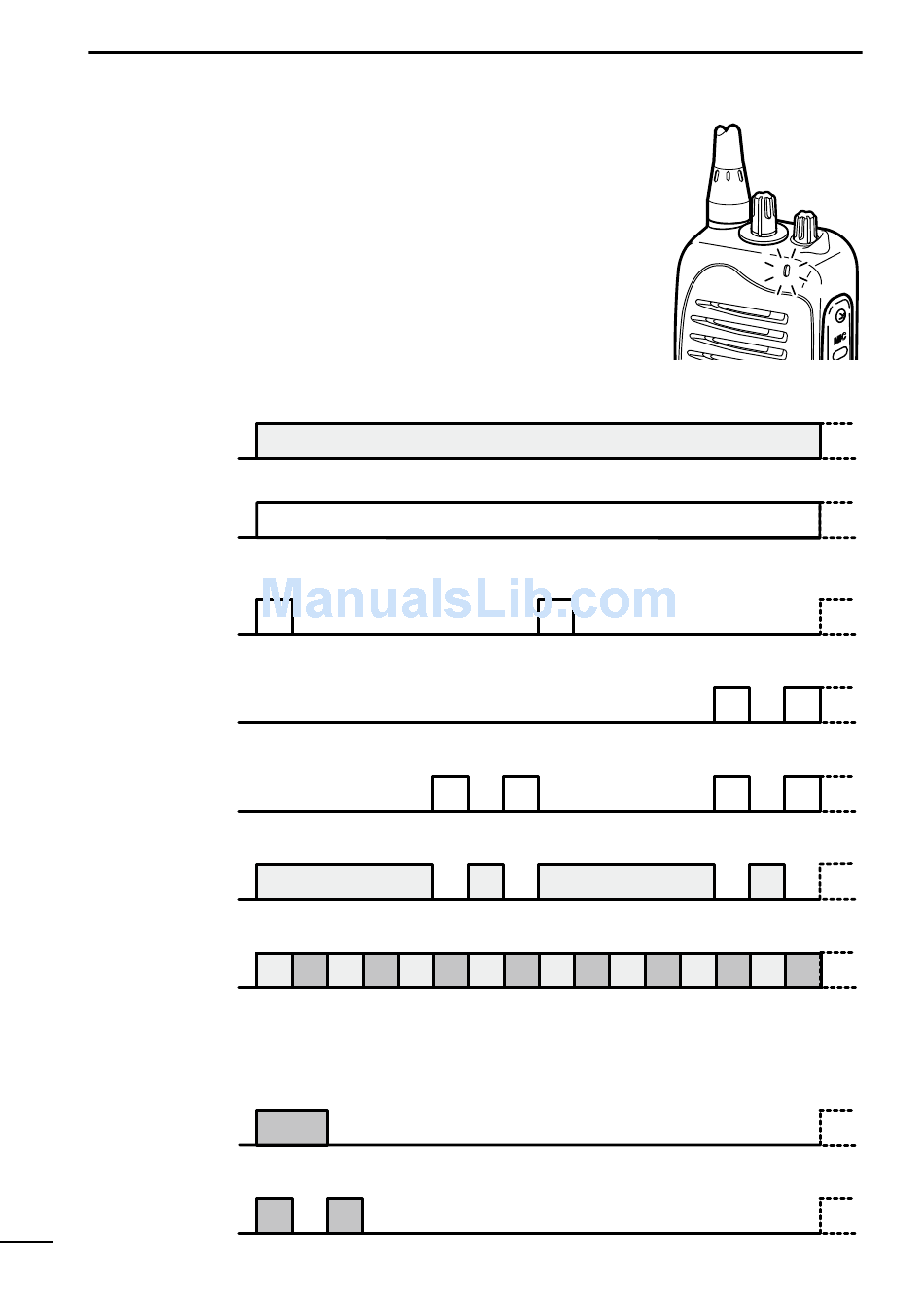

The LED indicator indicates several information
as follows;
(Ref.; R=Red, G=Green, O=Orange)
• TX: Turns Red while transmitting a signal.
• RX: Turns Green while receiving a signal.
• Fast/Slow scan: Blinks while Fast/Slow scan is activated.
c an
• Low BATT1: You should charge the battery. (blinks slowly)
BAT T1
• Low BATT2: You must charge the battery. (blinks fast)
B ATT2
• TX low BATT2: Low BATT2 was detected during TX mode.
w BAT T2
• CH error: Non-programmed channel is selected.
For IC-F3013/IC-F4013 only
• Call LED (ON): When receiving a matched 2/5-tone.
E D ON
• Call LED (Blink): When receiving a matched 2/5-tone.
E D B link
