User Set Mode - Icom IC-F5122D Instruction Manual

2
BASIC OPERATION

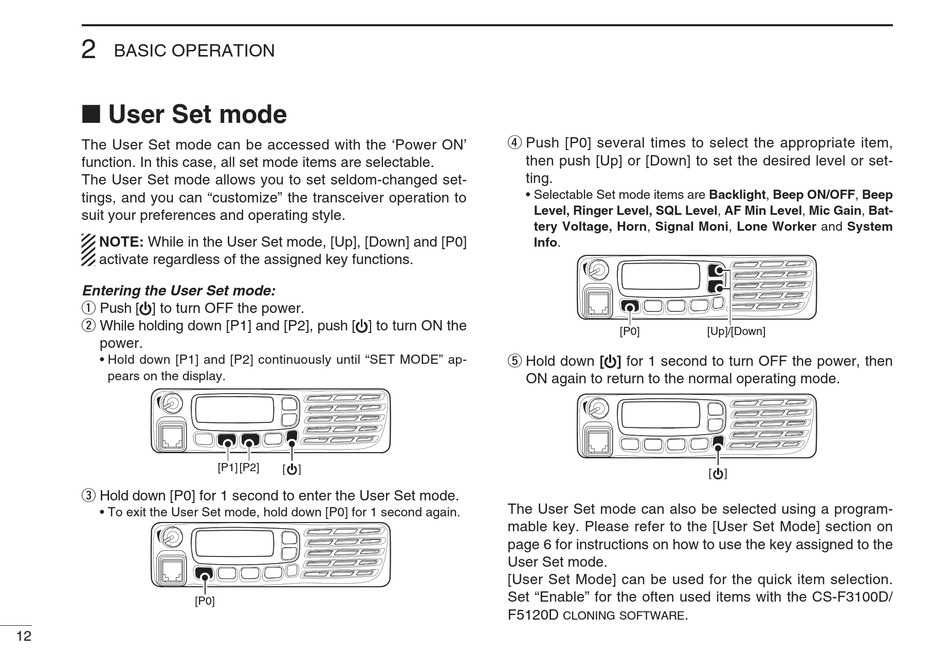

■ User Set mode

The User Set mode can be accessed with the 'Power ON'
function. In this case, all set mode items are selectable.
The User Set mode allows you to set seldom-changed set-
tings, and you can "customize" the transceiver operation to
suit your preferences and operating style.
NOTE: While in the User Set mode, [Up], [Down] and [P0]
activate regardless of the assigned key functions.
Entering the User Set mode:
q Push [ ] to turn OFF the power.
w While holding down [P1] and [P2], push [ ] to turn ON the
power.
• Hold down [P1] and [P2] continuously until "SET MODE" ap-
pears on the display.
e Hold down [P0] for 1 second to enter the User Set mode.
• To exit the User Set mode, hold down [P0] for 1 second again.
[P0]
12
[P1] [P2]
[ ]
r Push [P0] several times to select the appropriate item,
then push [Up] or [Down] to set the desired level or set-
ting.
• Selectable Set mode items are Backlight, Beep ON/OFF, Beep
Level, Ringer Level, SQL Level, AF Min Level, Mic Gain, Bat-
tery Voltage, Horn, Signal Moni, Lone Worker and System
Info.
[P0]
t Hold down [ ] for 1 second to turn OFF the power, then
ON again to return to the normal operating mode.
The User Set mode can also be selected using a program-
mable key. Please refer to the [User Set Mode] section on
page 6 for instructions on how to use the key assigned to the
User Set mode.
[User Set Mode] can be used for the quick item selection.
Set "Enable" for the often used items with the CS-F3100D/
F5120D .
cloning software
[Up]/[Down]
[ ]
