STEP 4 (See Diagram 4)
A.) Attach the Backrest Pad (#19) to the Vertical Frame (#16). Align the holes and secure it with
two M8 x 2 ½" Allen Bolts (#73) and
B.) Attach the Seat (#21) onto the top of Seat Support (#8). Align the holes and secure it with two
M8 x 1 ¾" Allen Bolts (#74) and
opening on the Lower Main Frame (#14). Insert a Lock Knob (#47) to secure the Post.
C.) Attach the Arm Curl Pad (#20) to the Arm Curl Stand (#9). Secure it with two M8 x 5/8" Allen
Bolts (#75) and
the Seat. Insert a Lock Knob (#47) to obtain the selected arm curl stand height.
3/4" Washers (#83). Insert the Seat Support (#8) into the
3/4" Washers (#83). Insert the Arm Curl Stand into the top opening in front of
3/4" Washers (#83).
7

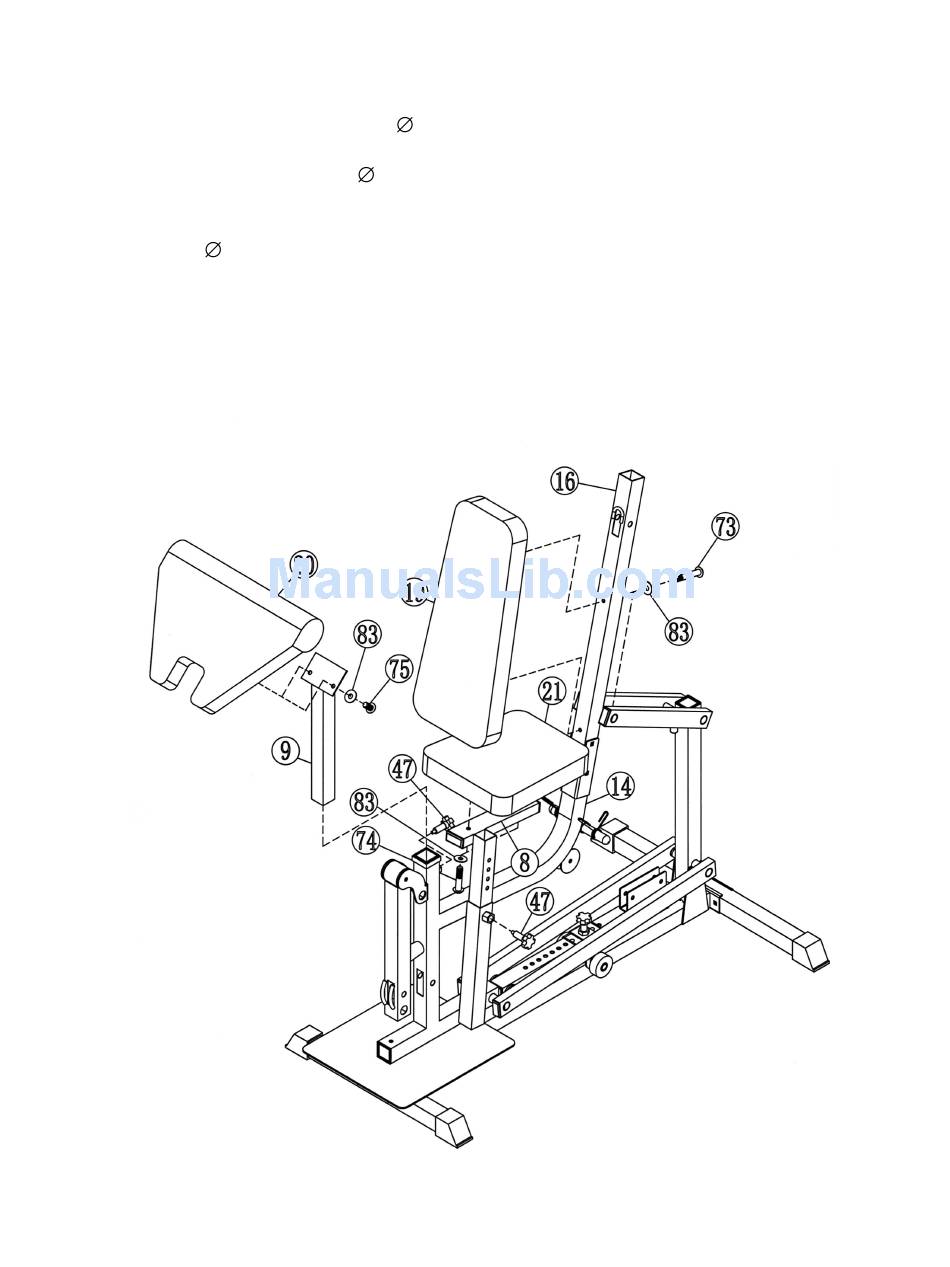

DIAGRAM 4
