ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches
NOTE: It is strongly recommended this machine to be assembled by two or more people to
avoid possible injury.
STEP 1 (See Diagram 1)
A.) Connect the Front Stabilizer (#2) to the front of Main Base Frame (#1). Secure it with two M10
x 2 3/4" Carriage Bolts (#69), one Bracket (#25), two
Aircraft Nuts (#77). Repeat the same step to connect Rear Stabilizer (#3) to the back of Main
Base Frame (#1).
B.) Place the Foot Platform (#4) underneath the base of Lower Main Frame (#14). Align the two
holes and secure them with two M10 x 2 ¾" Carriage Bolts (#69), Large Washers (#81), and
two M10 Aircraft Nuts (#77).
C.) Insert a Leg Developer Axle (#37) into the top opening on the Leg Developer (#10). Attach
the Leg Developer (#10) to the bracket on the Lower Main Frame (#14). Secure it with two
M10 x 5/8" Allen Bolts (#71) and
D.) Insert a Weight Holder (#87) through the hole on the Lower Main Frame (#14). Secure it with a
M6 x 5/8" Screw (#76). Attach two Spring Clips (#86) to the Weight Holder (#87).
7/8" Washers (#82).
4
7/8" Washers (#82), and two M10

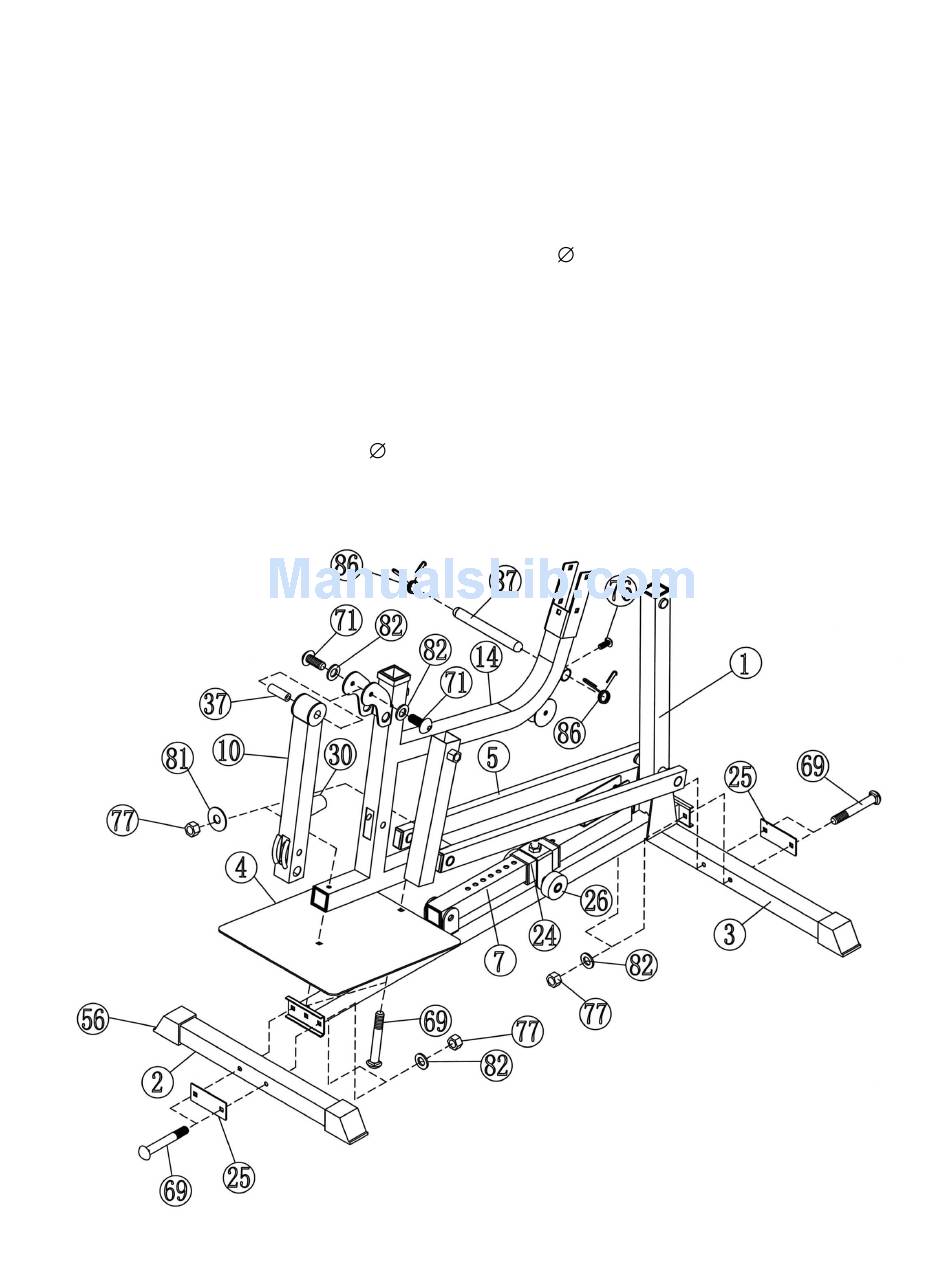

DIAGRAM 1
