Impex BF-6731A Owner's Manual

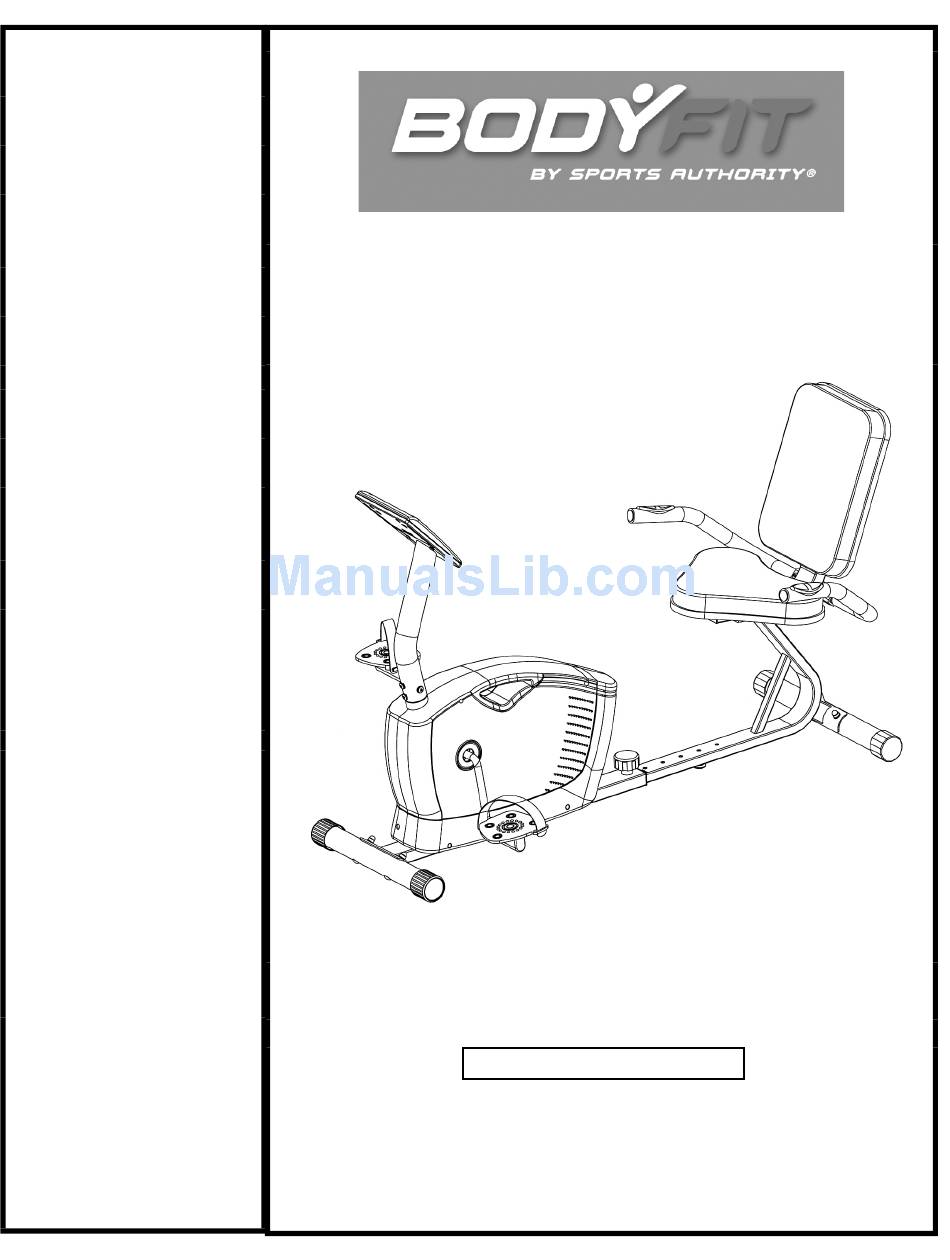

Impex BF-6731A Owner's Manual

Bodyfit deluxe recumbent bike
Hide thumbs

Advertisement

Quick Links

NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Pack
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
BF-6731A
Retain This
Manual for
Reference
07-08-09
OWNER'S
MANUAL
Deluxe Recumbent Bike
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
BF-6731A
®
IMPEX
INC.

Advertisement

loading
Need help?

Need help?

Do you have a question about the BF-6731A and is the answer not in the manual?

Questions and answers

Related Manuals for Impex BF-6731A

Summary of Contents for Impex BF-6731A

  • Page 1 NOTE: Please read all instructions carefully before using this product Table of Contents Deluxe Recumbent Bike Safety Notice BF-6731A Hardware Pack Assembly Instruction Parts List Warranty Ordering Parts Model BF-6731A Retain This Manual for Reference 07-08-09 ® IMPEX INC. OWNER'S 14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746...

  • Page 2: Table Of Contents

    BEFORE YOU BEGIN ® Thank you for selecting the BODY FIT Deluxe Recumbent Bike BF-6731A by IMPEX INC. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction.

  • Page 3: Important Safety Notices

    IMPORTANT SAFETY NOTICE PRECAUTIONS This exercise machine is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your machine. In particular, note the following safety precautions: 1.

  • Page 4: Warning Label Placement

    WARNING LABEL PLACEMENT The Warning Label shown here has been placed on the Rear Stabilizer. If the label is missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply the label in location shown.

  • Page 5: Hardware Pack

    HARDWARE PACK NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.

  • Page 6: Assembly Instructions

    ASSEMBLY INSTRUCTION NOTE: It is strongly recommended that two or more people assemble this machine to avoid possible injury. STEP 1 (See Diagram1) A.) Attach the Front Stabilizer (#25) to the Main Frame (#28). Secure it with two M8 x 2 3/8” Carriage Bolts (#26), two 5/8”...
  • Page 7 STEP 2 (See Diagram 2) A.) Note: Extra help may be needed when installing the computer wires in Front Post (#5). B.) Connect the Upper Computer Wire (#6) from the bottom of Front Post to the Lower Computer Wire (#7) from the main Fame. C.) Connect the Upper Pulse Sensor Wire (#2) from Front Post to the Lower Pulse Sensor Wire (#8) D.) Attach the Front Post to Main Frame.
  • Page 8 STEP 3 (See Diagram 3) A.) Attach the Sliding Seat Support (#49) to Rear Stabilizer (#50). B.) Secure them together with two M8 x 2 3/8” Carriage Bolts (#26), two Ø 5/8” Curved Washers (#9), and two M8 Acorn Nuts (#27). DIAGRAM 3...
  • Page 9 STEP 4 (See Diagram 4) A.) Attach the Seat (#59A) to the Seat Support Frame (#58). B.) Secure it with three M6 x ¾” Philips Screws (#56) and four Ø ½” Flat Washers (#57). DIAGRAM 4...
  • Page 10 STEP 5 (See Diagram 5) A.) Attach the Seat Support Frame (#58) to the Sliding Seat Support (#49). B.) Secure it them together with four M8 x ¾” Allen Bolts (#52) and Ø 5/8” Flat Washers (#53). DIAGRAM 5...
  • Page 11 STEP 6 (see Diagram 6) A.) Attach the Backrest Board (#59B) to the Seat Support Frame (#58). Secure it with four M6 x ¾ Philips Screws (#56) and four Ø ½” Flat Washers (#57). B.) Attach the Handle (#61) to the Seat Support Frame. Secure it with two M8 x ¾” Allen Bolts (#52), two Ø...
  • Page 12 STEP 7 (See Diagram 7) A.) Connect the Middle Pulse Sensor Wire (#47) to the Lower Pulse Sensor Wire (#8). B.) Slide the Sliding Seat Support (#49) into the Main Frame (#28). C.) Use the Lock Knob (#38) through the selected hole on Sliding Seat Support to lock the Seat in the desired exercise position.
  • Page 13 STEP 8 (See Diagram 8) A.) Remove four M5 x 3/8” Philips Screws (#4) from the Computer (#1). B.) Connect the Upper Computer Wire (#6) to the Computer. C.) Plug the Upper Pulse Sensor Wire (#2) into the computer. D.) Attach the Computer to the Front Post (#5). Secure it with the four M5 x 3/8” Philips Screws (#4).

  • Page 15: Parts List

    PARTS LIST KEY NO. DESCRIPTION Q’ty Computer Rear Stabilizer End Cap Upper Pulse Sensor Wire M8 x ¾” Allen Bolt Ø 3/8” Cap Ø 5/8” Flat Washer M5 x 3/8” Philips Screw Ø 5/8” Lock Washer Front Post Backrest Support End Cap Upper Computer Wire M6 x ¾”...

  • Page 16: Warranty

    ® IMPEX INC. LIMITED WARRANTY ® IMPEX Inc. ("IMPEX ") warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of two years on the Frame from the date of purchase. This warranty extends only to the original purchaser.
