Deluxe fan bike
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Pack
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
AIR-1
Retain This
Manual for
Reference
110415
ASSEMBLY &
OWNER'S
MANUAL
Deluxe Fan Bike
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
BFA-2800
®
IMPEX
INC.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sports Authority Bodyfit BFA-2800 and is the answer not in the manual?

Questions and answers

Related Manuals for Impex Sports Authority Bodyfit BFA-2800

Summary of Contents for Impex Sports Authority Bodyfit BFA-2800

  • Page 1 Hardware Pack Assembly Instruction Parts List Warranty Ordering Parts Model AIR-1 Retain This Manual for Reference 110415 ASSEMBLY & ® IMPEX INC. OWNER'S MANUAL 14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746 Tel: (800) 999-8899 Fax: (626) 961-9966 www.impex-fitness.com info@impex-fitness.com...

  • Page 2: Table Of Contents

    ORDERING PARTS..................….. BEFORE YOU BEGIN ® Thank you for selecting the BODY FIT Deluxe Fan Bike BFA-2800 by IMPEX INC. For your safety and benefit, read this manual carefully before using the bike. As a manufacturer, we are committed to provide you complete customer satisfaction. If you have any questions, or find there are missing or damaged parts, we guarantee you complete satisfaction through direct assistance from our factory.

  • Page 3: Important Safety Notices

    BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES RESPONSIBILITY PERSONAL INJURY PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

  • Page 4: Hardware Pack

    The Warning Labels and Caution Label shown here have been placed on the Rear Stabilizer, Main Frame. If the labels are missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply the labels in location shown. HARDWARE PACK COPY RIGHT © IMPEX INC.
  • Page 5 NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size. COPY RIGHT © IMPEX INC.
  • Page 6 COMPONENTS FOR ASSEMBLY COPY RIGHT © IMPEX INC.

  • Page 7: Assembly Instructions

    C.) Attach the Rear Stabilizer (#55) to the Main Frame. Secure it with four M8 x 5/8” Allen Bolts (#5), and four Ø 5/8” Washers (#6). D.) Securely tighten all Bolts. E.) Use the four Floor Level Adjustment Knobs (#38) to stabilize the Bike on floor. COPY RIGHT © IMPEX INC.
  • Page 8 A.) Connect the Upper Computer Wire (#2) from the Front Post to the Computer Wire from the Computer (#1). B.) Attach the Computer to the Front Post (#4). Secure it with four Computer Philips Screws (#3). STEP 3 COPY RIGHT © IMPEX INC.
  • Page 9 A.) Connect the Lower Computer Wire (#37) from Main Frame (#35) to the Upper Computer Wire (#2) from Front Post (#4). B.) Attach the Front Post to the Main Frame. Secure it with four M8 x 5/8” Allen Bolts (#5). COPY RIGHT © IMPEX INC.
  • Page 10 A.) Attach the pivot on Left Swing Handle (#30L) to the pivot on Main Frame (#35). B.) Thread the Swing Handle Shaft (#28) though Left Swing Handle into Main Frame, and firmly secure them together. COPY RIGHT © IMPEX INC.
  • Page 11 A.) Attach the Swing Handle Connecting Rod (#48) to the open bracket on the bottom of the Left Swing Handle (#30L). B.) Secure them together with one M8 x 1 ¾” Allen Bolt (#49) and one M8 Aircraft Nut (#50). COPY RIGHT © IMPEX INC.
  • Page 12 A.) Attach the pivot on Right Swing Handle (#30R) to the pivot on Main Frame (#35). B.) Thread the Swing Handle Shaft (#28) through Right Swing Handle into Main Frame, and firmly secure them together. STEP-7 COPY RIGHT © IMPEX INC.
  • Page 13 A.) Attach the Swing Handle Connecting Rod (#48) to the open bracket on bottom of the Right Swing Handle (#30R). B.) Secure them together with one M8 x 1 ¾” Allen Bolt (#49) and one M8 Aircraft Nut (#50). STEP-8 COPY RIGHT © IMPEX INC.
  • Page 14 A.) Thread the Left Pedal (#41L) counter clockwise into Left Crank (#44L). B.) Thread the Right Pedal (41R) clockwise into Right Crank (#44R). STEP-9 COPY RIGHT © IMPEX INC.
  • Page 15 Seat Pad (#31). B.) Attach the Seat Pad to the Seat Post (#34). Secure it with the three Ø 5/8” Seat Flat Washers (#32) and M8 Seat Aircraft Nut (#33) from the Seat Pad (#31). COPY RIGHT © IMPEX INC.
  • Page 16 STEP-10 A.) Insert the Seat Post (#34) into the opening one Main Frame (#35). B.) Thread the Lock Knob (#63) through the hole on Seat Post to securely hold it at desired height. COPY RIGHT © IMPEX INC.

  • Page 17: Exploded Diagram

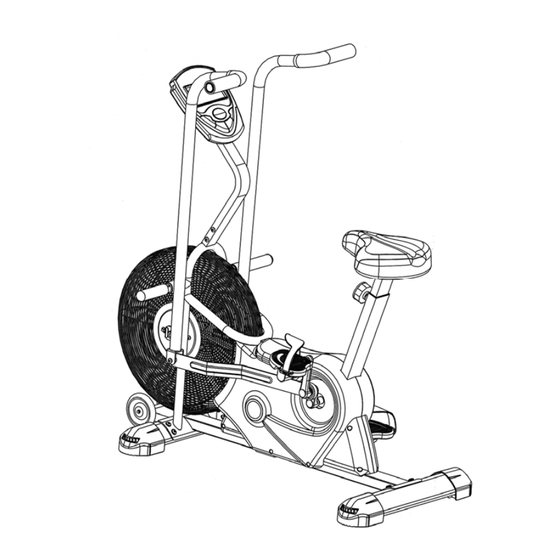

    EXPLODED DIAGRAM COPY RIGHT © IMPEX INC.

  • Page 18: Parts List

    Handle Bar Grip 4 ¾” Swing Handle Shaft Bearing 6903ZZ Left Swing Handle Right Swing Handle Seat Pad Seat Flat Washer Ø 5/8” Seat Aircraft Nut Seat Post Main Frame Computer Wire Connector Lower Computer Wire COPY RIGHT © IMPEX INC.
  • Page 19 Pan Head Tapping Screw ST4.2 x ¾” Left Shroud Lock Knob Sensor Holder Axle Lock Ring Ø ¾” Arc Washer Ø ¾” Bearing 6004ZZ Chain Plate Axle Crank Wheel Shroud Sleeve Right Shroud U-shaped Stopper Belt Locking Clip COPY RIGHT © IMPEX INC.

  • Page 20: Care, Maintenance And Storage

    Post, then release the Lock Knob and securely fasten the Knob to lock the Seat Post. The seat height adjustment is in approximately 1 ½” increment. TRANSPORT The Bike has a pair of transport Roller Wheels on Front Stabilizer. To move, carefully tilt and roll. COPY RIGHT © IMPEX INC.

  • Page 21: Computer

    6. When the batteries are removed, all the functional values will reset to zero. Note: Please note all values on this computer are approximate and they are for comparison purpose only. Do not use these values for any medical or rehabilitation purpose. COPY RIGHT © IMPEX INC.

  • Page 22: Warranty

    IMPEX. IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or whatsoever natures.
