Installation:
Open box and remove contents. Check to make sure that the following parts are
included within kit:
Qty Description
2 12"x 26" Seat Heater Pad
1 Wire Harness Assembly
1 Switch Assembly
4 Black Tape Strips
4 Gold Tape Strips
1 Red T-Tap Connector
1 Blue T-Tap Connector
1 Yellow T-Tap Connector
2 Male Spade Connector
10 Wire Ties
Seat Cushion:
1. Prior to removing seat from vehicle, lay heating pads on seat to verify size & fit.
2. Secure car on a level surface.
3. Disconnect the negative battery cable or make sure that the area to be worked within is
grounded. If you have any doubt concerning the layout of the vehicle wire harness, consult
the wiring diagram provided by the manufacturer.
4. Remove seat from vehicle and place on a suitable work table/area.
Note: Make certain to disconnect all wire connectors prior to removing seat from
vehicle.
5. Disassemble seat as needed to gain access to seat cushion cover attachment clips.

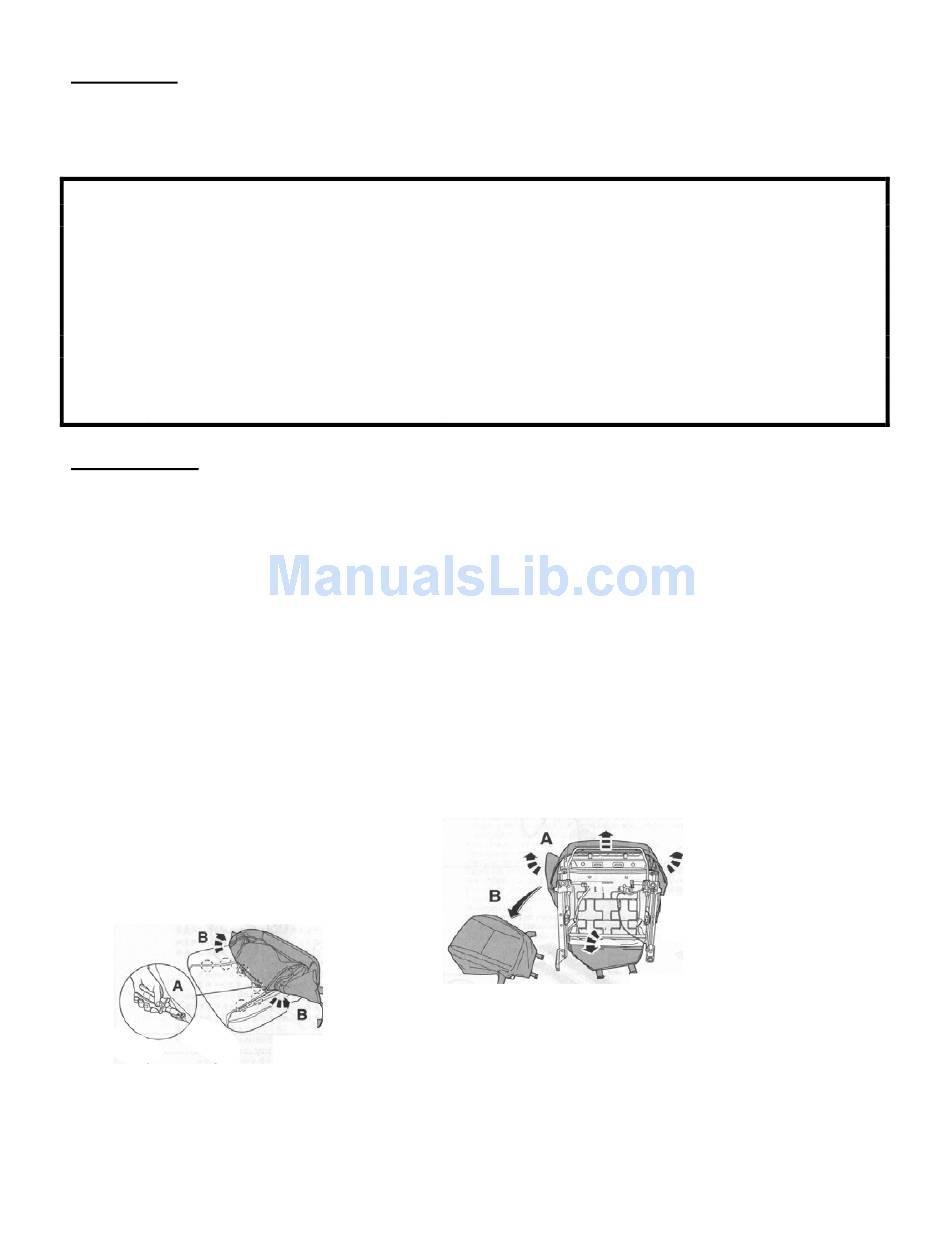

6. Unsnap j-clips and or remove
"hog ring" clips and peel
back cover. See Fig 1 & 2
Part Number
30-0108-MW
30-4200004
30-0213-MW
30-0110-MW
30-0109-MW
88-2300003
88-167000-TT
88-2300002
88-167000-MS
88-8880001
Fig 2 Note: If trim cover has hook and loop
style tie down, care must be taken
when removing cover.
Page 4 of 20
Fig 1
