CARBONTECH™ Seat Heater
INSTALLATION INSTRUCTIONS
AND
OWNER'S MANUAL
SINGLE SEAT APPLICATION
With two 12" x 26" Heating Pads
(HI/LO/OFF Round illuminated Switch)
P/N 300202-MWA
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Webasto CARBONTECH
Summary of Contents for Webasto CARBONTECH

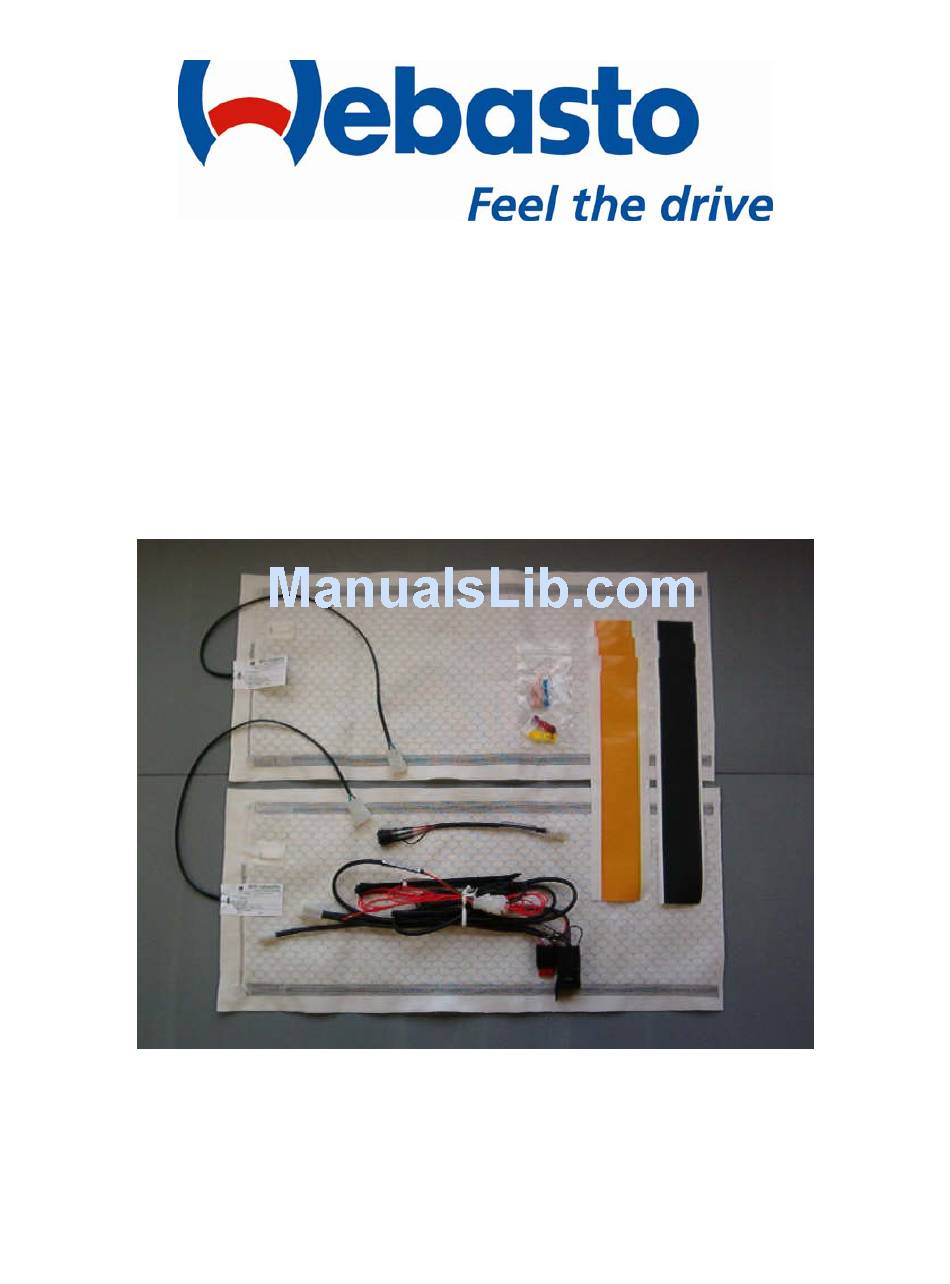

- Page 1 Presents CARBONTECH™ Seat Heater INSTALLATION INSTRUCTIONS OWNER’S MANUAL SINGLE SEAT APPLICATION With two 12” x 26” Heating Pads (HI/LO/OFF Round illuminated Switch) P/N 300202-MWA...
- Page 3 9. Installation of a CARBONTECH™ seat heater system with seats containing seam lines running front to rear (length wise) is not permitted. Only exception is if the heating pads are not directly located over the groove/s.
- Page 4 Installation: Open box and remove contents. Check to make sure that the following parts are included within kit: Description Part Number 12”x 26” Seat Heater Pad 30-0108-MW Wire Harness Assembly 30-4200004 Switch Assembly 30-0213-MW Black Tape Strips 30-0110-MW Gold Tape Strips 30-0109-MW Red T-Tap Connector 88-2300003...
- Page 5 7. Measure the width of the center seat area between the longitudinal seams. Note: The width must be at least 250 mm (10 in). The heating pad CANNOT contact the side seams of the seat. If it does make contact, the seat heater cannot be installed.
- Page 6 11. Reposition heating pad onto cushion foam. Make sure thermostat is in the correct location. (see step 9) Using the supplied gold double sided tape, attach the back edge of the heating pad to the cushion foam. With the pad attached at the rear, determine the final length. Note: Make sure that the length difference between the cushion pad and back rest pad is not more than 275 mm (10-3/4 in).
- Page 7 Seat Heater Pad Wire Harness Routing/Attachment: 1. Route wires from cushion & back to underside of seat. Use supplied wire ties to fasten harness to seat. Warning: Make sure attachment locations will NOT interfere with any seat movement. Seat Heater Switch: 1.
- Page 8 4. Install seat mounting fasteners and torque to manufacturers recommended specifications. 5. Re-connect the negative battery cable and test function the seat heater system. 6. Re-check all systems and accessories where components were removed or relocated during the installation process. 7.
- Page 9 Troubleshooting: If system does not heat up or no indication of power. - Check fuse in seat heater harness and vehicle. - Temperature of seat may be above the preset thermostat temperature and will not allow it to come on. (i.e.: sun shining on seat) - If the light on the heated seat switch does not come on, it could be that the switch bulb is burnt out (replace switch) or that there is no power to the switch.
- Page 10 Relay Switch Connector 4-Pin / White 10A Fuse Switched Ignition Fig 9 Ground Source CARBONTECH™ Seat Heater Specification (290mm) Heater Pads: Size 645 x 290mm Thickness 1.3mm Heating Power 0.050 Watt/sq. cm @ 13.8 Volts Total Heating Power 71 Watts @ 13.8 Volts Electrical Resistance 2.67 Ohm +/- 10%...
- Page 11 Status: 2 Color LED, Green for Low Red for High Content per Kit Approvals for CARBONTECH™ Whole System: TÜV approved for European ECM Standard 72/245/EWG Version 95/54/Eg and for use in cars with side airbags in seats. Page 11 of 20...
- Page 12 ACTIVline, a recognized German seat heater supplier to the global OEM market, exclusively for MWW Automotive. The MWW Automotive CARBONTECH™ system is a derivative of the certified and proven OEM system designed for the North American OEM/aftermarket applications. The system can be installed in almost all type cars, trucks, SUV’s and commercial vehicles.
- Page 13 Warranty Instructions and Procedures CARBONTECH™ carries a one year limited warranty beginning from the date of installation. The warranty covers proven fabrication and materials deficiencies. Not covered in the warranty are damages resulting from: Improper handling of components and seat heater systems.
-
Page 14: Notice To Users
Notice to Users The seat heater is designed to control the temperature of the lower and upper seat segment of the front seats. Proper temperature control of the vehicle seat increase the driver‘s comfort and enhances basic health. The seat heater operates in two power levels and can only be engaged with the ignition turned on. - Page 15 Features – Functions – Benefits The CARBONTECH™ Seat Heater system is made from the highest quality carbon fiber material. Higher density of carbon fiber mesh produces approx. 7% higher heating capacity and ramp-up times over other competitive products. Patented solution of a Teflon™ encapsulated side channel for added protection and durability.
- Page 16 Warranty Instructions and Procedures Webasto Product Inc. carries a one year limited warranty beginning from the date of installation. The warranty covers proven fabrication and materials deficiencies. covered in the warranty are damages resulting from: Improper handling of components and seat heater systems.
-
Page 17: Safety Advice
Safety Advice Do not place any heavy, sharp or pointed objects on the seats. Any fluid spilled on the seats may destroy the seat heater and may cause damage to the vehicle. Never operate the seat heater while the seats are wet or soaked with fluid. - Page 18 NOTES:...
- Page 19 NOTES:...
- Page 20 Webas to Product N.A., Inc. 15083 North Road Fenton, MI 48430 Technical Assistance Hotline USA: (800) 860-7866 Canada (800) 667-8900 www.webasto.us www.techwebasto.com...
