Intergraph Intense 3D Pro 1000 Installation Manual page 24

20
VGA Input

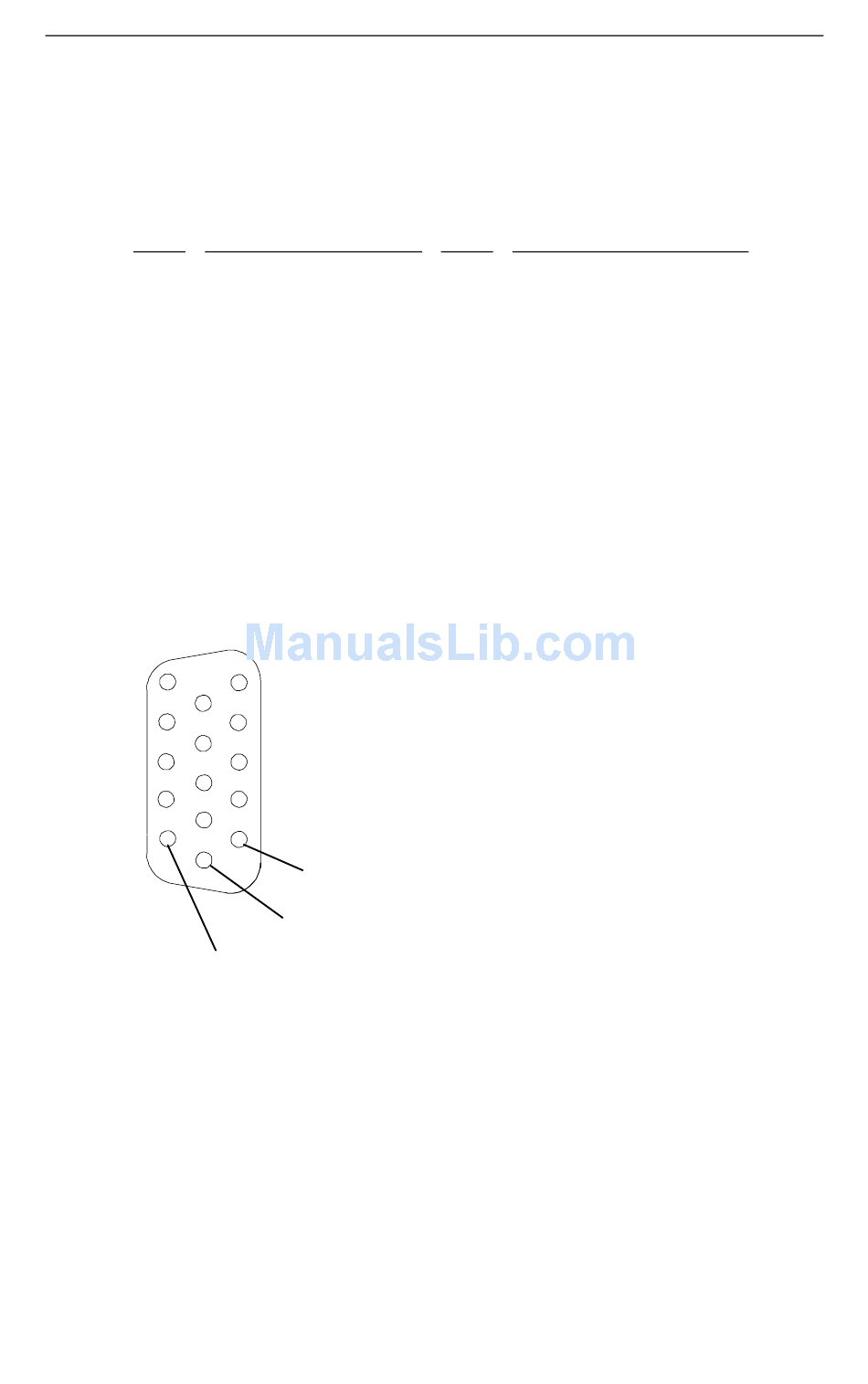

The VGA input port is a black, female, 15-pin, D-Sub connector. The
port allows connection of a VGA device for the sysetm to use in VGA
graphics mode.
Pin Signal Name
1 Red Analog Video
2 Green Analog Video
3 Blue Analog Video
4 Monitor ID (bit 2)
5 Cable Sense *
6 Ground
7 Ground
8 Ground
* Must be on video cable for board to sense cable's presence
** Bi-directional Data (SDA) for DDC
*** Data Clock (SCL) for DDC
Stereo Sync Output
The stereo sync output port is a female, 5-pin, mini-DIN connector.
The port provides connection to the emitter module of a pair of LCD
shutter glasses.
1
6
11
Pin Signal Name
9 No Connect
10 Ground
11 Monitor ID (bit 0)
12 Monitor ID (bit 1) **
13 Horizontal Sync
14 Vertical Sync
15 Monitor ID (bit 3) ***
