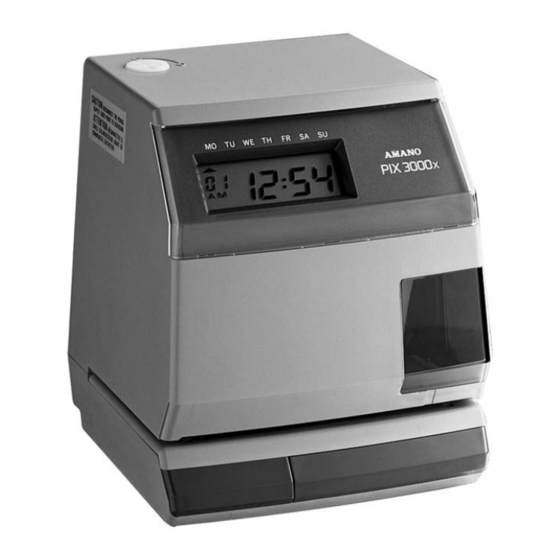

Amano PIX-3000x Operation Manual

Electronic time recorder
Hide thumbs Also See for PIX-3000x:
Table of Contents

Advertisement

Quick Links

See also: Manual
PIX-3000x
Electronic Time Recorder
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIX-3000x and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amano PIX-3000x

Summary of Contents for Amano PIX-3000x

  • Page 1 PIX-3000x Electronic Time Recorder Operation Manual...

  • Page 2: Proprietary Notice

    We recommend that this document be read in its entirety before any attempt is made to operate the equipment. For more information about Amano’s complete line of products, visit our web site at: www.amano.com...

  • Page 3: Table Of Contents

    Changing the Date and Time..........18 Year, Month, and Date ............18 Hour and Minute (Time) ............ 19 Automatic Numbering ............20 Initial Number Set.............. 20 Number Step Interval (Repeat Value)........21 Symbol-Signal Program Mode ..........22 PIX-3000x Operations Manual...
  • Page 4 Resetting All Data to Default Values ........28 Chapter 3: Maintenance............29 Error Messages................ 29 Colon Status ................. 29 Messages ................29 Extending the Ribbon Life ............30 Checking the Number of Prints ..........30 Replacing the Ribbon............... 31 Removal................31 Installation................31 PIX-3000x Operations Manual...

  • Page 5: Chapter 1: Introduction

    Chapter 1: Introduction External View Components • Key • This Manual PIX-3000x Operations Manual...

  • Page 6: Removing The Cover

    Removing the Cover Insert and turn the key clockwise to remove the cover. Removing the Packing Material Lift up the Printer Block (A) and remove the Packaging Spacer (B). PIX-3000x Operations Manual...

  • Page 7: Connecting The Battery

    Note: To avoid damaging the power reserve battery, or draining it to an unrecoverable level, keep the machine plugged into an AC power source during normal operation. The power reserve battery is used for limited power outages, not as a power source during normal operations. PIX-3000x Operations Manual...

  • Page 8: Wall Mounting

    4. Align the PIX with the hooks on the mounting plate. Press the PIX down and toward the wall until a "CLICK" is heard. Replace the cover, lock it and remove the key. Your PIX-3000x is now mounted. PIX-3000x Operations Manual...

  • Page 9: Your First Printout

    Once you have verified these items, insert a sheet of paper to make a test print. As shipped from the factory, the PIX-3000x will print the following format: If this format is acceptable, the print style does not have to be changed.

  • Page 10: Print Media

    This selector will move the Paper Sensor forward or backward on the Printer Platen and determine how much of a margin there is between the imprint and the edge of the print media. The margin can be adjusted to a maximum of 30 mm (1.2"). PIX-3000x Operations Manual...

  • Page 11: Print Methods

    Print Switch Only (S.): This setting will allow you to print manually regardless of print margin setting by inserting media into the PIX and pressing the Print Bar. Warning!: Printing when no media is present may cause  damage to the print head. PIX-3000x Operations Manual...

  • Page 12: Specifications

    The built-in battery, when fully charged, will maintain normal operations for 62 hours or 400 prints, or maintain time and date for seven days. Environment: • Indoor use only • Dust free • Not in direct sunlight PIX-3000x Operations Manual...

  • Page 13: Chapter 2: Programming Introduction

    The Standard mode limits your Print Style to preset time/date formats. The Advanced mode allows you to access the programming features of the PIX-3000x through the LCD display. In this mode, you can change the date and time, manually adjust for Daylight Saving Time, and automatically number the imprint.

  • Page 14: Front Panel Description

    Programming in both the Standard and Advanced modes is done through the Front Panel, which is accessed by removing the cover. The Front Panel of the PIX-3000x consists of the following: Mode Indicator On when in Program mode. Off when in Normal mode.

  • Page 15: Standard Program Mode

    The Standard mode of programming consists of setting the DIP Switches on the top of the time clock to a corresponding preset Print Style. The PIX-3000x is shipped from the factory with DIP Switch #1 set to ON and all other DIP Switches set to OFF.

  • Page 16: Two Digit Year Printing Via Dip Switch Settings

    Two Digit Year Printing via DIP Switch Settings Setting the corresponding DIP Switches can print the following time and date formats: Four Digit Year Printing via DIP Switch Settings The following time and date formats are fixed and non-adjustable: PIX-3000x Operations Manual...

  • Page 17: Switching The Order Of Month, Date, And Year

    Possible to set up at 0 mm - 30 mm (0" - 1.2"). Dimension C: Requires 60 mm (2.4") or more when dimension A is less than 45 mm (1.8"). Dimension D: Refer to the DIP Switch Settings Length. PIX-3000x Operations Manual...

  • Page 18: Types Of Hours

    Hours can be displayed on the clock and printed in 12 or 24-hour format. The PIX-3000x is shipped from the Factory with DIP Switch #10 set to OFF. This will display and print the time in 12-hour format. Setting this switch to the ON position will display and print the time in 24-hour format.

  • Page 19: Advanced Program Mode

    Advanced Program Mode The Advanced Program mode enables you to access the programming features of the PIX-3000x through the LCD display. In this mode, you can change the date and time, adjust for Daylight Saving Time, and Auto Number the imprint.

  • Page 20: Manual Daylight Saving Time Adjustment

    Manual Daylight Saving Time Adjustment The PIX-3000x has a “ONE HOUR ADJUST” mode, which enables you to manually adjust the display for Daylight Saving Time. This adjustment will immediately subtract or add one hour to the time in the display and is accomplished by entering in the appropriate code when the display is in the “ONE HOUR ADJUST”...

  • Page 21: Automatic Daylight Saving Time Adjustment

    Automatic Daylight Saving Time Adjustment The PIX-3000x can be programmed to adjust for Daylight Saving Time automatically. To do so, you must specify the dates that the Daylight Saving Time period will begin and end. The hour will be added at 2:00 AM on the Begin Date and be subtracted at 2:00 AM on the End Date.

  • Page 22: Changing The Date And Time

    ENTER. 6. The entire display will begin flashing. If the year, month and date are correct, press ENTER. If not, press the CHANGE button and return to Step #3. PIX-3000x Operations Manual...

  • Page 23: Hour And Minute (Time)

    4. The minutes will start flashing. Press the CHANGE button until the correct minutes appear in the display, then press ENTER. 5. The entire display will begin flashing. If correct, press ENTER. If not, press the CHANGE button and return to Step #3. PIX-3000x Operations Manual...

  • Page 24: Automatic Numbering

    Automatic Numbering Initial Number Set The PIX-3000x can automatically add a sequential number to each printout. The Initial Number Set defines the number at which the automatic numbering will begin. 1. After entering the program mode, move the cursor under “INITIAL NUMBER SET".

  • Page 25: Number Step Interval (Repeat Value)

    "1" is entered, the number programmed in "INITIAL NUMBER SET" will increment after each print. If a value greater than “1” is entered, the PIX-3000x will print the automatic number by the amount specified before incrementing to the next number. For example, a value of “3”...

  • Page 26: Symbol-Signal Program Mode

    The SY-1 and SY-2 program areas are standard features. The remaining program areas are for use with the optional Master/Slave Signal PCB Kit. If your unit is equipped with this option, please refer to the PIX-3000x Options Manual. Symbol 1 program area. Press ENTER to begin creating Print SY-l Styles using the codes from the Character Table.

  • Page 27: Custom Print Styles

    Custom Print Styles Depending on your specific application, it may be necessary for you to be able to identify each location that a PIX-3000x resides. For example, a location code may be required to precede the date and time stamp.
  • Page 28 “En” end code appears, and then press the ENTER button. 6. Press the PROGRAM button to enter the string into memory and exit the programming mode. 7. Insert a piece of paper to test the character string entered. PIX-3000x Operations Manual...

  • Page 29: Printing Symbols

    Printing Symbols The following diagram represents the types of output available when certain features of the PIX-3000x are utilized. The Two Digit Year/Date/Time, and Month/Date/Time print outs are the default Standard mode outputs, and may be substituted with date/time format programmed in Standard mode.

  • Page 30: Character Table

    (eight dots for the character and two dots for the space) or 11 cpi. c. YEAR, MONTH, DATE, DAY and TIME formats are each one program code and may have larger lengths and percentages. (Table continued on next page) PIX-3000x Operations Manual...

  • Page 31: Removing Symbols

    Removing Symbols A symbol is removed by re-entering the programming mode of the symbol and entering in the “En” (End) code as its first code. PIX-3000x Operations Manual...

  • Page 32: Resetting All Data To Default Values

    Resetting All Data to Default Values In the event the PIX-3000x needs to be reprogrammed, or errors are made during the initial programming, it may be necessary to reset all program areas back to the factory default. To do this: 1.

  • Page 33: Chapter 3: Maintenance

    Chapter 3: Maintenance To prevent damage to the PIX-3000x, it is recommended to only use paper type media. Special care should be taken to avoid inserting paper with staples, paper clips, or other fastening devices directly under the print frame as damage can occur. Care should also be taken when inserting paper and removing paper from the PIX.

  • Page 34: Extending The Ribbon Life

    Extending the Ribbon Life The PIX-3000x has a ribbon life extender lever, which will prolong the use of the ribbon until it can be replaced. To activate: 1. Remove the cover. 2. Grasp lever "A" and pull until the ribbon moves outward.

  • Page 35: Replacing The Ribbon

    1. Insert the top of the ribbon first. 2. Swing the lower portion of the ribbon into position. 3. Turn the knob on the ribbon two or three times to reduce any slack in the ribbon. 4. Replace the cover. PIX-3000x Operations Manual...
  • Page 36 PIX-3000x Operations Manual...
  • Page 40 AJR-187601 Copyright © 2005 Amano Cincinnati, Inc. Printed in USA 5/05/0...
