Summary of Contents for Billion BiPAC 7800NXL

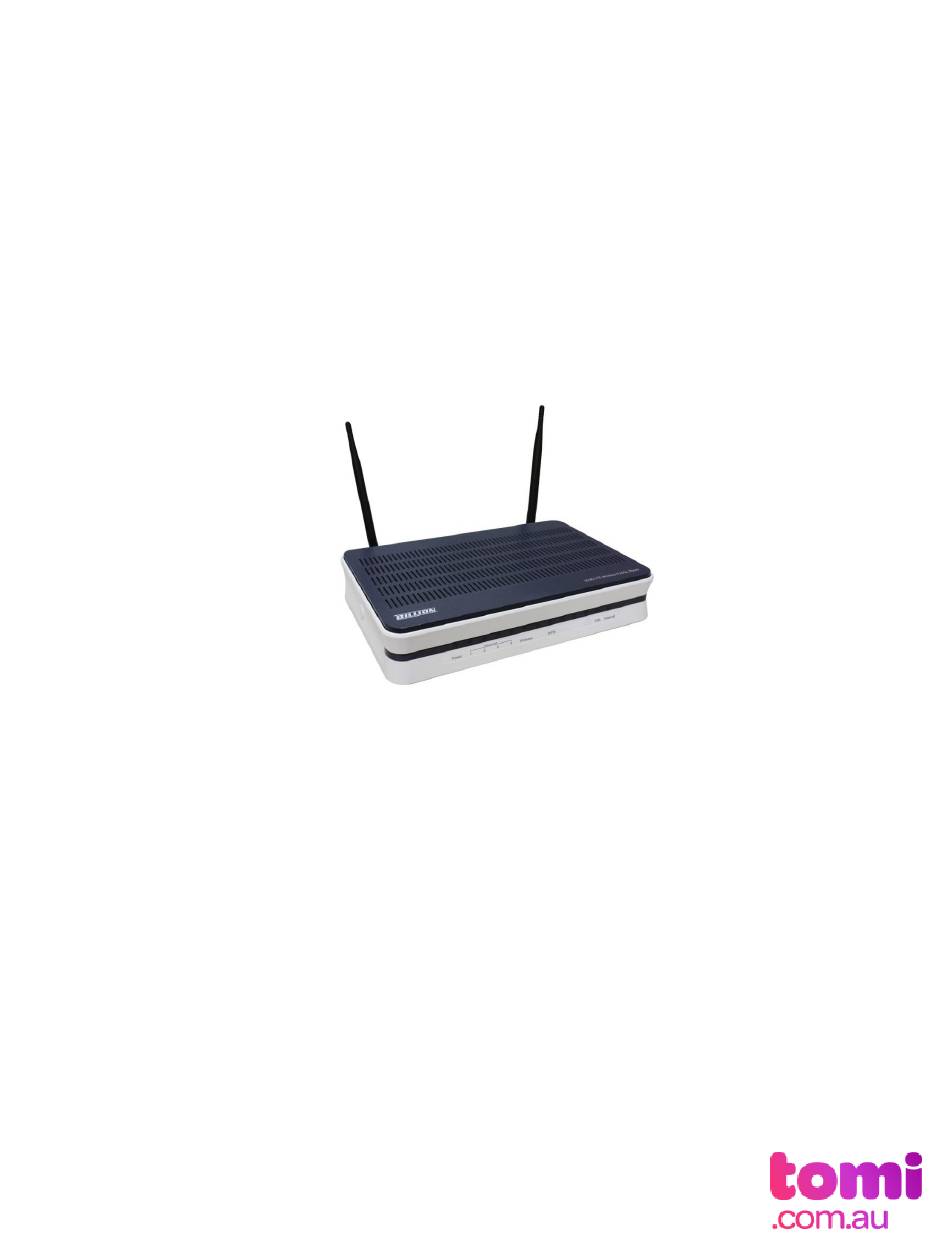

  • Page 1 Billion BiPAC 7800NXL Setup Guide...
  • Page 2 Modem reference & light status sheet On the front of your modem you will notice a number of lights. The below table explains what each of these lights mean: LABEL ACTION DESCRIPTION Solid Green Device has connected to the Internet [1] Internet Blinking Green Data flow...

  • Page 3: Getting Started

    3. Ethernet network adapter 4. Wireless enabled computer (if you are using the wireless feature) Connecting the Billion BiPAC 7800NXL to your computer Connect the network cable to one of the yellow ports located at the back of the modem; the other end will connect to your computer 2.
  • Page 4 Note: If you have already connected via Wi-Fi you will see the below icon instead. Connecting filters This filter is used when you need to plug a telephone and the modem in the same telephone wall socket. There are three ports on the central filter as follows: ...

  • Page 5: Configuring Your Modem

    2. Configuring your modem Logging in to your modem Open your web browser (typically Internet Explorer/Chrome/Firefox/Safari) and in the address bar enter the details:  http://192.168.1.254 2. You will be asked for a Username and Password. Enter the following login details: Username admin...
  • Page 6 Configuring your ADSL modem to access the Internet Once you have logged into your modem, the Billion home page will appear as shown below. Click on the Quick Start tab on the left hand side to begin the setup 2. Ensure following settings are set: ...
  • Page 7 3. Keep the option Manually selected for work type, as show below 4. Enter the Username and Password provided to you, and click on Continue 5. Please wait while the device is being configured 6. Once the settings have been successfully configured, you will now receive a message to configure your wireless connection...
  • Page 8 7. To configure the wireless connection, ensure the following settings are entered:  Wireless check box is ticked to Enable  SSID is named (this will be any name you wish to give to your Wireless Network. By default this is set to wlan-ap) ...
  • Page 9 10. Please wait while the modem is restarting. This can take a few minutes so please be patient. The following page will appear while the modem is updating your details 11. Once connected the Internet, the modem light will turn on and flash to indicate there is Internet traffic.
  • Page 10 3. Connecting the Billion 7800NXL to your devices using wireless In the previous section you have configured the wireless connection for your modem. Please use your Wi-Fi Network Name (SSID) and Pre Shared Key (Password) to connect to any wireless compatible devices you have.
  • Page 11 4. Once connected it will indicate that you are now connected to wlan-ap or your chosen Wi-Fi Network Name (SSID) 5. Repeat steps 1-3 to add other wireless devices such as laptops, tablets, and smart phones...
