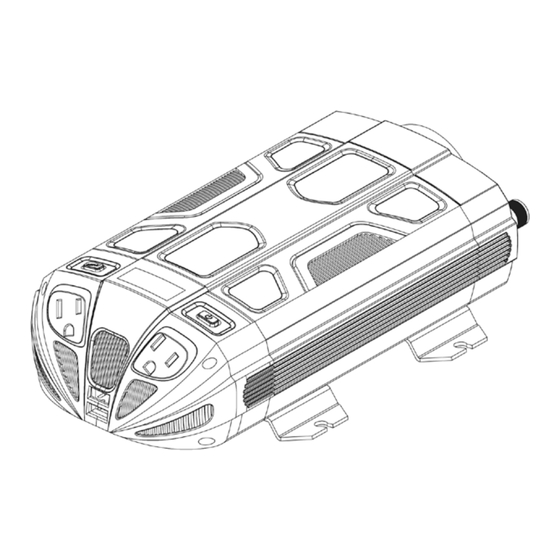

Summary of Contents for Energizer EN1100
-
Page 2: Warnings, Cautions, And Notes
12 volt, deep-cycle batteries such as those used for marine, golf cart, and fork-lift or from other high current 12 volt sources. This model, EN900 / EN1100, has been performance tested by MET and complies with Underwriter’s Laboratories and Canadian Standards Association safety standards. -
Page 3: Appliance Cautions
The unit will shut down if the internal temperature gets too hot. Restart the inverter after it cools. • ® This Energizer inverter will only operate from a 12V power source. Do not attempt to connect the inverter to any other power source, including any AC power source. -
Page 4: Getting Started
appliance. If the appliance label states that the charger or adapter produces a low-voltage DC or AC output (30 volts or less), there will be no problem powering that charger or adapter. • Some fans with synchronous motors may slightly increase in speed (RPM) when powered by the inverter. - Page 5 Multiply: AC AMPS X 110 (AC voltage) = WATTS This formula yields a close approximation of the continuous load of your appliance. Multiply: WATTS X 2 = Starting Load for most appliances This formula yields a close approximation of the starting load of most appliances.
-
Page 6: Lcd Diagram
Front Panel EN900 / EN1100 A. LCD Digital Display (See LCD Diagram Below). B. ON / OFF Switch. Turns the inverter circuits ON and OFF. C. Display Selector Switch. D. Two standard North American AC outlets, each rated at 15 Amps (1650 Watts). - Page 7 J. Ground Terminal. Determining the DC Power Requirements Powering multiple appliances from the high-power EN900 / EN1100 inverter requires a 12 volt bank of batteries (several batteries). To calculate the approximate power in amps a 12 volt battery bank has to supply you need to know the current, or amps required for powering the continuous AC load.
-
Page 8: Sizing The Battery Bank
Sizing the Battery Bank To determine the minimum battery bank ampere-hour rating that you will need to operate appliances from the inverter, and any DC appliances powered by the battery bank, follow these steps: 1. List the maximum wattage that the inverter has to provide (as above). -
Page 9: Cable Gauges
Failure to make correct polarity ( Pos, Neg ) connection between the inverter and the battery bank can result in blowing fuses in the inverter and can permanently damage the inverter. Damage caused ® by reversed polarity is not covered under the Energizer warranty. -
Page 10: Mounting The Inverter
Operating the inverter without correctly grounding the unit may result in electrical shock. Mounting the Inverter ® Your Energizer Inverter should not be mounted under the hood of a vehicle. If installing in a vehicle, choose a dry, cool, ventilated area closest to the battery as practical. -
Page 11: Operation
12 volt battery bank. Television and Audio Suggestions ® Although all Energizer inverters are shielded and filtered to minimize signal interference, some interference with your television picture may be unavoidable, especially in weak signal areas. - Page 12 STAGE 2: The inverter then converts the high voltage DC into 110v AC (household current), using advanced MOSFET transistor in a full bridge ® configuration. This design provides this Energizer inverter with the capability to start and run difficult reactive loads, while providing excellent overload capability.
-
Page 13: Troubleshooting
Best use of Battery Power Make sure any appliances are energy efficient and turned off after use. Use Compact Florescent Lamps. Wherever possible, charge with Solar Panels or Wind Generators. Do not allow lead acid batteries to remain discharged for long periods of time, they lose capacity (amp hours). Disposal / Recycling of Inverter / California Proposition 65 Electronic products are known to contain materials that are toxic if improperly disposed. - Page 14 PROBLEM: Low Battery Alarm on all the Time Reason Solution Input voltage below 10.5 Keep input voltage above 10.5 Volts. Will be indicated on Volts to maintain regulation. LCD panel. Poor or weak battery Recharge or replace battery. condition. Inadequate power being Use lower gauge (heavier) delivered to the inverter or cable.
- Page 15 Specifications: EN900 Specifications Description Output Continuous Watts (W) 900 W +10W（USB） Surge Capacity (Peak Power) 1800 W Rated Input DC (V,A) 12VDC , 85A Input Voltage Range 10.5 to 15.5 VDC （60Hz±1） Rated Frequency (Hz) Rated Output AC (V,A) 6.7A(105-125) Rates Output USB (V,A) 2 * 5V/max.
- Page 16 Specifications: EN1100 Specifications Description Output Continuous Watts (W) 1100 W +10W（USB） Surge Capacity (Peak Power) 2200 W Rated Input DC (V,A) 12VDC , 118A Input Voltage Range 10.5 to 15.5 VDC （60Hz±1） Rated Frequency (Hz) Rated Output AC (V,A) , 12.5A(105-125) Rates Output USB (V,A) 2 * 5V/max.
- Page 17 What does this warranty cover? This Limited Warranty is provided by PowerBright and covers defects in workmanship and materials in your EN900 / EN1100. This warranty period lasts for 12 months from the date of purchase at the point of sale to you, the original end user customer.
- Page 18 Warning: Limitations On Use Please refer to your product manual for limitations on uses of the product. SPECIFICALLY, PLEASE NOTE THAT THE EN900 / EN1100 SHOULD NOT BE USED IN CONNECTION WITH LIFE SUPPORT SYSTEMS OR OTHER MEDICAL EQUIPMENT OR DEVICES.
-
Page 19: Return Material Authorization Policy
WITHOUT LIMITING THE GENERALITY OF THE FOREGOING, POWERBRIGHT MAKES NO REPRESENTATIONS OR WARRANTIES REGARDING THE USE OF THE ENERGIZER EN900 / EN1100 IN CONNECTION WITH LIFE SUPPORT SYSTEMS OR OTHER MEDICAL EQUIPMENT OR DEVICES. Return Material Authorization Policy Before returning a product directly to PowerBright you must obtain a Return Material Authorization (RMA) number and the correct factory "Ship To"...
