WARNING:
This Unit employs Components that tend to produce arcs or sparks – To
prevent fire or explosion, do not install in compartments containing
batteries or flammable materials - SHOCK HAZARD. DO NOT OPEN.
CAUTION:
OUTPUT NON-SINUSOIDAL REFER TO MANUAL - Provided with integral
protection against overloads. To prevent fire, do not cover or obstruct
ventilation openings. Do not mount in Zero-Clearance compartment.
Overheating may result.
Notice :
The output of this device is not sinusoidal. It has a total harmonic distortion
of 30% percent and maximum single harmonic of 8 percent
Toll Free: 1 866.295.6775
www.energizerpower.com
Printed in China

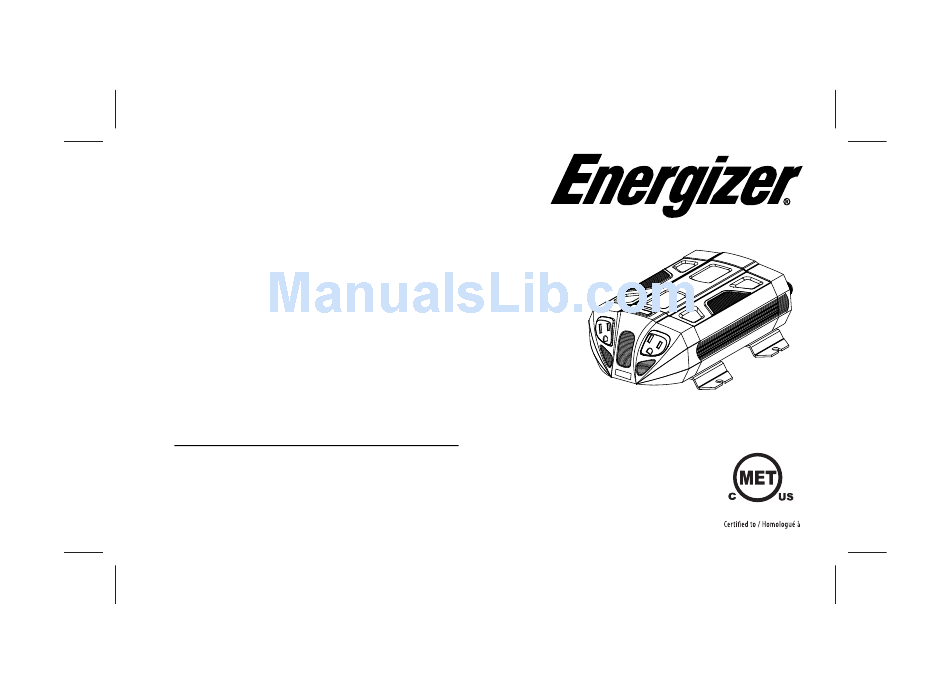

EN500
Owner's Guide
Conforms to / Conforme à UL std. 458,
CSA std. C22.2 No. 107.1

Advertisement

Table of Contents
loading

Related Manuals for Energizer EN500

Summary of Contents for Energizer EN500

  • Page 1 Overheating may result. Notice : The output of this device is not sinusoidal. It has a total harmonic distortion of 30% percent and maximum single harmonic of 8 percent EN500 Toll Free: 1 866.295.6775 Owner's Guide www.energizerpower.com Conforms to / Conforme à UL std. 458, Printed in China CSA std.

  • Page 2: Important Safety Information

    1. Introduction Thank you for purchasing the Energizer ® EN500 Connected to the 12 volt outlet in your vehicle, the EN500 efficiently and reliably powers a wide variety of loads through both the AC outlet and USB port. Read this guide before connecting or using the EN500 and save it for future reference.

  • Page 3: Warnings And Cautions

    Warnings and Cautions EN500 housing may become uncomfortably warm, reaching 140° F (60° C) under extended high power operation. During operation, keep it away from materials that may be affected by high temperatures. EN500 Do not use the in the presence of flammable fumes or gases, such as in the bilge of a gasoline powered boat, or near propane tanks.
  • Page 4 CAUTION: Risk of Fire. Do not replace any vehicle fuse with a rating higher than recommended by the Vehicle Manufacturer. Ensure that the electrical system in your vehicle can supply this product without causing the vehicle fusing to open. Information on the vehicle fuse rating is typically found in the vehicle operator’s manual.
  • Page 5 CAUTION: Output non-sinusoidal Some chargers for small nickel-cadmium batteries EN500 can be damaged if connected to the Do not use the inverter with the following appliances: • Small battery-operated appliances like rechargeable flashlights, some rechargeable shavers, and night lights that are plugged directly into an AC receptacle to recharge.

  • Page 6: Additional Safety Guidelines

    Additional Safety Guidelines • Do not insert foreign objects in the outlets or other openings. EN500 • Never connect the inverter to power utility AC distribution wiring. • Do not use the in temperatures EN500 over 100° F (40° C).

  • Page 7: Inverter Features

    4. Inverter Features EN500 Front Back ON/OFF Power Button Cooling Ground Terminal USB port Remote 2.1 Amp Control Receptacle AC Outlets Connectors...

  • Page 8: Using The Inverter

    5. Using the Inverter EN500 Through its AC outlet, the is capable of powering most 120V AC products that use 500W or less. The EN500 can also power or charge most consumer electronics that have USB power ports. EN500 AC output waveform, called “modified sine wave”...
  • Page 9 Plug a DC cable into the DC cable port on the EN500 and connect to a 12V cigarette lighter receptacle. Plug the device you want to operate into the EN500 When the inverter is not in use, unplug it from the 12V outlet to prevent slight discharge of the battery.

  • Page 10: Inverter Operation

    Operating Guidelines • As the battery is used, its voltage begins to fall. When the EN500 senses that the voltage at its DC input has dropped to 10.5V, the inverter automatically shuts down and the light glows RED, indicating a fault. This prevents the battery from being damaged.
  • Page 11 • If an AC product rated higher than 500 W is plugged into the EN500 , the inverter will shut down. The LED light will alternate from GREEN to RED continuously. •...

  • Page 12: Battery Operating Time

    The EN500 can operate while the engine is running, but the normal voltage drop that occurs during starting of the engine may trigger the...

  • Page 13: Interference With Electronic Equipment

    Buzzing sound in audio systems and radios Some inexpensive stereo systems and AM-FM radios have inadequate internal power supply filtering and will “buzz” slightly when powered by the EN500 Generally, the only solution is an audio product with a higher quality filter.

  • Page 14: Troubleshooting

    7. Troubleshooting PROBLEM: AC product will not operate, no inverter lights are Possible cause Solution Battery is defective. Check battery and replace if required. Loose connections. Check connections. PROBLEM: Measured inverter output is too low. Possible cause Solution Standard “average- Inverter’s “modi ed sine reading”...
  • Page 15 Possible cause Solution Battery voltage is too low. Recharge battery. PROBLEM: AC product will not operate, RED FAULT light ON. Possible cause Solution AC product(s) connected Use a product with a power are rated at more than the rating less than the inverter’s inverter’s continuous continuous power rating.

  • Page 16: Specifications

    8. Specifications Specifications: EN500 Specifications Description 500 W +10W（USB） Output Continuous Watts (W) 1000 W Surge Capacity (Peak Power) Rated Input DC (V,A) 12VDC, , 54A 10.5 to 15.5 VDC Input Voltage Range 60 Hz±1 Rated Frequency (Hz) 4.17A(105-125) Rated Output AC (V,A) 2 * 5V/max.
  • Page 17 Specifications: EN500 (continued) Specifications Description Modifed Sine Wave Output Wave Form 65°C Max Max. Touch Temperature 0° to 40°C Operating Temperature 5 to 95% Operating/Storage Humidity RH Fan Cooling over temperature Cooling System 0.65 Min Power Factor <250mV Ripple & Noise(Peak to Peak) 9.06 x 5.39 x 2.64...

  • Page 18: Warranty And Return

    This Limited Warranty is provided by PowerBright and covers defects in workmanship and materials in your EN500. This warranty period lasts for 24 months from the date of purchase at the point of sale to you, the original end user customer. You are required to have proofof purchase tomake warranty claims.
  • Page 19 shipment to the customer, whichever is greater. All replaced products and all parts removed from repaired products become the property of PowerBright. PowerBright covers both parts and labor necessary to repair the product, and return shipment to the customer via a PowerBright selected non-expedited surface freight within the contiguous United States and Canada.
  • Page 20 What does this warranty not cover? This Limited Warranty does not cover normal wear and tear of the product or costs related to the removal, installation, or troubleshooting of the customer's electrical systems. This warranty does not apply to, and PowerBright will not be responsible for, any defect in or damage to: the product if it has been misused, neglected, improp- erly installed, physically damaged or altered, either...
  • Page 21 SHOULD NOT BE USED IN CONNECTION WITH LIFE SUPPORT SYSTEMS OR OTHER MEDICAL EQUIPMENT OR DEVICES. WITHOUT LIMITING THE GENERALITY OF THE FOREGOING, POWERBRIGHT MAKES NO REPRESENTATIONS OR WARRANTIES EN500 REGARDING THE USE OF THE ENERGIZER IN CONNECTION WITH LIFE SUPPORT SYSTEMS OR OTHER MEDICAL EQUIPMENT OR DEVICES.

  • Page 22: Return Material Authorization Policy

    Return Material Authorization Policy Before returning a product directly to PowerBright you must obtain a Return Material Authorization (RMA) number and the correct factory "Ship To" address. Products must also be shipped prepaid. Product shipments will be refused and returned at your expense if they are unauthorized, returned without an RMA number clearly marked on the outside of the shipping box, if they are shipped...

  • Page 23: Return Procedure

    Return Procedure Package the unit safely, preferably using the original box and packing materials. Please ensure that your product is shipped fully insured in the original packaging or equivalent. This warranty will not apply where the product is damaged due to improper packaging.
