WARNING:
This Unit employs Components that tend to produce arcs or sparks – To
prevent fire or explosion, do not install in compartments containing
batteries or flammable materials - SHOCK HAZARD. DO NOT OPEN.
CAUTION:
OUTPUT NON-SINUSOIDAL REFER TO MANUAL - Provided with
integral protection against overloads. To prevent fire, do not cover or
obstruct ventilation openings. Do not mount in Zero-Clearance
compartment. Overheating may result.
Notice :
The output of this device is not sinusoidal. It has a total harmonic
distortion of 30% and maximum single harmonic of 8%
© 2020 Energizer.
Energizer and certain graphic designs are trademarks of
Energizer Brands, LLC and related subsidiaries and are used under license by
Bright Manufacturing, LLC. All other brand names are trademarks of their
respective owners. Neither Bright Manufacturing, LLC nor Energizer Brands,
LLC is affiliated with the respective owners of their trademarks.
Energizerpower.com
Printed in China
ENA548
Owner's Guide
Advertisement
Table of Contents
Related Manuals for Energizer ENA548
Summary of Contents for Energizer ENA548
- Page 1 30% and maximum single harmonic of 8% © 2020 Energizer. Energizer and certain graphic designs are trademarks of Energizer Brands, LLC and related subsidiaries and are used under license by Bright Manufacturing, LLC. All other brand names are trademarks of their ENA548 respective owners.
-
Page 2: Important Safety Information
AC outlets and USB port. Read this guide before connecting or using the ENA548 and save it for future reference. We hope you enjoy using your ENA548 and if you require any assistance, please contact our help desk: energizerpower.com/au 2. - Page 3 During operation, keep away from materials that may be affected by high temperatures. Do not use the ENA548 in the presence of flammable fumes or gases, such as in the bilge of a gasoline powered boat, or near propane tanks. Do not use the ENA548 in an enclosure containing automotive-type lead-acid batteries.
- Page 4 CAUTION: Risk of Fire. Do not replace any vehicle fuse with a rating higher than recommended by the Vehicle Manufacturer. Ensure that the electrical system in your vehicle can supply this product without causing the vehicle fusing to open. Information on the vehicle fuse rating is typically found in the vehicle operator’s manual.
- Page 5 CAUTION Do not connect live AC power to the ENA548 AC outlets. This will damage the inverter, and the damage is not covered by warranty. Do not connect any AC load which has its neutral...
-
Page 6: Additional Safety Guidelines
ENA548 outlets or other openings. • Never connect the inverter to power utility AC distribution wiring. • Do not use the ENA548 in temperatures over 40° C. • Do not expose the ENA548 to water, rain, snow, or spray. Failure to follow these safety guidelines may cause personal injury and/or damage to the ENA548 It may also void your product warranty. -
Page 7: Inverter Features

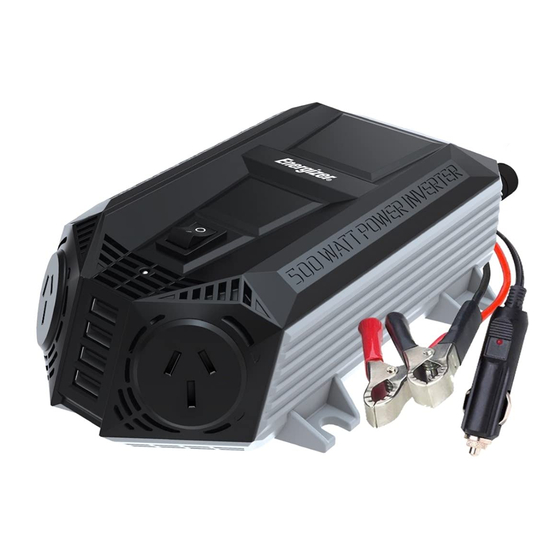

4. Inverter Features ENA548 Front Back LED Light ON/OFF Power Button Cooling USB port 2.4 Amp Connectors AC Outlets... -
Page 8: Using The Inverter
5. Using the Inverter Through its AC outlet, the ENA548 is capable of powering most 240V AC devices that consume 500W or less. The ENA548 can also power or charge most consumer electronics that have USB power ports. The ENA548 AC output waveform, called “modified sine wave”... - Page 9 1. Connect the DC cable port on the ENA548 and connect to a 12V cigarette lighter receptacle. 2. Plug the device you want to operate into the ENA548 3. When the inverter is not in use, unplug it from the 12V outlet to prevent slight discharge of the battery.
-
Page 10: Inverter Operation
Operating Guidelines • As the battery depletes, the voltage will start falling. When the ENA548 senses that the input DC voltage has dropped to 10.5V, the inverter automatically shuts down and the light will turn RED, indicating a fault. This prevents the battery from being damaged. - Page 11 Vehicle batteries are designed to provide brief periods of very high current needed for engine starting. They are not intended for constant deep discharge. Regularly operating the ENA548 from a vehicle battery until low-voltage shutdown will shorten the life of the battery.
-
Page 12: Battery Operating Time
The ENA548 can operate while the engine is running, but the normal voltage drop that occurs during starting of the engine may trigger the... - Page 13 Buzzing sound in audio systems and radios Some inexpensive stereo systems and AM-FM radios have inadequate internal power supply filtering and will “buzz” slightly when powered by the ENA548 Generally, the only solution is an audio product with a higher quality filter.
-
Page 14: Troubleshooting
7. Troubleshooting AC product will not operate, no inverter PROBLEM: lights are ON. Possible cause Solution Battery is defective. Check battery and replace if required. Loose connections. Check connections. PROBLEM: Measured inverter output is too low. Possible cause Solution Standard “average- Inverter’s “modified sine reading”... - Page 15 PROBLEM: AC product will not operate, RED FAULT light ON. Possible cause Solution AC product(s) connected Use a product with a power rating less than the inverter’s are rated at more than the inverter’s continuous continuous power rating. power rating; overload shutdown has occurred.
- Page 16 Specifications: ENA548 Specifications Description 500 W + 48W（USB） Output Continuous Watts (W) 1000 W Surge Capacity (Peak Power) Rated Input DC (V,A) 13VDC, 45A Input Voltage Range 10.5 to 15.5 VDC 50 Hz±1 Rated Frequency (Hz) 8.2A(220-240) Rated Output AC (V,A) 4 * 2.4A max.9.6A (iPad)
- Page 17 Specifications: ENA548 (continued) Specifications Description Modified Sine Wave Output Wave Form 65°C Max Max. Touch Temperature 0° to 40°C Operating Temperature 5 to 95% Operating/Storage Humidity RH Fan Cooling over temperature Cooling System 0.65 Min Power Factor <250mV Ripple & Noise(Peak to Peak) 21.1 x 13.1 x 5.8...
- Page 18 Warranty and Return What does this warranty cover? This Limited Warranty provided covers defects in workmanship and materials in your ENA548. This warranty period lasts for 24 months from the date of purchase at the point of sale to you, the original end user customer.
- Page 19 Warning: Limitations of Use Please refer to your product manual for limitations on uses of the product. SPECIFICALLY, PLEASE NOTE THAT ENA548 SHOULD NOT BE USED IN CONNECTION WITH LIFE SUPPORT SYSTEMS OR OTHER MEDICAL EQUIPMENT OR DEVICES. WITHOUT LIMITING THE GENERALITY OF...
