Page 1: Document Camera

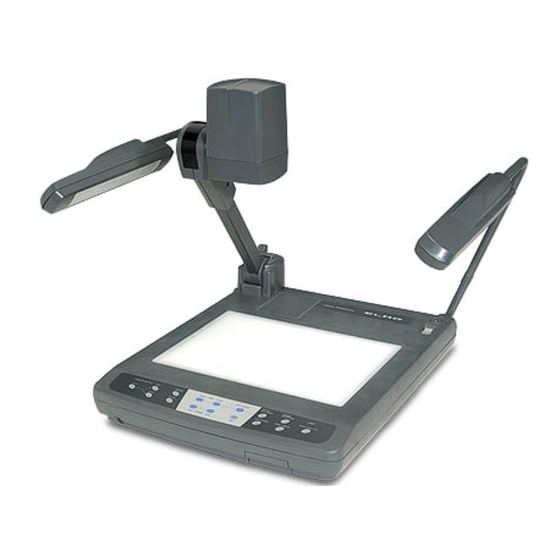

Elmo Visual Presenter HV 5100 XG Document Camera User Guide Camera with power zoom lens & close-up attachment Pedestal Arm Upper Lamps On / Off Stage with Base Lamp Front Operation Panel Overview Rear Panel Front Control Panel Using the Camera Head As An Additional Camera... -
Page 2: Rear Panel
Overview The Elmo document camera is a visual presentation unit that can display a variety of presentation materials. Text, photos, slides, negatives, transparencies, drawings and three-dimensional objects can be displayed in full color for local presentations and over the Distance Learning network. The zoom lens can clearly display items as small as the date on a dime. - Page 3 Elmo Front Control Panel 1. Pause To pause the image. 2. Iris To adjust the brightness of the image. 3. White Balance Changes the mode between AUTO and ONE-PUSH. Rotates the image 90 degrees with each push. 4. Image Rotation MAIN This should remain set to “...
- Page 4 This User Guide is designed as a quick refrence to only the most basic features of the Elmo HV 5100 XG. Detailed information on the many additional features of the Elmo HV 5100 XG is available in Adobe Acrobat .pdf form at: http://dl.neric.org/bdlp/ElmoHV5100XGManual.htm...
