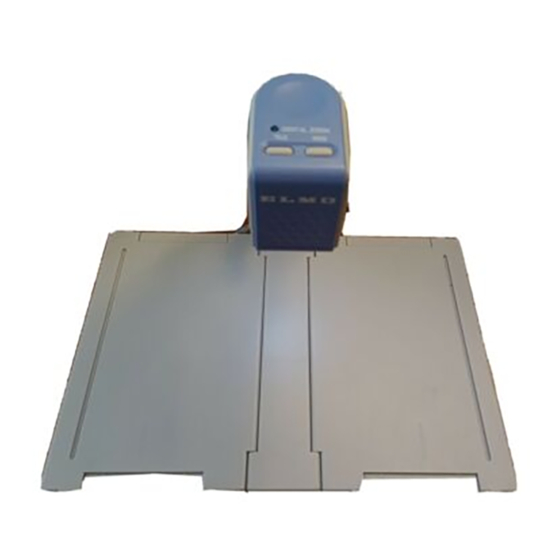

VISUAL PRESENTER
HV-100XG
INSTRUCTION MANUAL
Please read this instruction manual carefully before using this Visual Presenter and
keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Visual Presenter HV-100XG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elmo Visual Presenter HV-100XG

Summary of Contents for Elmo Visual Presenter HV-100XG

  • Page 1 VISUAL PRESENTER HV-100XG INSTRUCTION MANUAL Please read this instruction manual carefully before using this Visual Presenter and keep it for future reference.

  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS Read Instructions – All the safety and operating instructions should be read before the appliance is operated. Retain Instructions – The safety and operating instructions should be retained for future reference. Heed Warnings – All warnings on the product and in the operating instructions should be adhered to.
  • Page 3 Grounding or Polarization – This product may be equipped with either a polarized 2-wire AC line plug (a plug having one blade wider than the other) or a 3-wire grounding type plug, a plug having a third (grounding) pin. The 2-wire polarized plug will fit into the power outlet only one way.
  • Page 4 Damage Requiring Service – Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: When the power-supply cord or plug is damaged. If liquid has been spilled, or objects have fallen into the product.
  • Page 5 T h e l i g h t n i n g f l a s h w i t h arrowhead symbol, within an e q u i l a t e r a l t r i a n g l e , intended to alert the user to the presence of uninsulated SA 1965...

  • Page 6: Before You Use

    BEFORE YOU USE Use the Visual Presenter under the rated electrical conditions. Do not leave the Presenter under direct sunlight or by heaters, or the Presenter may be discolored, deformed, or damaged. Do not place the Presenter in any humid, dusty, windy or vibrating location.

  • Page 7: Table Of Contents

    CONTENTS IMPORTANT SAFEGUARDS ....... 1 BEFORE YOU USE ........5 1.

  • Page 8: Part Names And Functions

    1. PART NAMES AND FUNCTIONS Anti-theft key-hole Camera Head Main Stage Lamp Auxiliary Stage Accessory Case Lamp Switch [LAMP] Image Input Selection Switch [INPUT] Power Switch [POWER] Power Terminal [DC IN 12V] Base Unit AC Adapter Analog RGB Cable - 7 -...
  • Page 9 A case for housing the AC adaptor and the analog RGB cable exclusively. When the Presenter is stored, house this case inside the stage. To connect the Presenter to the monitor/projector. To connect the Presenter to an outlet (120VAC). - 8 -...
  • Page 10 Zoom Lamp Digital Zoom Button [DIGITAL ZOOM] Gain Button [GAIN] - 9 - Auto White Balance Switch [AWB] -Normally ON Auto Electronic Shutter Switch [AES] -Normally ON Gamma Value Selection Switch [ ] -[NORM.] is standard. RGB-in Terminal [RGB INPUT] RGB-out Terminal [RGB OUTPUT]...
  • Page 11 Name Digital Zoom Button [DIGITAL ZOOM] Zoom Lamp Gain Button [GAIN] Auto White Balance Switch [AWB] Auto Electronic Shutter Switch [AES] Gamma Value Selection Switch [ ] RGB-in Terminal [RGB INPUT] RGB-out Terminal [RGB OUTPUT] Function To operate digital zoom. Use the Digital zoom after moving the camera head to the lowest horizontal position (the minimum shooting area), and the image is expanded even more.

  • Page 12: Setting Up And Storing

    Connect the RGB-out terminal [RGB OUTPUT] of the Presenter to the monitor/ projector with the RGB cable (supplied). Note: - Before starting connection, turn OFF the power supply to each unit. Connect the AC adaptor, and turn the power switch [POWER] to ON.

  • Page 13: Zooming

    Analog RGB cable (supplied) To power outlet AC adaptor (supplied) Note: - Analog NTSC or S-Video monitors can not be used. - A monitor or projector having a resolution of 1024x768 is recommended. - 12 -...

  • Page 14: Troubleshooting Hints

    • Is this caused by the interference between the dots The image of printed matter is striped. If the trouble still remains after checking the above, consult your dealer or an authorized ELMO service center. Checkpoint terminal [DC IN 12V] of the Presenter? [RGB IN]? image quality somewhat.

  • Page 15: Specifications

    Warranty card These specifications are subject to change without prior notice. Trademark Acknowledgements , ELMO are registered trademarks of ELMO CO., Ltd. VESA is a resistered trademark of Video Electronics Standards Association. FOCUSFREE is a trademark of ELMO CO., Ltd.
  • Page 16 OVERSEAS SUBSIDIARY COMPANIES U.S.A. ELMO Mfg. Corp. 1478 Old Country Road, Plainview, NY 11803-5034 Tel:(516)501-1400 E-mail:elmo@elmousa.com web:http://www.elmousa.com/ Canada ELMO Canada Mfg. Corp. 44 West Drive, Brampton, Ontario L6T 3T6 Tel:(905)453-7880 E-mail:info@elmocanada.com web:http://www.elmocanada.com/ Germany ELMO (Europe) G.m.b.H Neanderstr. 18, 40233 Düsseldorf Tel:(0211)376051 E-mail:elmoeurope@AOL.com...
