Axis video server - Audio (AXIS 241QA/SA only)
25

Audio (AXIS 241QA/SA only)

The AXIS 241QA/SA can transmit audio to other clients using an external microphone and
can play audio received from other clients by attaching a speaker. The Setup page for the
AXIS 241QA/SA has an additional menu item called Audio, which allows different audio
configurations to be set up, e.g. full duplex, half duplex and simplex.
Note:
The speaker attached to the audio output of the AXIS 241QA/SA must have a
built-in amplifier, which is the case for e.g. some PC speakers.

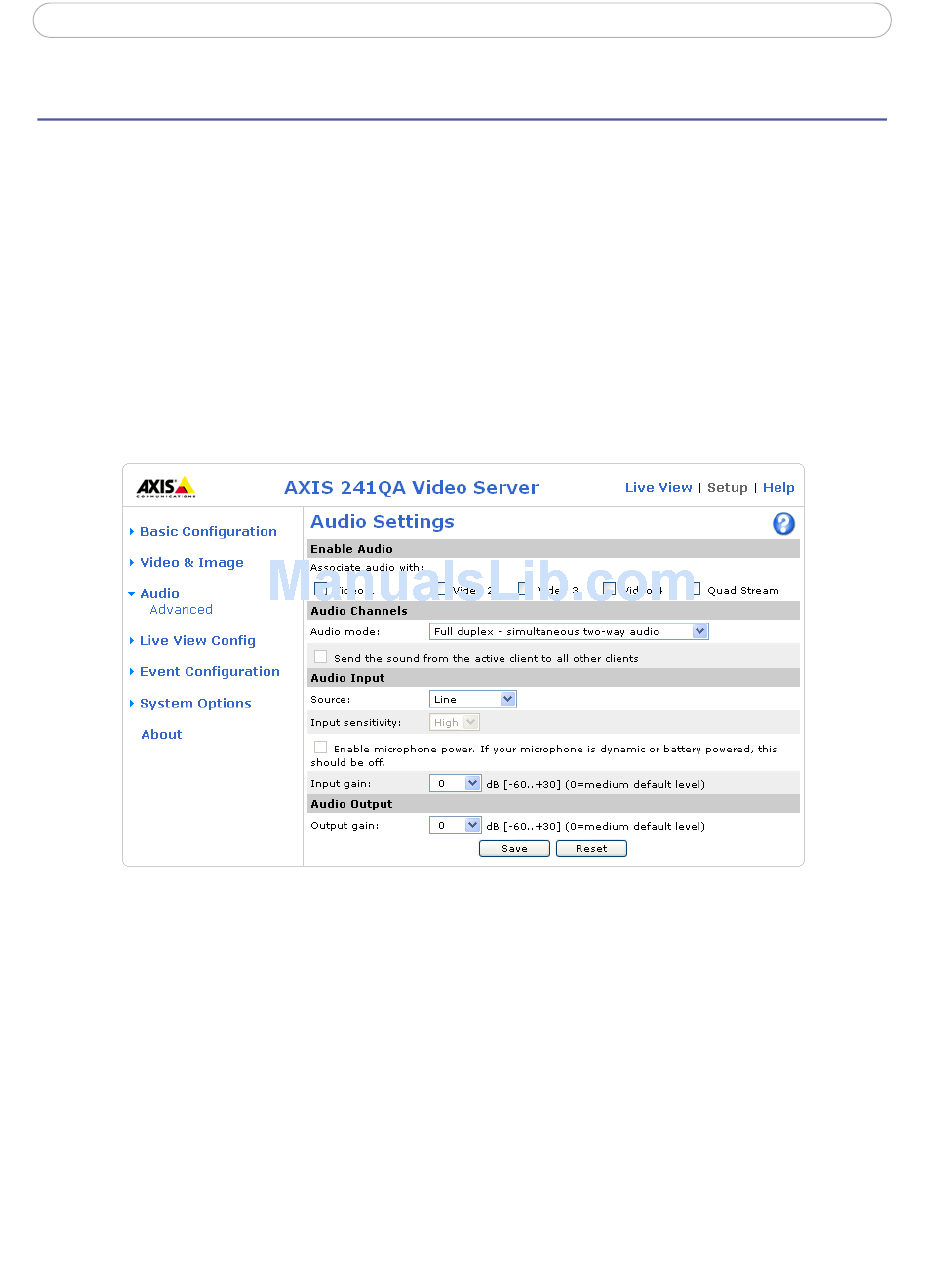

Audio Settings

This section describes how to configure the basic audio settings for the AXIS 241QA/SA,
e.g. set the communication mode and adjust the sound levels in the microphone and
speaker connected to the camera.
Enable Audio
Select the video sources that the AXIS 241QA/SA will transmit and receive audio from.
Audio Channels
There are two mono audio channels between the AXIS 241QA/SA and each connected
client, one for receiving audio and the other for transmitting audio. Each audio channel
can be turned on or off, which means there are four audio mode options that can be used.
