1. Touch the TOUCH HERE space on the power supply
2. Disconnect the SCSI cable from the system board and from
the opening over the TURBOchannel port.
3. Remove the filler plate
4. Temporarily remove the graphics board (if applicable)
5. Remove the TURBOchannel adapter if one is present. This
adapter can NOT co-exist with the Compaq VAX™-SCSI
adapter.
6. Install the internal SCSI cable on the VAX™-SCSI module
7. Install the VAX™-SCSI module in your system, by aligning
the connector on the side of the module with the receptacle on
the CPU board. When you are certain the connectors are
aligned, gently apply pressure directly above the connector
until the connectors seat. Last, clip the module to the retaining
clips.

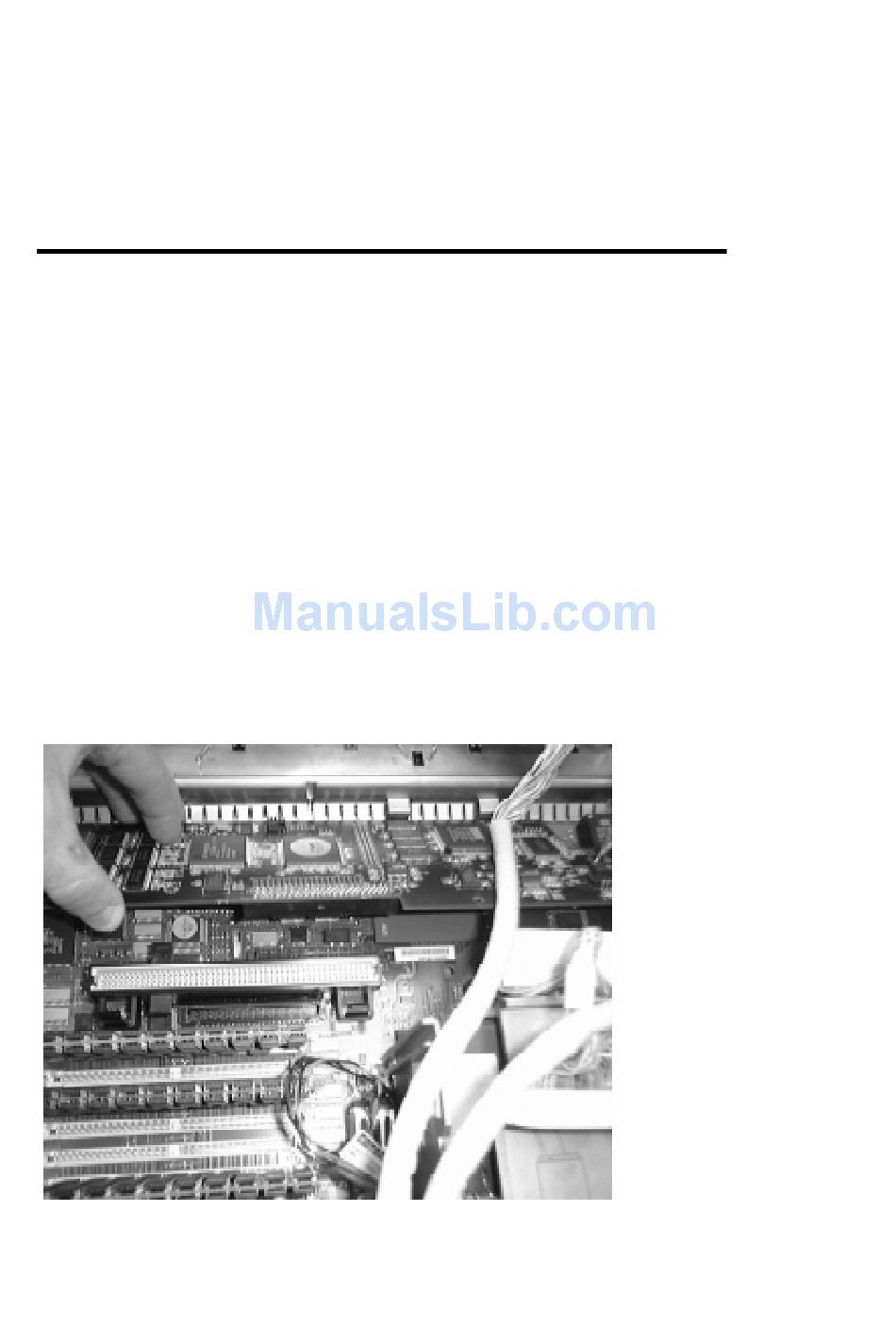

Installing the DS-KZCCA-BB VAX™-SCSI adapter
Figure 8: Installing the DS-KZCCA-BB VAX™-SCSI
Adapter
23
