- Page 1 NC3134 Fast Ethernet Server Adapter User Guide Third Edition (June 2007) Part Number 174846-00F Compaq Computer Corporation...
- Page 2 All other product names mentioned herein may be trademarks of their respective companies. Compaq shall not be liable for technical or editorial errors or omissions contained herein. The information in this document is provided “as is” without warranty of any kind and is subject to change without notice.
-
Page 3: Table Of Contents
Compaq Technician Notes ... vi Where to Go for Additional Help... vi Compaq Customer Support ... vii Compaq Website... vii PaqFax Number ... vii Calling the Compaq Support Line ... viii Chapter 1 Introduction Overview... 1-1 NC3134 Adapter ... 1-2 Upgrade Modules... - Page 4 Compaq NC3134 Fast Ethernet Server Adapter User Guide Class B Equipment... A-3 European Union Notice... A-3 China Taiwan Notice ... A-3 Japanese Notice... A-4 Appendix B Electrostatic Discharge Grounding Methods ... B-1 Appendix C Specifications NC3134 Fast Ethernet Server Adapter Specifications ... C-1 Upgrade Module Specifications...
-
Page 5: About This Guide
This user guide can be used for reference when installing the Compaq NC3134 Fast Ethernet Server Adapter or one of its upgrade modules. WARNING: To reduce the risk of personal injury from electrical shock and hazardous energy levels, only authorized service technicians should attempt to repair this equipment. Improper repairs could create conditions that are hazardous. -
Page 6: Compaq Technician Notes
Compaq NC3134 Fast Ethernet Server Adapter User Guide Compaq Technician Notes WARNING: Only authorized technicians trained by Compaq should attempt to repair this equipment. All troubleshooting and repair procedures are detailed to allow only subassembly/module level repair. Because of the complexity of the individual boards and subassemblies, no one should attempt to make repairs at the component level or to make modifications to any printed wiring board. -
Page 7: Compaq Customer Support
Compaq Customer Support You can reach Compaq automated support services 24 hours a day, every day at no charge. The services provide the most up-to-date information about Compaq products. You can access installation instructions, troubleshooting information, and general product information from the Compaq website. -
Page 8: Calling The Compaq Support Line
Compaq NC3134 Fast Ethernet Server Adapter User Guide Calling the Compaq Support Line When you call the Compaq Support line, you must be at your server with your software running and the product documentation at hand. The Compaq technician may ask for the following... -
Page 9: Introduction
64-bit/66MHz PCI-to-PCI bridge, as well as to the enhanced MAC silicon technology not previously available. The NC3134 adapter supports existing 10/100 Ethernet, 100FX, and 1000 SX/LX upgrade modules, which are listed in Table 1-1. The NC3134 adapter is a supported option for selected Compaq ProLiant™ servers. -
Page 10: Nc3134 Adapter

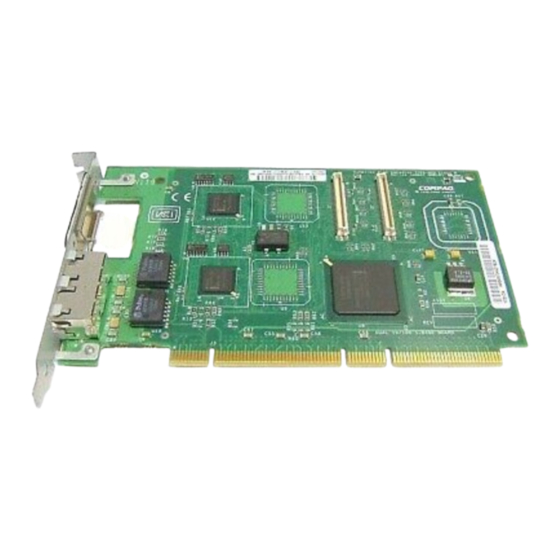

I The NC3131 Fast Ethernet Server Adapter, which supports all the upgrade modules described in this guide I The NC3132 Dual 10/100 Upgrade Module, which you can install in the NC3131 or the NC3134 Fast Ethernet Server Adapters The Compaq NC3134 Fast Ethernet server adapter is a high performance, upgradeable adapter with two fully-integrated 10BASE-T/100BASE-TX networking chips. -
Page 11: Upgrade Modules
Introduction 1-3 Upgrade Modules The NC3134 adapter supports the following upgrade modules: NOTE: See the section titled “LED Indicator Descriptions” for descriptions of LED indicator functions. NC3135 Upgrade Module The NC3135 upgrade module has two RJ-45 dual-speed ports and associated LEDs indicating link, activity, and speed. -
Page 12: Led Indicator Descriptions
LED Indicator Descriptions NC3134 and NC3135 LED Indicators The Compaq NC3134 adapter and NC3135 upgrade modules have two diagnostic LED indicators for each RJ-45 port. The speed of the transmission (10 or 100 Mb/s) is indicated by the LED color. -
Page 13: Utp And Fiber Cable Specifications
NC7132 LED Indicators The Compaq NC7132 upgrade module has four diagnostic LED indicators (see Figure 1-3). LED colors change with different link and activity (transmission/reception) speeds. Link/Speed Activity/Speed Fiber Upgrade Module LED Indicators The fiber upgrade modules have two LEDs that indicate port operation, as described below. -
Page 14: Installing The Upgrade Module And Adapter
NOTE: Before removing the cover of your server, refer to the Compaq documentation for the proper method of installing a PCI card and safeguarding yourself from electrical shock hazards. -
Page 15: Attaching The Upgrade Module
Removing the Adapter from a Server If the adapter is already installed in a Compaq ProLiant server, you must first remove it to install the upgrade module. If the adapter is not installed, go to the section titled “Installing the Upgrade Module on the Adapter.”... - Page 16 5. Insert one hollow rivet through the adapter, and then through the extension bracket. When inserted properly, the lip of the hollow rivet is flush with the adapter and extends about 1/8 inch out of the bracket. 6. Insert one flat-headed pin into the hollow rivet until the head of the pin is flush with the lip of the hollow rivet.
-
Page 17: Installing The Adapter In A Server
2-4 Compaq NC3134 Fast Ethernet Server Adapter User Guide Installing the Adapter in a Server Refer to the Compaq ProLiant™ documentation for the specific steps necessary to safely install a PCI card in your server. Figure 2-2. Installing the adapter in a server If you have not already done so, and i the server and unplug the power cord. -
Page 18: Connecting The Network Cable
“UTP Cable Specifications” and “Fiber Cable Specifications” in Appendix C for a description of each upgrade module and the cable and mode each module supports. Connecting UTP Network Cable The ports on the NC3134 adapter and the NC3135 10/100 and NC7132 upgrade modules use the following UTP connectors. Network Type... -
Page 19: Connecting And Using Loop-Back Plugs
10/100 ports on either the adapter or the upgrade module. For example, if you install an NC3135 upgrade module in an NC3134 adapter and connect two ports to the network, you may have up to two unused ports. In this example, you should insert the provided loop-back plugs into the unused ports. -
Page 20: Regulatory Compliance Notices
IMPORTANT: All of the following Regulatory Compliance Notices apply to the TX-based adapters and upgrade modules. For fiber adapters and fiber upgrade modules, only the European Union Notice applies. Federal Communications Commission Notice Part 15 of the Federal Communications Commission (FCC) Rules and Regulations has established Radio Frequency (RF) emission limits to provide an interference-free radio frequency spectrum. -
Page 21: Class B Equipment
Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Compaq Computer Corporation may void the user's authority to operate the equipment. Declaration of Conformity for products marked with the FCC logo - United States only This device complies with Part 15 of the FCC Rules. -
Page 22: Canadian Notice (Avis Canadien
Canadian Notice (Avis Canadien) Class A Equipment This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Class B Equipment This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. -
Page 23: Japanese Notice
A-4 Compaq NC3134 Fast Ethernet Server Adapter User Guide Japanese Notice... -
Page 24: Appendix B Electrostatic Discharge
Use conductive field service tools. Use a portable field service kit with a folding static-dissipating work mat. If you do not have any of the suggested equipment for proper grounding, have a Compaq authorized reseller install the part. NOTE: For more information on static electricity or assistance with product installation, contact your Compaq authorized reseller. -
Page 25: Appendix C Specifications
NC3134 Fast Ethernet Server Adapter Specifications NC3134 Fast Ethernet Server Adapter Specifications Specification Network Controller Chipset Data Transfer Method Standards Supported Dimensions Connector Distance Interrupts Supported Temperature Range Relative Humidity Agency Approvals Power Requirement Data Transmission Rate Specifications Table C-1... -
Page 26: Upgrade Module Specifications
C-2 Compaq NC3134 Fast Ethernet Server Adapter User Guide Upgrade Module Specifications Environmental and safety specifications for the upgrade modules are the same as those for the NC3134 Server Adapter, as shown in Table C-1. All other specifications are the same except where noted. NC3132 10/100 Upgrade Module... -
Page 27: Nc6132 1000Base-Sx Upgrade Module
NC6132 1000BASE-SX Upgrade Module Specification Network Controller Chipset Standards Supported Connector and Distances Dimensions Agency Approvals Power Requirements NC6133 1000BASE-LX Upgrade Module Specification Network Controller Chipset Standards Supported Connector and Distances Dimensions Agency Approvals Power Requirements NC3133 100BASE-FX Upgrade Module Specification Network Controller Chipset Standards Supported... -
Page 28: Nc7132 1000Base-T (Gigabit Over Copper) Upgrade Module
C-4 Compaq NC3134 Fast Ethernet Server Adapter User Guide NC7132 1000BASE-T (Gigabit over Copper) Upgrade Module Specification Network Controller Chipset Standards Supported Connector and Distances Dimensions Agency Approvals Power Requirements UTP Cable Specifications Adapter Connection Connection Speed Module (10 Mb/s) -
Page 29: Rj-45 Pinouts And Crossover Function
RJ-45 Pinouts and Crossover Function 10BASE-T, 100BASE-TX, and 1000BASE-T are keyed systems to differentiate between voice and data transmissions, in order to keep them separate over twisted-pair cable. The Ethernet standard also specifies that each cable segment implement a crossover function to connect the transmitter of one device to the receiver of a device at the other end, and vice-versa. -
Page 30: 10/100 Crossover Pinouts
C-6 Compaq NC3134 Fast Ethernet Server Adapter User Guide 10/100 Crossover Pinouts When the crossover function is not provided within the hub or switch, you must implement the crossover through the twisted-pair media using the physical pinouts indicated in Table C-10. - Page 31 Gigabit over Copper Pinouts Using Internal Crossover Function BI_DA+ BI_DA- BI_DB+ BI_DC+ BI_DC- BI_DB- BI_DD+ BI_DD- Figure C-3 shows straight-through Gigabit over copper connector wiring to be used when the crossover function is implemented within the hub or switch. Figure C-3. Gigabit over copper straight-through wiring for RJ-45 connector Table C-11 Color Match Function...
-
Page 32: Gigabit Over Copper External Crossover Pinouts
C-8 Compaq NC3134 Fast Ethernet Server Adapter User Guide Gigabit over Copper External Crossover Pinouts When a crossover function is not provided by either the adapter or hub or switch, you must implement it through the twisted-pair media using the physical pinouts shown in Table C-12. -
Page 33: Fiber Cable Specifications
Fiber Cable Specifications To connect to the network, the NC3133, NC6132, and NC6133 upgrade modules use 100 BASE-FX, 1000 BASE-SX, or 1000BASE-LX fiber cable, respectively. Table C-13 and Table C-14 describe the fiber types, mode, cable size, and maximum distance specifications for the fiber upgrade modules.
