Option Locations VAXStation™

1.
2.
3.
4.

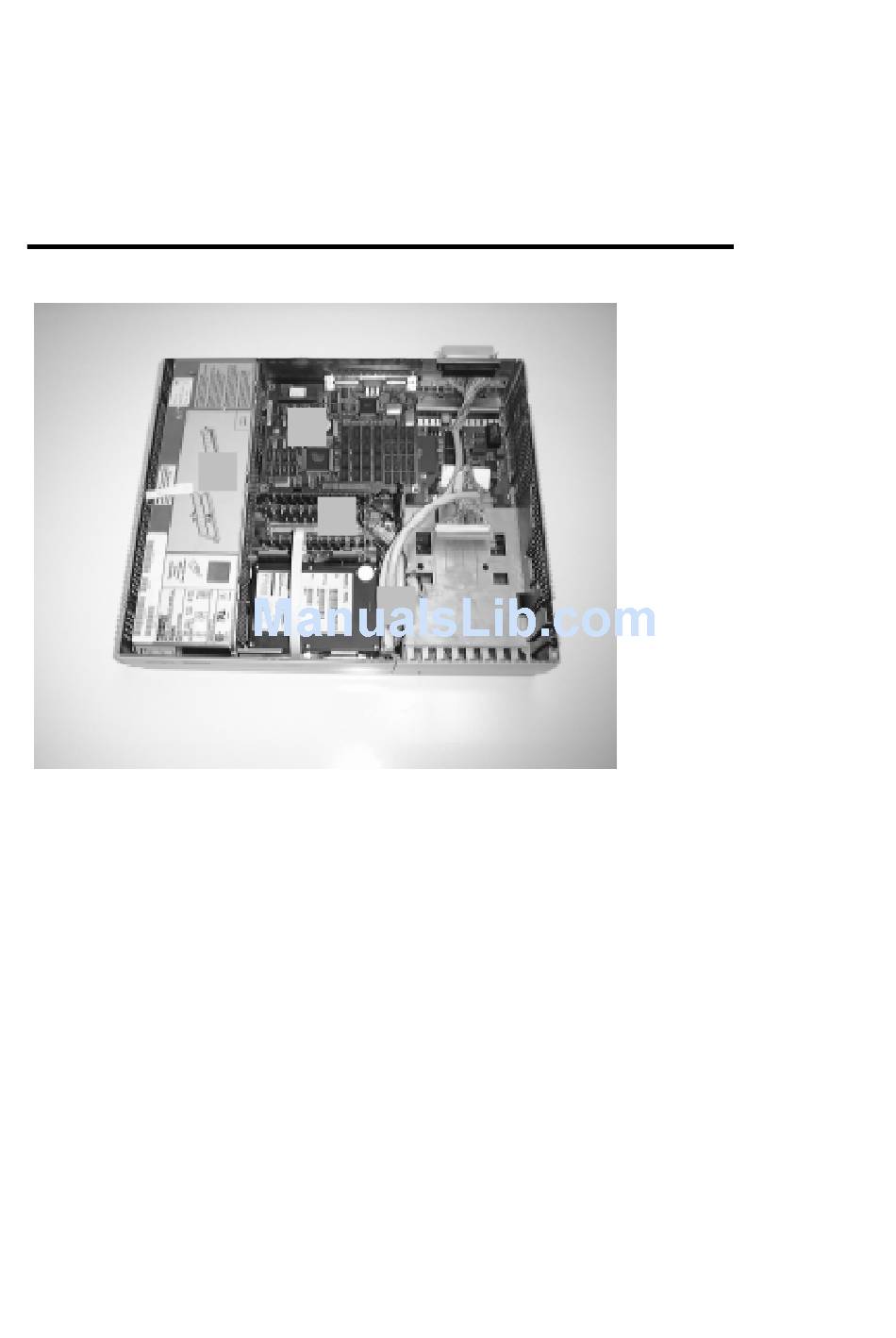

Figure 7: Vaxstation Option Locations

Locate the options listed above within your system enclosure. You may need
to temporarily remove one or more options in order to install your Compaq
VAX™-SCSI option.

Configuration Restrictions

You can not have the Compaq VAX SCSI option in your system at the same
time as the TURBO channel adapter. If this adapter is in your system, it must
be removed if you want to run the Compaq adapter.

DS-KZCCA-BB VAX-SCSI Installation procedure

The table and figures below detail the steps required to install the VAX-SCSI
adapter in your VAXStation system. If additional information is required,
please consult your system documentation.
3
1
2
Power Supply
Memory Modules
Graphics Module
Internal Storage
22
4
