Inserting the Network Card

1. Switch off all computer system components, unplug the
computer, and remove the computer cover.
2. Work in a static-free area and touch the computer chassis often
to equalize static charges.
3. Install the network card into an available bus-mastering PCI slot.
4. Make sure the network card is completely seated so that no
"gold fingers" are exposed.

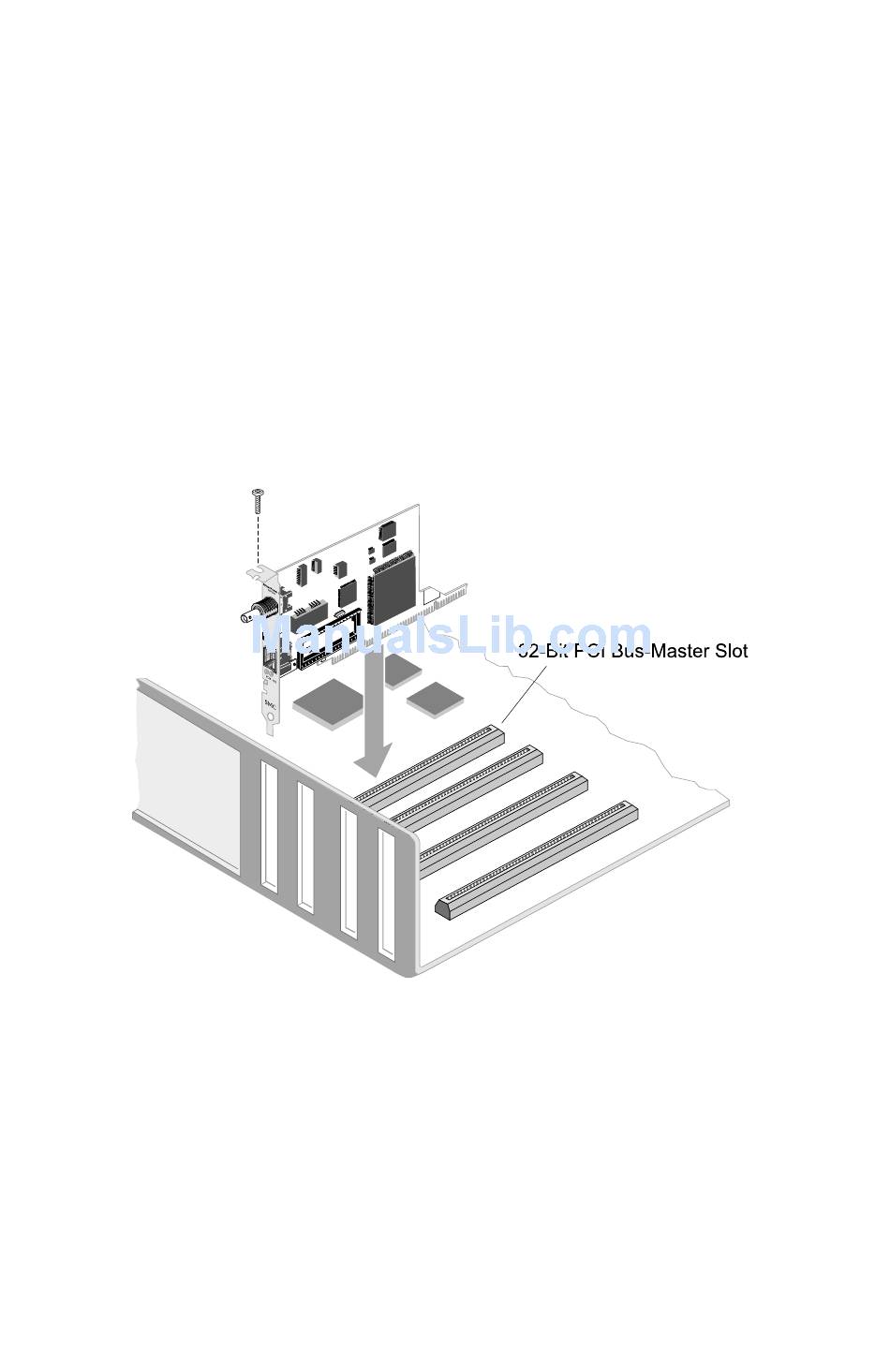

Figure 1-3. Inserting the Network Card
5. For the models that support a Wake-On-LAN connector,
connect one end of the 3-pin WOL cable to connector J1 on
the card, and the other end to the "5V Standby" connector on
the computer's motherboard, as shown in Figure 1-3. (Refer to
your computer's installation manual to locate the 5V Standby
connector.)
