T N
ESTING THE ETWORK
2. If your computer has more than one SMC network card
installed, use the "Select Adapter" drop-down list at the top of
the window to select the card you want to test.
3. Click the "Basic tests" button. The basic adapter test consists of
individual tests that evaluate the loopback, send, and receive
capabilities of the selected SMC network card.
When the test starts:
K
A status bar to the right of the "Basic tests" button shows
the percentage of the test completed.
K
Status messages under "Test Results" show the current test
in progress. As each individual test completes, Test Results
shows whether the SMC network card passed or failed the
test (see Figure 4-2).

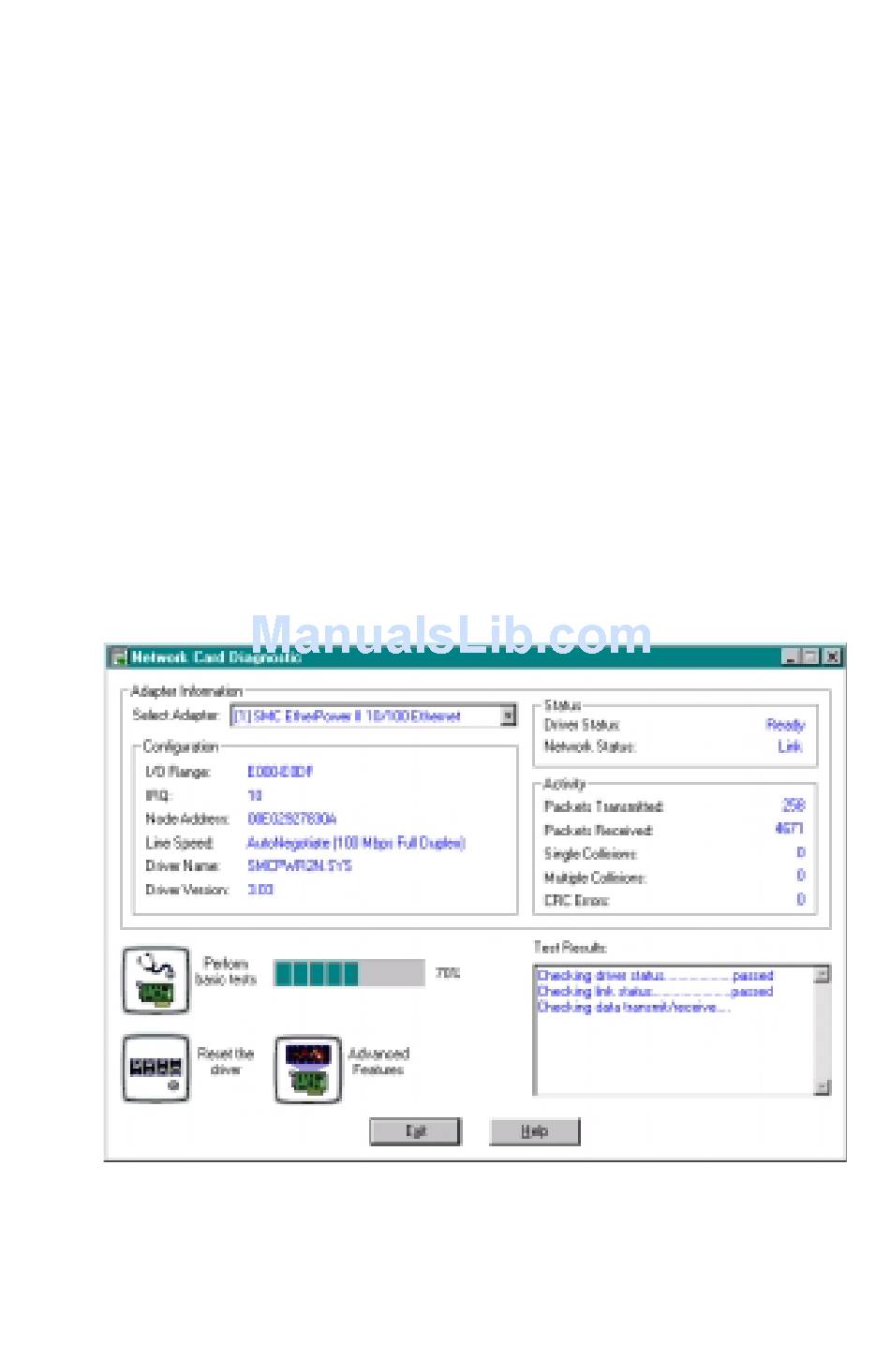

Figure 4-2. Testing Status
4-6
