X9DRD-7JLN4F/X9DRD-7LN4F Motherboard User's Manual
2-9

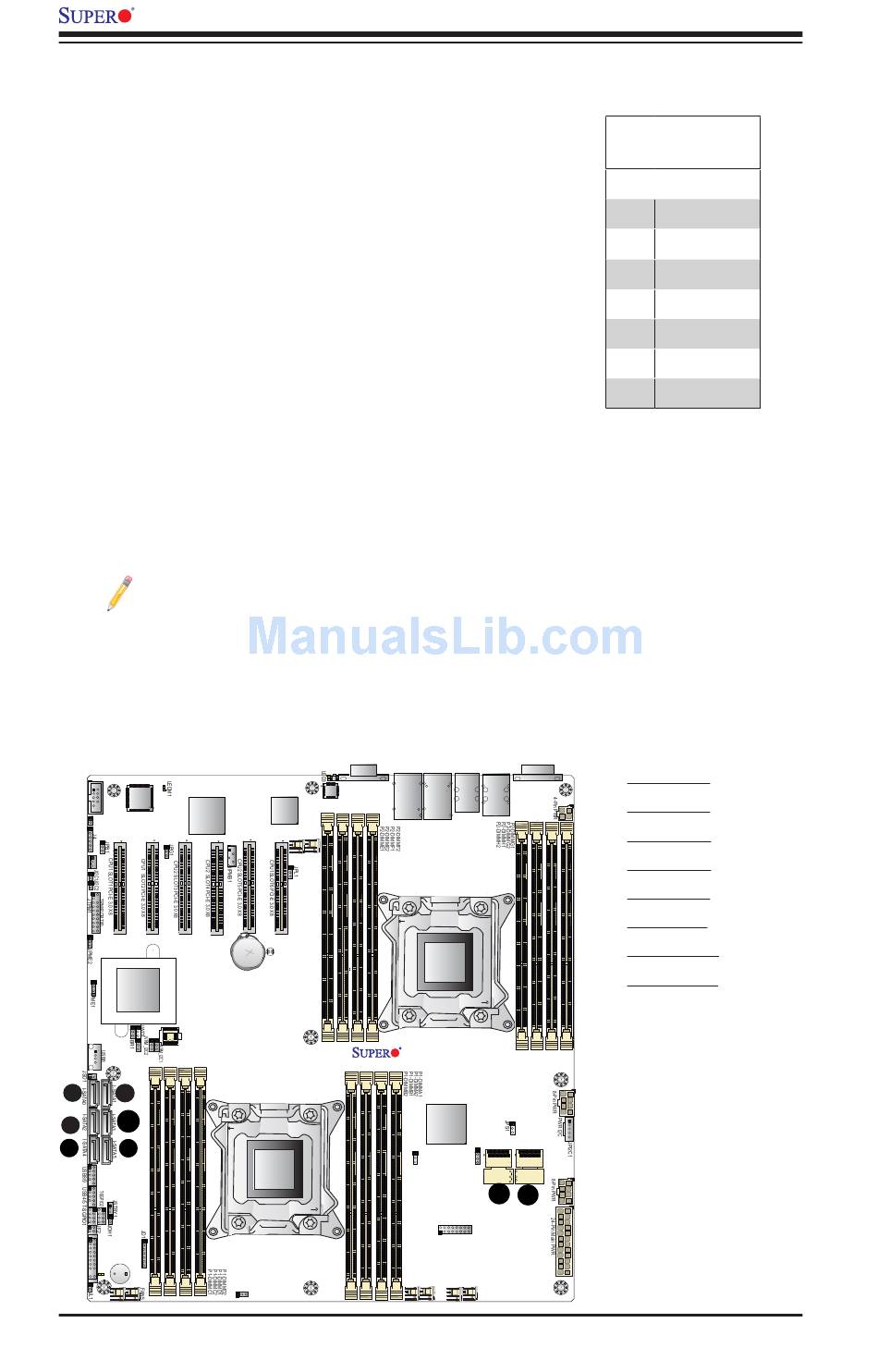

SATA/SAS Connections

Serial ATA Ports

There are six Serial ATA Ports (I-SATA1~I-SATA6)
located on the motherboard, including four SATA2
ports and two SATA3 ports. These ports provide
serial-link signal connections, which are faster than
the connections of Parallel ATA. See the table on
the right for pin definitions.

SAS2 Ports

Eight Serial_Attached_SCSI Ports (SAS0~3, 4~7)
located on the motherboard to provide serial link
connections. These ports are supported by the LSI
SAS2 2308 Controller. See the table on the right
for pin definitions.
Note: For more information on SATA HostRAID configuration, please refer
to the Intel SATA HostRAID User's Guide posted on our website @ http://
www.supermicro.com..
COM2
BMC
Intel
PCH
JUSB6
BIOS
A B
D
C
E F
BUZZER
LED2
JF1 SP1
FAN6
VGA1
LAN2/4
JUIDB
UID
LAN
CTRL
FAN8 FAN7
JBAT1
JBT1
Battery
CMOS CLEAR
CPU1
CPU2
JVR1
USB2/3
LAN1/3 USB0/1
COM1
JPW4
IPMI_LAN
CPU2
CPU2
X9DRD-7(J)LN4F
Rev. 1.01
JPW3
LSI SAS CTRL
L-SAS0~3
L-SAS4~7
JPW2
H
G
JPW1
FAN4
FAN3 FAN2 FAN1
2-38
SATA/SAS
Pin Definitions
Pin# Definition
1 Ground
2 TX_P
3 TX_N
4 Ground
5 RX_N
6 RX_P
7 Ground
A. I-SATA1
B. I-SATA2
C. I-SATA3
D. I-SATA4
E. I-SATA5
F. I-SATA6
G. SAS 0~3
H. SAS 4~7
