Overheat (Oh)/Fan Fail/Pwr Fail/Uid Led; Power Fail Led - Supero X9DRD-7JLN4F User Manual

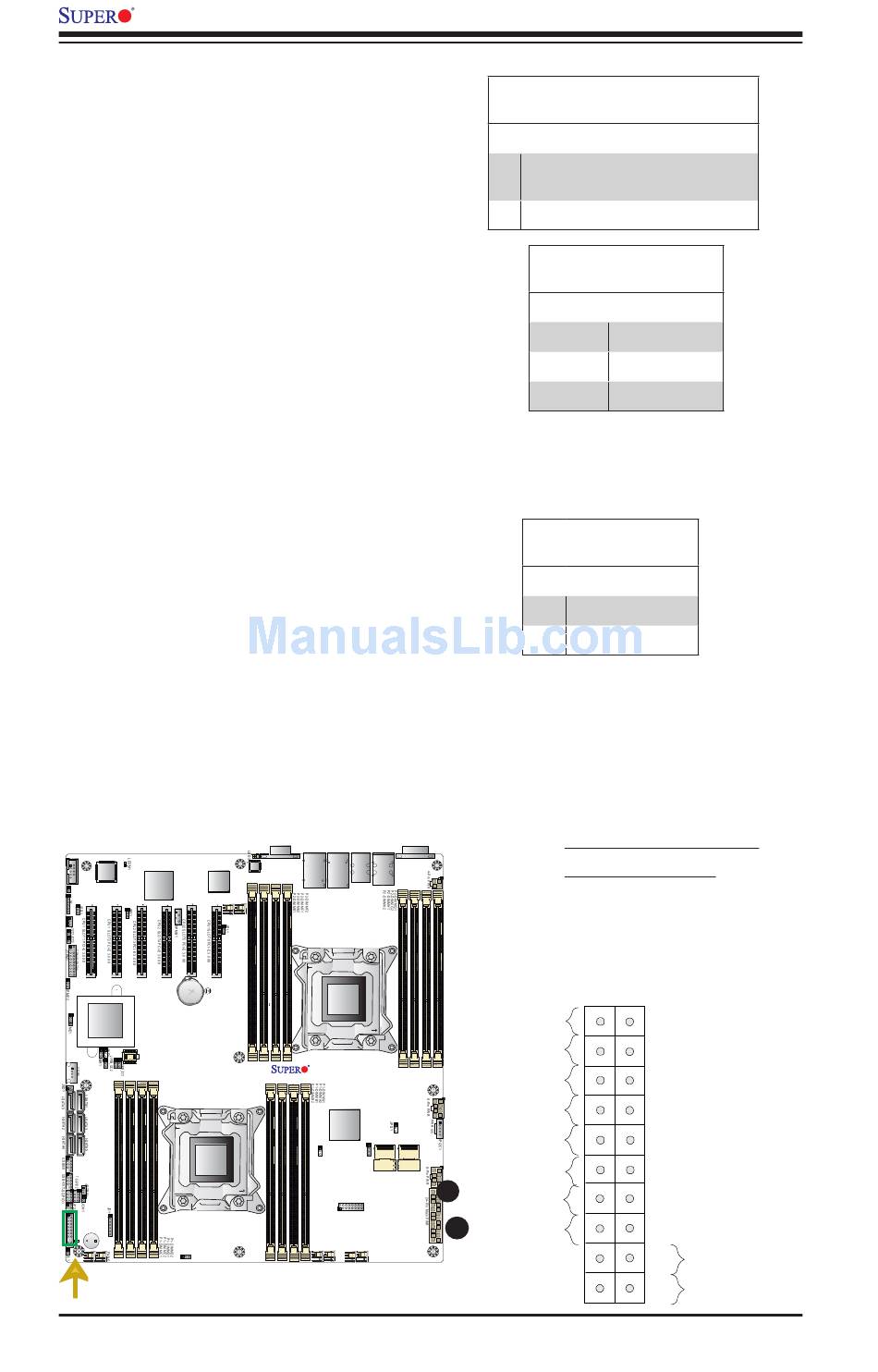

X9DRD-7JLN4F/X9DRD-7LN4F Motherboard User's Manual
Overheat (OH)/Fan Fail/PWR Fail/
UID LED
Connect an LED cable to pins 7 and
8 of Front Control Panel to use the
Overheat/Fan Fail/Power Fail and
UID LED connections. The Red LED
on pin 7 provides warnings of over-
heat, fan failure or power failure. The
Blue LED on pin 8 works as the front
panel UID LED indicator. The Red
LED takes precedence over the Blue
LED by default. Refer to the table on
the right for pin definitions.

Power Fail LED

The Power Fail LED connection is
located on pins 5 and 6 of JF1. Re-
fer to the table on the right for pin
definitions.
COM2
LAN
CTRL
BMC
FAN8 FAN7
JBAT1
JBT1
Battery
CMOS CLEAR
Intel
PCH
JUSB6
BIOS
CPU1
CPU2
BUZZER
LED2
JF1 SP1
FAN6
JVR1
VGA1
LAN2/4 LAN1/3 USB2/3 USB0/1
JUIDB
UID COM1
IPMI_LAN
CPU2
CPU2
X9DRD-7(J)LN4F
Rev. 1.01
LSI SAS CTRL
L-SAS4~7 L-SAS0~3
FAN4 FAN1
FAN3 FAN2
2-22
OH/Fan Fail/ PWR Fail/Blue_UID
LED Pin Definitions (JF1)
Pin# Definition
7 Red_LED-Cathode/OH/Fan Fail/
Power Fail5.5V.SB
8 Blue_UID LED
OH/Fan Fail/PWR Fail
LED Status (Red LED)
State
Off
On
Flashing
PWR Fail LED
Pin Definitions (JF1)
Pin# Definition
5 3.3V
6 PWR Supply Fail
A. OH/Fail/PWR Fail LED
B. PWR Supply Fail
