SPK-W611
Two−Way On−Wall Speakers
FEATURES
Frequency Response
- 45Hz to 20kHz.
Impedance
- 6Ω.
Tweeter
- 1" (2.54cm) silk dome.
Woofer
- 6.5" (16.5cm) polypropylene cone, rubber surround.
Crossover
- With 12dB/octave.
Crossover Frequency
- 4.3kHz.
Sensitivity
- 88dB, SPL 1 watt @1 meter with 1kHz.
Recommended Power
- 40W RMS to 80W max.
Grille
- Aluminum grilles with UV treatment compliance.
Dimensions
- 22.5cm x 22.3cm x 30.3cm (8.9" x 8.8" x 11.9") W, D, H.
Weight (Single Speaker)
- 2.6kg (5.7lbs) approx.
Shipping Weight (Pair)
- 5.6kg (12.3lbs) approx.
Accessories
- 2 mounting brackets (fixed and rotating).
Package
- 2 speakers (1 pair), mounting brackets and user manual.

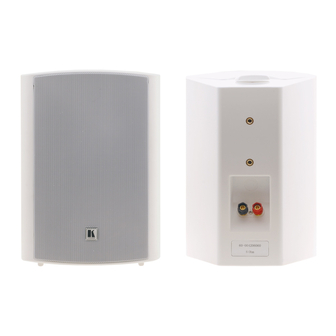

The SPK−W611 is a pair of two−way
speakers designed for mounting on the wall.
They have an acoustic suspension design
and aluminum grilles.

Advertisement

loading
Need help?

Need help?

Do you have a question about the SPK-W611 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kramer SPK-W611

  • Page 1 SPK-W611 Two−Way On−Wall Speakers The SPK−W611 is a pair of two−way speakers designed for mounting on the wall. They have an acoustic suspension design and aluminum grilles. FEATURES Frequency Response - 45Hz to 20kHz. Impedance - 6Ω. Tweeter - 1" (2.54cm) silk dome.
  • Page 2 SPK-W611 TECHNICAL SPECIFICATIONS 2−way speaker. TYPE: FREQUENCY RESPONSE: 45Hz to 20kHz. 6.5” (16.5cm) polypropylene cone, rubber surround. WOOFER: 1” (2.5cm) silk dome. TWEETER: With 12dB/octave. CROSSOVER: 4.3kHz. CROSSOVER FREQUENCY: 88dB (2.83V @1 meter). SENSITIVITY: 55Hz. FREE AIR RESONANT FREQUENCY: 6Ω.
