Page 1: User Manual
K R A ME R E LE CT R O N IC S L T D . USER MANUAL MODEL: SPK-W511 On-Wall Speakers P/N: 2900-300115 Rev 2... -
Page 3: Table Of Contents
Defining the SPK-W511 Installing the SPK-W511 Choosing the Best Location Installing the Speaker Wires Installing the Mounting Bracket Installing the SPK-W511 Technical Specifications Figures Figure 1: SPK-W511 Figure 2: SPK-W511 with Brackets Connected Figure 3: Installing the SPK-W511 SPK-W511 – Contents... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded... -
Page 5: Getting Started
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 6: Overview

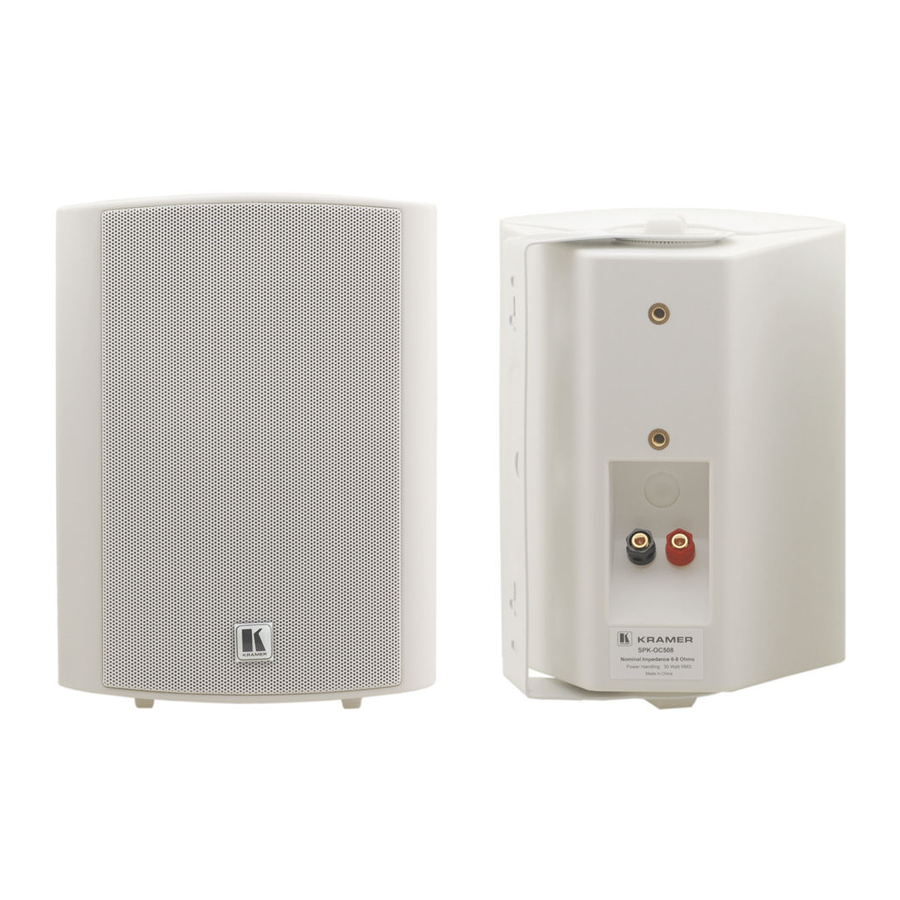

Overview The SPK-W511 includes a pair of high performance speakers that can be mounted on the wall vertically or horizontally, and indoors as well as outdoors. The mounting brackets are made of painted steel that can be attached to each speaker, letting you rotate each speaker to the left or right. -
Page 7: Installing The Spk-W511
4. Unscrew the negative (black) screw-type connector, insert the wire from the negative terminal on the receiver, and retighten. 5. Unscrew the positive (red) screw-type connector, insert the wire from the positive terminal on the receiver, and retighten. SPK-W511 - Installing the SPK-W511... -
Page 8: Installing The Mounting Bracket
(see Figure Figure 2: SPK-W511 with Brackets Connected 5. You can slightly loosen the knobs on a speaker to adjust its direction. SPK-W511 - Installing the SPK-W511... -
Page 9: Installing The Spk-W511
Installing the SPK-W511 You can connect the SPK-W511 speakers to an amplifier, for example the Kramer 907xl Power Amplifier/Mixer, as illustrated in Figure Figure 3: Installing the SPK-W511 SPK-W511 - Installing the SPK-W511... -
Page 10: Technical Specifications
ACCESSORIES: 2 mounting brackets (including 4 knobs and 4 mounting screws) OPTIONS: BCP-2S speaker cable COLORS: Available in white or black Specifications are within a 10% tolerance and are subject to change without notice at http://www.kramerelectronics.com SPK-W511 - Technical Specifications... - Page 12 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
