Page 1: User Manual
KR AMER ELECTRON ICS LT D. USER MANUAL MODEL: SPK-W612 On-Wall Speakers P/N: 2900-300117 Rev 2... -
Page 2: Table Of Contents
Introduction Getting Started Achieving the Best Performance Overview Defining the SPK-W612 Installing the SPK-W612 Choosing the Best Location Installing the Speaker Wires Installing the Mounting Bracket ... -
Page 3: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded... -
Page 4: Getting Started
(often associated with low quality cables) • Avoid interference from neighboring electrical appliances that may adversely influence signal quality • Position your Kramer Speakers away from moisture, excessive sunlight and dust SPK-W612 - Getting Started... -
Page 5: Overview

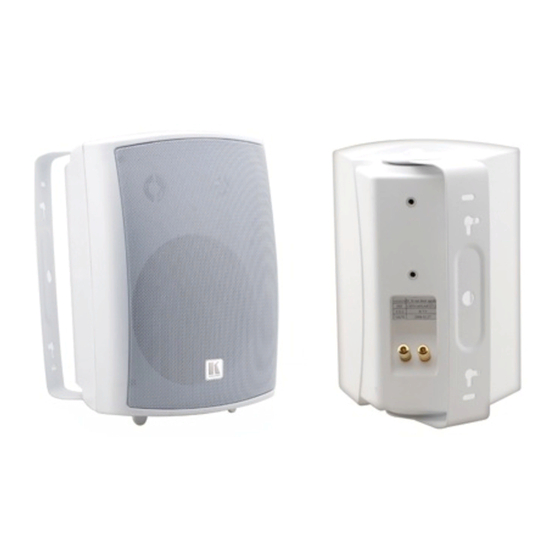

Overview The SPK-W612 includes a pair of high performance speakers that can be mounted on the wall vertically or horizontally. The mounting brackets are made of hardened steel that can be attached to each speaker, letting you rotate each speaker to the left or right. -
Page 6: Installing The Spk-W612
Use two stranded 16-gauge speaker wires of similar length (for achieving high quality sound) It is recommended to use the Kramer BC-2S cables Measure the length to reach from each speaker to the receiver, adding some access wire length to let you easily remove the speakers from the bracket without having to disconnect the input wires 2. -
Page 7: Installing The Mounting Bracket
4. Screw the fixture into the two threaded holes on the speaker (see Figure 2C). 5. Place the metal bracket on the two fixtures, insert the four bracket screws and tighten (see Figure 2D). Figure 2: Installing the Fixed Bracket SPK-W612 - Installing the SPK-W612... - Page 8 1. Mark the location of the mounting holes. 2. Screw mounting screws (not included in the package) into the mounting holes. 3. Slide the mounting bracket over the mounting screws so that the mounting bracket is secured to the surface. SPK-W612 - Installing the SPK-W612...
-
Page 9: Technical Specifications
19.3cm x 18.8cm x 25.98cm (7.6” x 7.4” x 10.23”), W, D, H WEIGHT: One speaker: 2.6kg (5.7lbs) approx. Shipping weight: (for pair): 5.6kg (12.3lbs) approx. ACCESSORIES: Two mounting brackets (fixed and rotating) Specifications are subject to change without notice at http://www.kramerelectronics.com SPK-W612 - Technical Specifications... - Page 10 SPK-W612 - Technical Specifications...
- Page 11 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
