Healthrider HREL2005.0 User Manual

Healthrider user's manual elliptical exerciser hrel2005.0
Hide thumbs

Advertisement

Table of Contents

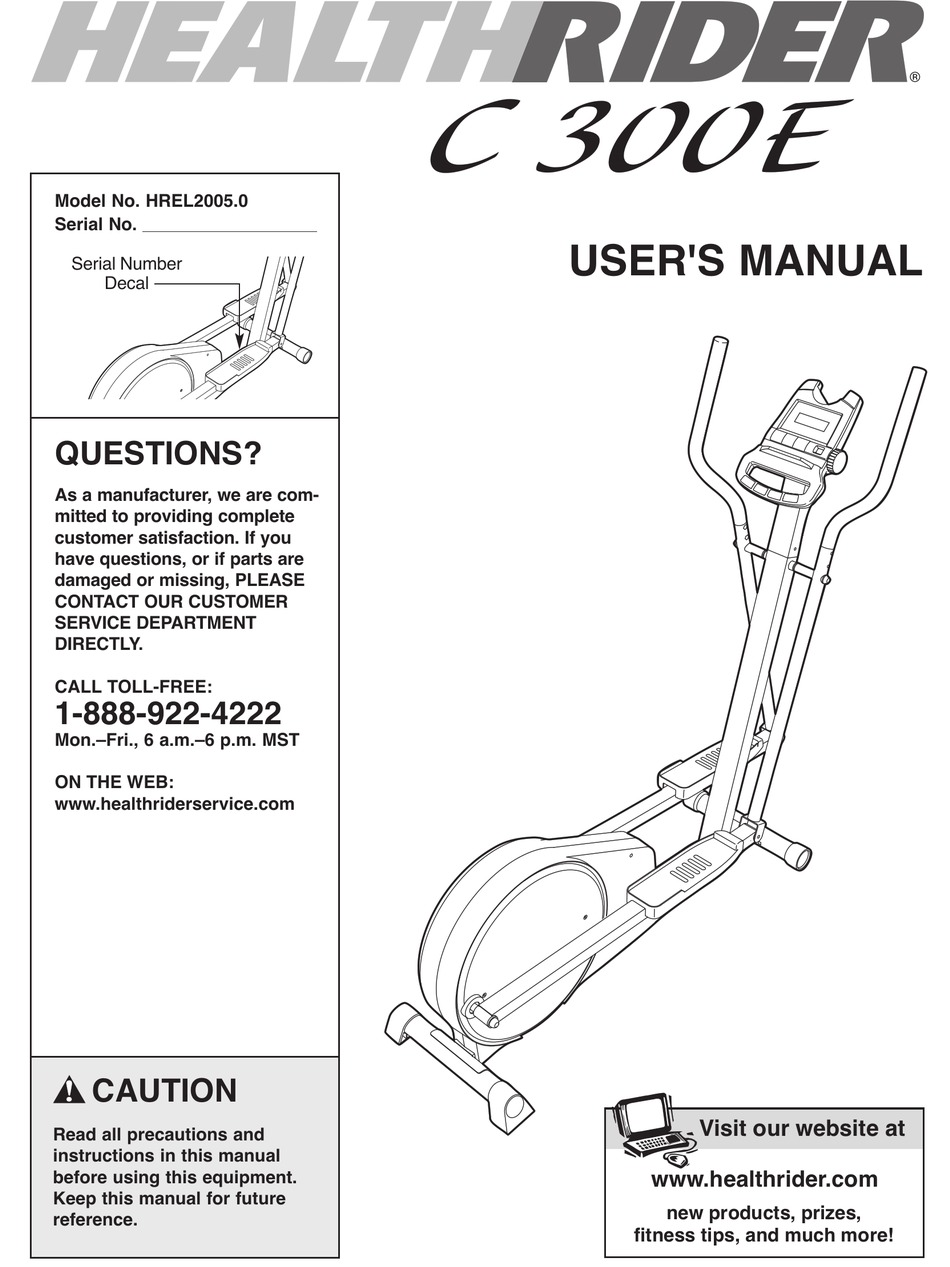

Model No. HREL2005.0
Serial No.
Serial Number
Decal
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
CALL TOLL-FREE:
1-888-922-4222
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB:
www.healthriderservice.com
CAUTION
Read all precautions and
instructions in this manual
before using this equipment.
Keep this manual for future
reference.
USER'S MANUAL
Visit our website at
www.healthrider.com
new products, prizes,
fitness tips, and much more!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HREL2005.0 and is the answer not in the manual?

Questions and answers

Related Manuals for Healthrider HREL2005.0

Summary of Contents for Healthrider HREL2005.0

  • Page 1 Model No. HREL2005.0 Serial No. Serial Number Decal QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or if parts are damaged or missing, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT DIRECTLY. CALL TOLL-FREE: 1-888-922-4222 Mon.–Fri., 6 a.m.–6 p.m.

  • Page 2: Table Of Contents

    IMPORTANT PRECAUTIONS ..............2 BEFORE YOU BEGIN .

  • Page 3: Before You Begin

    Side Shield Pedal Disk BACK ing. The model number is HREL2005.0. The serial ® number can be found on a decal attached to the ellip- tical exerciser (see the front cover of this manual).

  • Page 4: Assembly

    To hire an authorized service technician to assemble the elliptical exerciser, call toll-free 1-800-445-2480. Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires a phillips screwdriver mallet See the drawings below to identify the small parts needed for assembly.
  • Page 5 1. Attach the Rear Stabilizer (4) to the Frame (1) with two M10 x 75mm Carriage Bolts (34) and two M10 Nylon Locknuts (29). 2. Hold the Lower Cable (15) and the Lower Wire Harness (65) in the indicated slot in the Frame (1), and insert the Front Stabilizer (3) into the Frame.
  • Page 6 5. While another person holds the Console (5) near the Console Bracket (26), insert the console cable into the Console Bracket and down through the Upright (2). Next, connect the console wire to the Upper Wire Harness (55). Then, connect the ground wire to the Console Bracket with an M4 x 16mm Screw (66).
  • Page 7 sticker. Insert the Left Handlebar (9) into one of the Handlebar Legs (39). Make sure that the Left Handlebar is oriented as shown. Attach the Left Handlebar with two M8 x 45mm Button Bolts (50) and two M8 Nylon Locknuts (46). Do not tighten the Button Bolts yet.

  • Page 8: How To Use The Elliptical Exerciser

    10. Apply a thin film of grease to the shaft of a Bolt Set (27) and to the axle on the left Crank Arm (36). Slide a Pedal Spacer (64) and the left Pedal Arm (14) onto the axle on the left Crank Arm (36). Attach the Pedal Arm with a Pedal Arm Axle Cap (16).

  • Page 9: Features Of The Console

    HOW TO OPERATE THE CONSOLE FEATURES OF THE CONSOLE The easy-to-use console is designed to help you get the most from your workouts. As you exercise, the console will display the following modes: Time—This mode displays the elapsed time (or the time remaining in a pace program).
  • Page 10 HOW TO USE THE MANUAL MODE Note: If there is a sheet of clear plastic on the console, peel off the plastic. Turn on the console. To turn on the console, press the On/Reset button or begin pedaling. Select the manual mode. Each time the console is should be blank...
  • Page 11 Turn on the console. See step 1 on page 10. Select one of the four pace programs. Each time the console is turned on, the manual mode will be selected. To select a pace program, press the Program button repeatedly until the number 1, 2, 3, or 4 appears in the upper right corner of the display.

  • Page 12: Maintenance And Troubleshooting

    Inspect and properly tighten all parts of the elliptical exerciser regularly. Replace any worn parts immedi- ately. The elliptical exerciser can be wiped clean with a soft cloth and mild detergent. Do not use abrasives or solvents. To prevent damage to the console, keep liquids away from the console and keep the console out of direct sunlight.

  • Page 13: Conditioning Guidelines

    WARNING: Before beginning this or any exercise pro- gram, consult your physician. This is espe- cially important for individuals over the age of 35 or individuals with pre-existing health problems. The pulse sensor is not a medical device. Various factors may affect the accuracy of heart rate readings.

  • Page 14: Part List

    Key No. Qty. Description Frame Upright Front Stabilizer Rear Stabilizer Console Left Side Shield Right Side Shield Pedal Disk Left Handlebar Right Handlebar Foam Grip Right Pedal Left Pedal Pedal Arm Lower Cable Pedal Arm Axle Cap Handlebar Axle Cap Rear Pedal Arm Bushing M10 x 68mm Carriage Bolt Side Shield Bracket...

  • Page 15: Exploded Drawing

    R0805B...

  • Page 16: How To Order Replacement Parts

    • the MODEL NUMBER of the product (HREL2005.0) • the NAME of the product (HEALTHRIDER C 300E elliptical exerciser) • the SERIAL NUMBER of the product (see the front cover of this manual) • the KEY NUMBER and DESCRIPTION of the part(s) (see page 14) HEALTHRIDER is a registered trademark of ICON IP, Inc.
