Removing the NovaScale Blade 1GB Intel® Ethernet
Switch Module
Statement 8:
xxCAUTION:

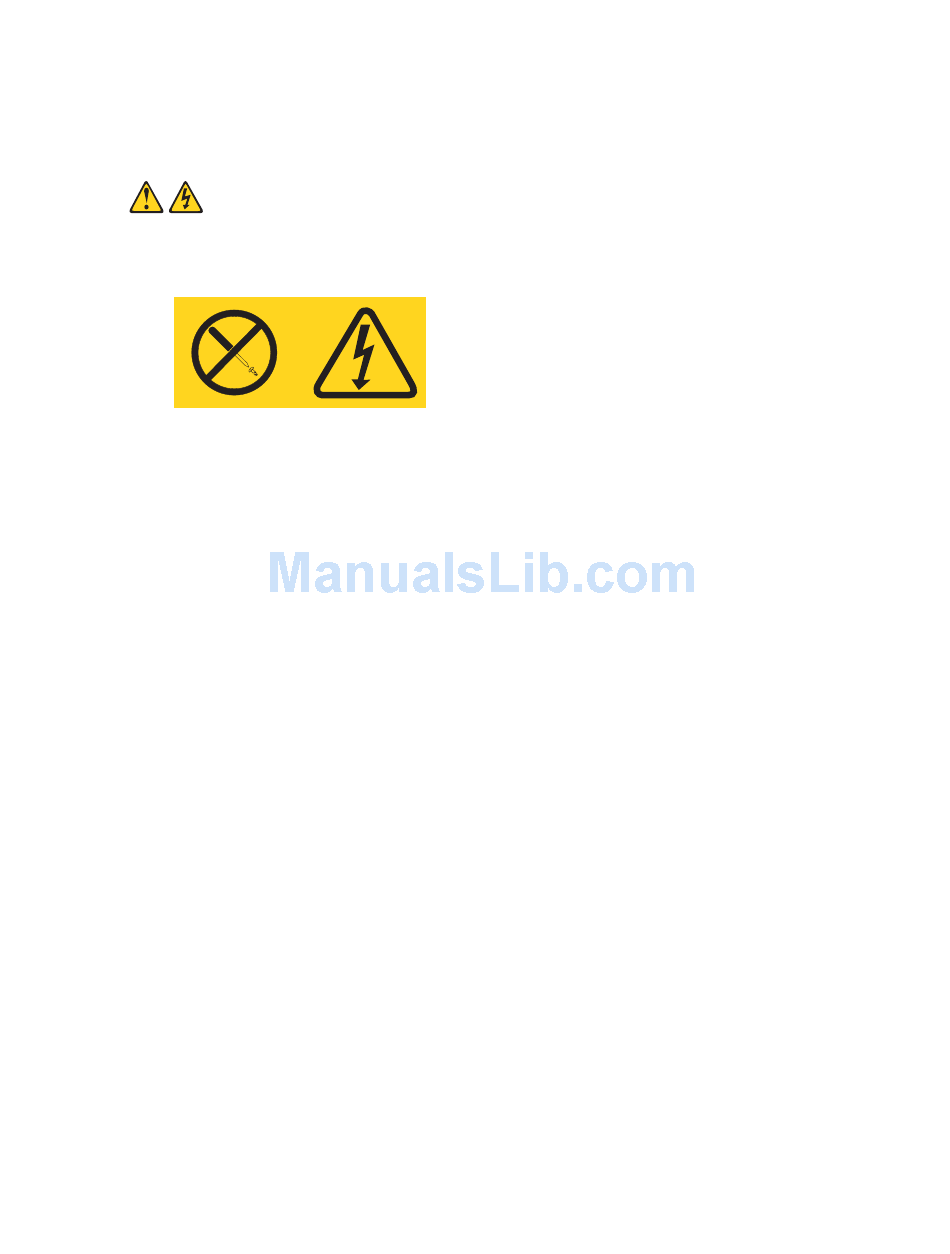

Never remove the cover on a power supply or any part that has the following label attached.
Hazardous voltage, current, and energy levels are present inside any component that has this
label attached. There are no serviceable parts inside these components. If you suspect a
problem with one of these parts, contact a service technician.
Complete the following steps to remove the NovaScale Blade 1GB Intel® Ethernet Switch Module.
1. Select an appropriate I/O module bay from which to remove a switch module, in accordance
with the instructions in "Ethernet interface requirements" on page 9.
2. Unplug any cables from the selected switch module.
3. For the NovaScale Blade Chassis platform, pull the release latch toward the side of the switch
module as shown in the second illustration. The module moves out of the I/O module bay about
0.64 cm (0.25 inch).
