Summary

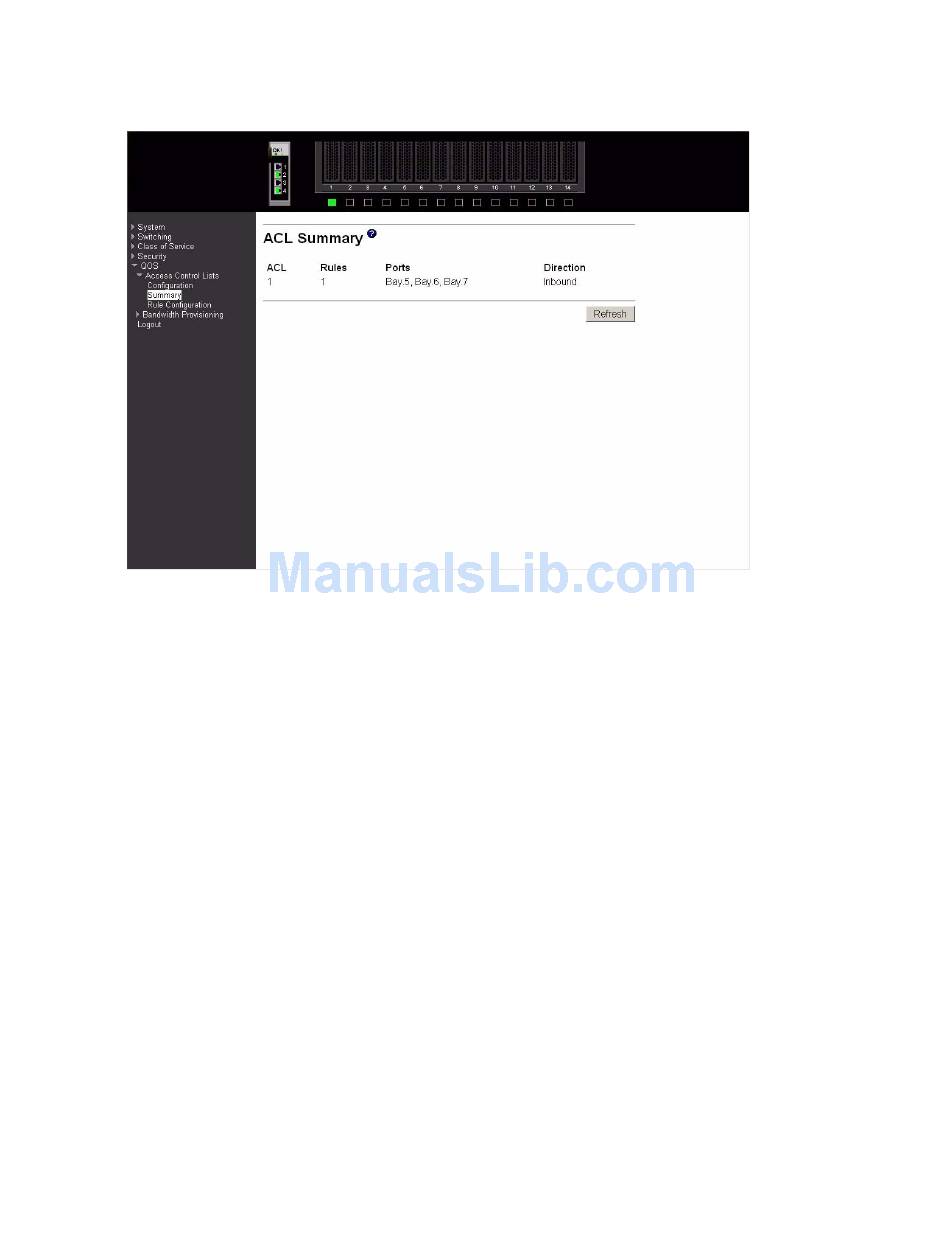

This panel displays a summary of all ACLs on the switch.
ACL
The ACL identifier.
Rules
The number of rules that are associated with this ACL.
Ports
The interfaces that are associated with this ACL.
Direction
The packet filtering direction for the ACL on the interface.
Click the Refresh button to update the screen with the latest information.
Rule configuration
This panel configures the rules associated with an ACL When the screen first displays you will see
the first four fields described below. If you select False as the Match Entry criteria and click Apply,
the screen will be refreshed and you will see the remaining fields. Clicking one of the configure
buttons shown on that screen will display a third screen allowing you to configure the match
criterion you selected.
142
NovaScale Blade 1 GB Intel® Ethernet Switch Module: Installation and User's Guide
