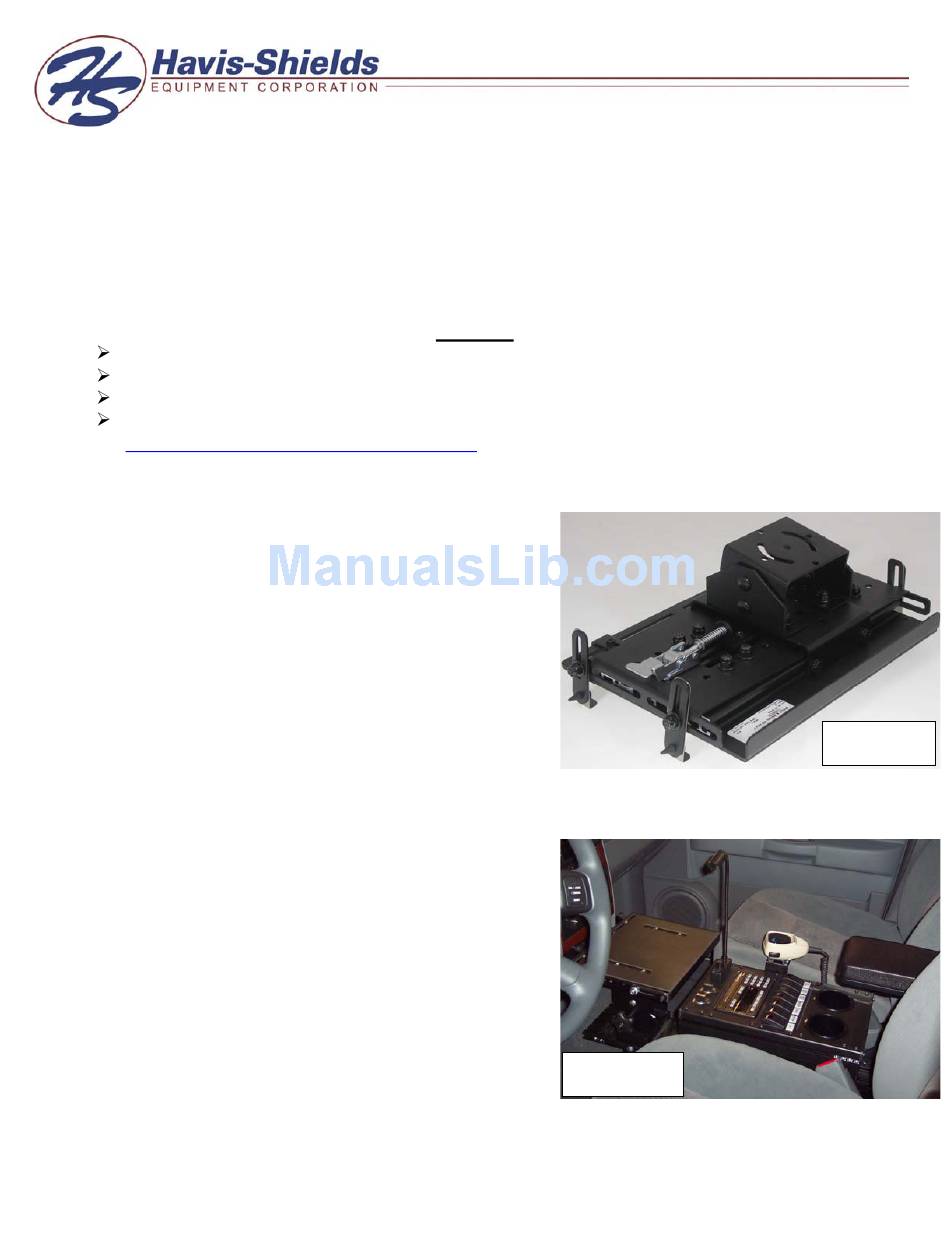

INSTALLATION INSTRUCTIONS C-3090's & C-3089's
COMPUTER LAPTOP MOUNT AND ACCESSORIES
TOOLS NEEDED:
Ratcheting wrench
Standard socket set
Open-end wrench set
Read all instructions before installing any Havis-Shields Equipment Corp products.
Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!
Use hardware provided with install kit
For product support, visit the Install Instructions Section of our website at
http://havis.com/Installation/Installation.html
1. MOUNTING C-3090-3 or 4 & C-3089-3 or 4 to C-TCB'S
• Photo #3 on page #2 is a basic assembly
instruction of a C-3090-3 (w/ tilt/swivel)
mounting to a C-TCB-x.

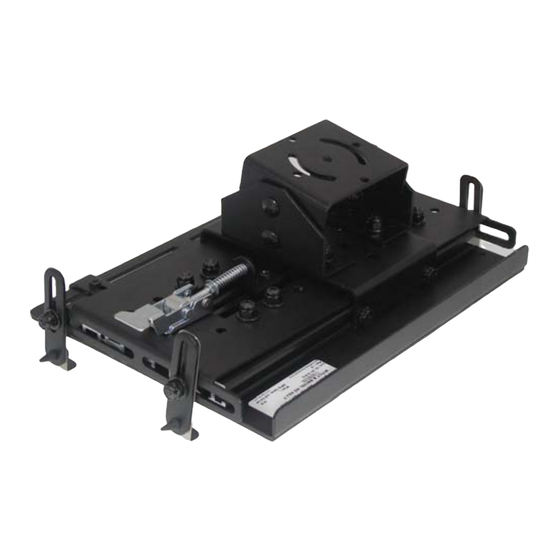

• The tilt/swivel assembly, (Photo #1), which
comes pre-assembled to the C-3090 from the
factory, will bolt directly to the rotating plate,
using the hardware loosely attached to the
plate. You do not need to unassembled the
tilt/swivel from the C-3090.
Note: Be sure the 2" fender washer is assembled between
the rotating plate and the tilt/swivel assembly.
2. C-3090-1 or 2 & C-3089-1 or 2 MOUNTING TO
VEHICLE TRAK MOUNTS:
• The C-3090 will come pre-assembled with
tilt/swivel attached.
• Mount trak kit into vehicle.
• Place console and C-3090 into desired
position on trak. (Photo #2)
Note: Be sure assembly does not interfere with dash or
console.
• Slide ¼-20 hex nuts into slots on side of trak
in location to mount C-3090.
• Attach C-3090 to trak using ¼-20 x ½" hex
bolts and washers. Tighten in desired area.
Allen wrench set
Screwdriver set
Always!
Photo #2
Photo #1
Advertisement
Table of Contents
Related Manuals for Havis-Shields Computer Laptop Mount and Accessories C-3089's
Summary of Contents for Havis-Shields Computer Laptop Mount and Accessories C-3089's
- Page 1 Ratcheting wrench Standard socket set Open-end wrench set Read all instructions before installing any Havis-Shields Equipment Corp products. Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes! Use hardware provided with install kit For product support, visit the Install Instructions Section of our website at http://havis.com/Installation/Installation.html...
- Page 2 3. ADJUST C-3090 PLATFORM FOR SPECIFIC LAPTOP: • The C-3090 will need to be adjusted to properly hold your particular laptop. Note: Do not adjust the latch on the underside of the laptop. • Loosen the “L” clamps on the sides of the C-3090.
- Page 3 • Loosen ¼-20 nylock nuts on the plate on underside of laptop assembly and adjust to width of laptop. • Adjust “L” brackets to clamp the laptop firm. • Release latch and test for strength. Adjust if necessary. Photo #4 4.
- Page 4 6. MOUNTING C-TMLOCK • Photo #7 shows the C-TMLOCK option, which comes assembled from the factory if ordered with the C-3090. • Remove 8-32 keps nuts that hold down OEM latch on laptop computer mount. • Remove Pem studs from laptop computer mount and replace with Pem studs included with C-TMLOCK assembly.
