Havis-Shields C-TCB-31 Installation Instructions

INSTALL INSTRUCTIONS C-TCB-31
2004-2007 FORD F-150

TOOLS REQUIRED:

Standard Socket Set
Open-end Wrench Set

HARDWARE:

QTY DESCRIPTION
1 5/16-18 x 1" Hex head bolt
2 5/16" Flat washers
1 5/16-18 Nylock Nut

SUB ASSEMBLY:

1. Identify hardware and components.
2. Remove inner and outer seat base bolts on passenger side front seat.

INSTALLATION:

1. POSITION C-TCB-31:

• Lean seat back and slide C-TCB-31 Base between floor of vehicle and seat base on
inner bolt.
• Screw in factory seat base inner bolt and hand tighten at this time.
• Slide cross brace under passenger seat base outer bolt.
• Screw in factory seat base outer bolt and hand tighten at this time.
• Bolt cross brace to tab on square tube of Base using 5/16-18 x 1" Hex head bolt,
washers and Nylock nut.
•
Tighten all bolts at this time.
Note: It is recommended to mount C-TCB-31 base as far under seat base as possible.

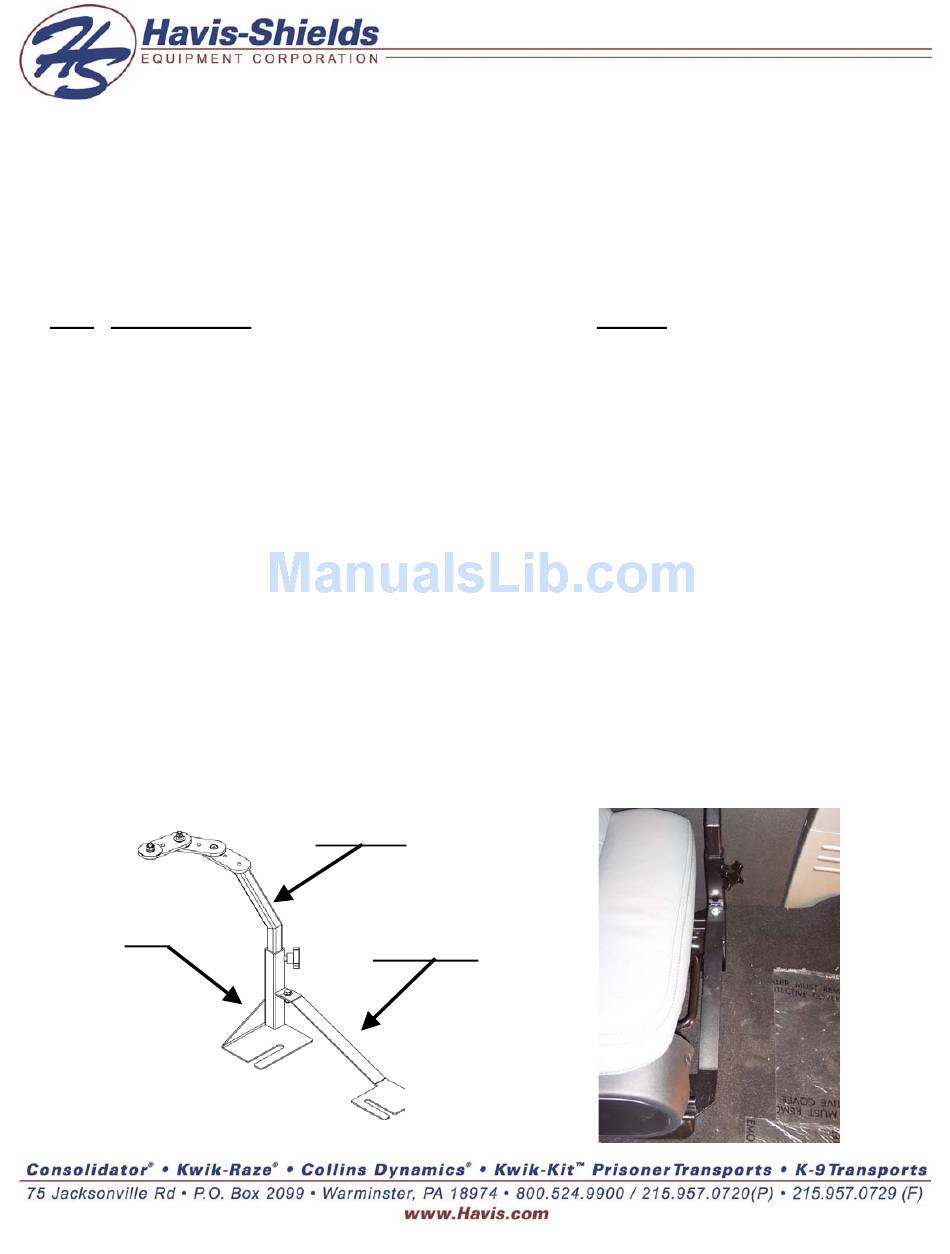

Base
(EXCLUDING HERITAGE)
Inner Pole
Cross Brace
Ratcheting Wrench
PART #
GSM33012
GSM31006
GSM30017
C-TCB-31-INST-1-07
