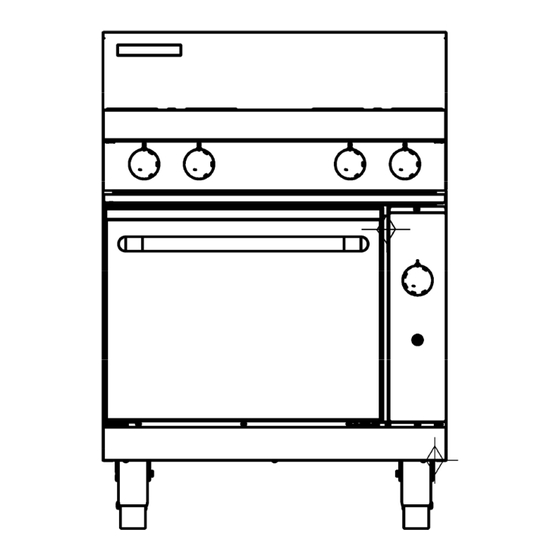

- Page 1 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L GAS RANGE STATIC OVEN G505 G506 G508 For use in GB, IE & DK...
- Page 2 Moffat Limited PO Box 10001 Christchurch New Zealand (03) 389 1007 Fax: (03) 389 1276 WORLD-WIDE BRANCHES UNITED KINGDOM Blue Seal Unit 67, Gravelly Business Park Gravelly Park Birmingham West Midlands B24 8TQ (121) 327 5575 Fax: (121) 327 9711...
-
Page 3: Table Of Contents
Contents List Blue Seal Gas Static Oven Range G505 Gas Range Static Oven - 750 mm wide. G506 Gas Range Static Oven - 900 mm wide. G508 Gas Range Static Oven - 1200 mm wide. Introduction ....................2 Specification ....................3... -
Page 4: Introduction
Introduction We are confident that you will be delighted with your BLUE SEAL GAS RANGE STATIC OVEN and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Blue Seal appliance, there are two important things you can do. -
Page 5: Specification
Specifications Model Numbers Covered in this Specification G505D[1] Gas Static Oven + 4 Open Burners. G505C[1] Gas Static Oven + 2 Open Burners + 300 mm Griddle. G506D[1] Gas Static Oven + 6 Open Burners. G506C[1] Gas Static Oven + 4 Open Burners + 300 mm Griddle. G506B[1] Gas Static Oven + 2 Open Burners + 600 mm Griddle. - Page 6 Specifications - CE Only Appliance Classification Category: (20, 30 / 37). 2H3P Flue Type: Natural Gas (G20) Propane (G31) Open Burner Griddle Open Burner Griddle Oven Oven (each) (each 300mm section) (each) (each 300mm section) Nominal 6.5 kW 5.5 kW 8.0 kW 6.5 kW 5.5 kW...
-
Page 7: Dimensions
Dimensions G505 Cook Top Options G505D G505C... - Page 8 Dimensions G506 Cook Top Options G506D G506C G506A G506B...
- Page 9 Dimensions G508 Cook Top Options G508D G508C G508B G508A...
-
Page 10: Installation
Blue Seal Gas Range Static Ovens are designed to provide years of satisfactory service, and correct installation is essential to achieve the best performance, efficiency and trouble-free operation. -
Page 11: Clearances
Gas Connection NOTE: ALL GAS FITTING MUST ONLY BE CARRIED OUT BY AN AUTHORISED PERSON. Blue Seal Ranges do not require an electrical connection, as they function totally on the gas supply only. It is essential that the gas supply is correct for the appliance to be installed and that adequate supply pressure and volume are available. - Page 12 Installation The regulator connections are " BSP female. The connection to the appliance is " BSP male. (Refer to the “Specifications” section for the gas supply location dimensions). NOTE: A Manual Isolation Valve must be fitted to the individual appliance supply line. Correctly locate the appliance into its final operating position and using a spirit level, adjust the legs so that the appliance is level and at the correct height.
-
Page 13: Operation
Blue Seal appliances have been designed to provide simplicity of operation and 100% safety protection. Improper operation is therefore almost impossible, however bad operation practices can reduce the life of the appliance and produce a poor quality product. To use this appliance correctly please read the following sections carefully:- •... -
Page 14: Open Burners
Operation Open Burners NOTE: Only cooking pans from size Ø 150 mm to Ø 420 mm are suitable fo use on these open burners. Flame Failure Option (F-Models) Lighting the Open Burners Flame Failure Protection is incorporated for each burner by way of a thermo-electric system which will shut off the gas supply to that burner in the event that the burner goes out, so that un-burnt gas is not expelled. -
Page 15: Griddle
Operation Griddle AUTIO N The griddle plate temperature reaches over 300°C in hottest points during normal operation at 'Full Flame' setting. Lighting the Griddle a. Depress the gas control knob and rotate anti-clockwise to the ‘PILOT’ position. b. With the gas control knob depressed, press the piezo ignition button to ignite the pilot burner. Repeat Items 1 to 2 until the pilot is lit. -
Page 16: Lighting The Oven Pilot Burner
Operation Lighting the Oven Pilot Burner Pilot Burner viewing holes ! IMPORTANT DO NOT USE aluminium foil or trays directly on the cast iron sole plate(s). NEVER block or cover the openings on each side of the sole plate(s). This oven is fitted with a pilot as a standard option and flame failure protection, which is incorporated by way of a thermo-electric system for the main burner. -
Page 17: Oven 'Shut Down
Operation Control Knob in Oven ‘Shut-Down’ ’Off’ Position NOTE: DO NOT attempt to rotate the Thermostat Control Knob anti-clockwise back to the ‘O’ Off position as the Knob and Gas Valve will be damaged. partially depress To turn 'Off' the oven completely, thermostat control knob whilst turning clockwise to the 'O' Off position, the pilot burner will extinguish. -
Page 18: Cleaning And Maintenance
Cleaning and Maintenance AUTIO N Always turn off the gas supply before cleaning. This appliance is not water proof. Do not use water jet spray to clean interior or exterior of this appliance. General Clean the range regularly. A clean range looks better, will last longer and will perform better. Carbonised grease on the surface or between the trivets, griddle plates will hinder the transfer of heat from the cooking surface to the food. -
Page 19: Daily Cleaning
Cleaning and Maintenance Daily Cleaning The grease / spill tray(s) should be checked and emptied frequently to prevent overflow and spillage. Remove the grease / spill tray(s) while still warm so that the grease is in a liquid state. Empty any grease from the trays and wash thoroughly in the same manner as any cooking utensil. Remove the burner caps and bases, the trivets and thoroughly clean the splash back, interior and exterior surfaces of the range with hot water, a detergent solution and a soft scrubbing brush. - Page 20 Cleaning and Maintenance Trivets and Burners Burner Cap a. Remove the trivets from the top of the appliance, taking note that the trivets are manufactured with a lip on one edge, the lip must always be fitted to the outer edge (front and back) of the cook top. (Refer to Fig 10 overleaf).
-
Page 21: Oven Interior
Cleaning and Maintenance Notice Lip on NOTE: It is imperative that the trivet supports are correctly Trivet Edge re-fitted to the appliance to ensure that the trivets locate correctly and sit flush and level. NOTE that the trivet support front end, side rail profiles are different at either side (See Fig 6) and only one of the side rails... -
Page 22: Fault Finding
Fault Finding This section provides an easy reference guide to the more common problems that may occur during the operation of your appliance. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers the most common problems reported, you may encounter a problem not covered in this section. -
Page 23: Gas Conversion And Specifications
Gas Conversion and Specifications Conversion Procedure AUTIO N Ensure that the appliance is isolated from the gas supply before commencing servicing. Burner NOTE: • These conversions should only be carried out by qualified persons. All connections must be checked for leaks before re-commissioning the appliance. - Page 24 Gas Conversion and Specifications Notice Lip on Refit all the trivet supports to the top of the appliance. Note Trivet Edge the orientation of the trivet support when re-fitting as the front end side rail profiles are different from the rear end side rail profiles.
- Page 25 Gas Conversion and Specifications Pilot Injectors a. Unscrew and remove the Pilot Injector Plug from the fitting at the end of the pilot injector tube using a 11 mm A/F Pilot Injector Housing spanner. (Refer to Fig 23). b. Using a flat bladed screwdriver, unscrew and remove the pilot injector from the pilot injector housing.
- Page 26 Gas Conversion and Specifications Griddle Pilot Burner a. With the gas supply turned off at the main supply, Gas Control remove the griddle plate section by lifting it Heat Shield straight off the cook top. b. Remove the gas control heat shield from around the griddle burner, this is just a push in fit.
- Page 27 Gas Conversion and Specifications Shown with door removed for ease of viewing Oven Injector: a. With the gas supply turned off at the main supply, unscrew and remove the 6 screws securing the lower lintel to the front of the oven. (See Fig 30).
-
Page 28: Gas Regulator
Gas Conversion and Specifications Gas Regulator NOTE: The regulator supplied is convertible between Natural Gas and LPG, but it’s outlet pressure is fixed ex-factory and is NOT to be adjusted. NOTE, Pin rotated for Natural Gas NOTE, Pin rotated for LPG Fig 34 Ensure that the gas supply is turned ‘OFF’... -
Page 29: Gas Specifications
Gas Conversion and Specifications Commissioning Before leaving the converted installation; Check all gas connections for leakages using soapy water or other gas detecting equipment. WARNING: NAKED FLAME O NOT USE A TO CHECK FOR GAS LEAKAGES Check the following functions in accordance with the operating instructions specified in the ‘Operation’... - Page 30 Gas Conversion and Specifications - CE Only Appliance Classification Category: (20, 30 / 37). 2H3P Flue Type: Natural. Gas Propane (G20) (G31) Main Burner Injectors Ø 2.30 mm Ø 1.40 mm Open Burner Pilot Burner ('PF' Models Only) 0.30 0.20 Main Burner Ø...
-
Page 31: Replacement Parts List
Replacement Parts Replacement Parts List IMPORTANT: Only genuine authorized replacement parts should be used for the servicing and repair of this appliance. The instructions supplied with the parts should be followed when replacing components. For further information and servicing instructions, contact your nearest authorized service branch (contact details are as shown on the reverse of the front cover of this manual). - Page 32 Ø 0.55mm. 227508 Piezo Ignitor. 230363 Knob Oven - (100 - 275°C). General 227014 Pot Stand / Trivet. 228884 Spill Tray (G505 Series). 228883 Spill Tray (G506 Series). 228882 Spill Tray (G508 Series). 227892 Oven Side Rack LH. 227893 Oven Side Rack RH.
