iConvert
®

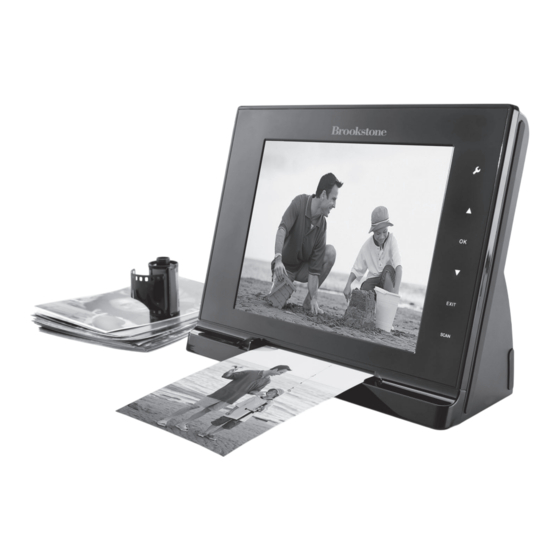

Instant Scan Digital Frame
Scan, Save and enjoy—no computer needed!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iConvert and is the answer not in the manual?

Questions and answers

Related Manuals for Brookstone iConvert

Summary of Contents for Brookstone iConvert

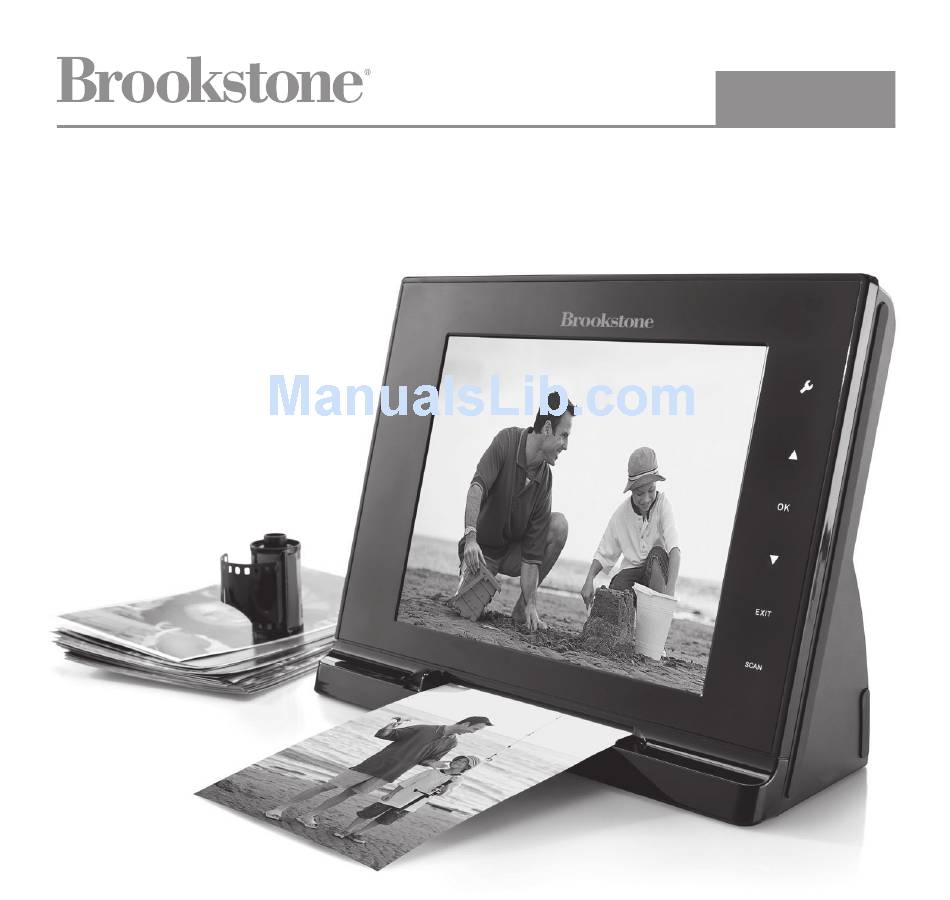

  • Page 1 ® Instant Scan Digital Frame Scan, Save and enjoy—no computer needed!

  • Page 2: Table Of Contents

    Table of conTenTs Warnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Location of Parts and Controls .

  • Page 3: Warnings And Cautions

    caUTIon • TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER . THERE ARE NO SERVICEABLE PARTS INSIDE . • TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE . The lightning flash with arrow-head symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage”...
  • Page 4 DanGeR To reduce the risk of electric shock, burns, fire or injury: Always unplug the unit from the electrical outlet immediately after using . Do not use while bathing or in a shower . Do not place or store unit where it can fall or be pulled into a tub or sink . Do not place in or drop into water or other liquid .
  • Page 5 WaRnInG Keep away from children . This is not a toy . Use this unit only for its intended use as described in this manual . Unplug this unit during lightning storms or when unused for long periods of time . Never drop or insert an object into any opening .
  • Page 6 fcc InfoRMaTIon This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC Rules . These limits are designed to provide reasonable protection against harmful interference in a residential installation . This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications .
  • Page 7 1 . This equipment may not cause harmful interference . 2 . This equipment must accept any interference received, including interference that may cause undesired operation . Modifications not authorized by the manufacturer may void the user’ s authority to operate this device . save These InsTRUcTIons...

  • Page 8: Location Of Parts And Controls

    locaTIon of PaRTs anD conTRols...
  • Page 9 locaTIon of PaRTs anD conTRols Remote Control Sensor: Receive the signals from remote control . Setup: Press to access the setup menu* . Up: Moves up in the menus* . OK: Press to make selections in the menus or setting modes* . Down: Moves down in the menus* .

  • Page 10: Location Of Controls

    locaTIon of conTRols...
  • Page 11 locaTIon of conTRols Setup: Press to access the Setup Menu . mode: Press to return to the Main Menu . Moves left/right in the menus in all modes except Video mode . In Video mode, these buttons control fast backward/fast forward during video playback .

  • Page 12: Remote Control Battery Installation

    ReMoTe conTRol baTTeRY InsTallaTIon If the remote control is being used for the first time, remove the insulating mylar strip from the battery compartment to allow contact . To replace the battery, press and hold the battery release tab in the direction of arrow as shown in the diagram on the back of the remote control .
  • Page 13 ScannIng a photo Power on the unit . Press the Scan button to enable the scan function . Adjust the Paper Feed Guide on the scanner to the size of your photo . Insert the picture in the Protective Sleeve (if needed) face up and push it forward into the Photo Feed Slot until the picture is automatically pulled in and scanned .
  • Page 14 Save thIS Image to highlight Save this Image, then press Press to save . A status message will appear on the screen to indicate when the photo is saved . Image showing the photo being saved is in progress . note: Saved scanned images are saved into the Scanned Image folder on the frame.

  • Page 15: Select A Storage Device

    exIt Scan mode to highlight exit Scan mode, then press Press to exit and return to the Scanned Image mode . The last scanned photo will not be saved in the internal memory . selecT a sToRaGe DevIce This photo frame can play back content from internal and external memory devices such as USB flash drives, and memory cards (MMC, SD, MS/MS pro, CF type I, and xD cards) typically used with digital cameras .

  • Page 16: Photo

    PhoTo THUMBNAIL MODE 1 . From the MAIN MENU, select Photo and press to enter . All photos stored in the selected storage device will be displayed via thumbnail mode first . 2 . Use the buttons to navigate thumbnails . Highlight the photo you would like to view and press view it full screen .
  • Page 17 photo thumbnaIl mode SettIngS Press to access the Settings menu . When finished, press to exit . MENU OPTIONS DESCRIPTIONS Copy to This option allows you to copy the selected photo and/or scanned image from the current memory device to other available memory device(s) .
  • Page 18 Mark: Allows you to select multiple photos to copy or delete . select Mark several: if you want to select multiple photos . It will bring you back to the buttons and press OK to thumbnail screen for photo selection . Use the make your selection (see below) .
  • Page 19 Manual Rotate: Photos can be manually rotated by pressing the button (on the remote) in full screen mode . Each press of this button will rotate the photo by 90º clockwise . auto Rotate: Landscape or portrait display of a photo will be automatically switched according to the unit orientation .

  • Page 20: Menu Options

    photo broWSe mode SettIngS Press to access the Settings menu . When finished, press to exit . menu optIonS deScrIptIonS Copy to This option allows you to copy the selected photo from the current memory device to other available memory device(s) . Delete To delete the selected photo, select Yes .
  • Page 21 photo SlIdeShoW mode Supported photo and audio format: JPEG and MP3 . Press under any mode to begin a Slideshow . Press to exit Slideshow mode . Slideshow settings (see below and on chart on the following page) . During the slideshow mode, press to bring up the Settings menu .
  • Page 22 slIDeshoW MoDe seTTInGs Press to access the Settings menu . When finished, press to exit . menu optIonS deScrIptIonS Display Image Size • Select normal to display photos in their original aspect ratio . Black bars may appear on the left/right or top/ bottom sides of the screen, depending on whether the photos are taken in landscape or portrait format .

  • Page 23: Scanned Image

    scanneD IMaGe Supported storage format: JPEG By default, photos that you have scanned are stored in the Scanned Image folder in the internal memory . To browse the scanned photos, select the Scanned Image from the Main Menu and press to enter .
  • Page 24 tranSFer the Scanned ImageS to a computer When connecting to a PC, the photo frame allows you to transfer music, video and photo files between the photo frame’ s internal memory, a memory card inserted and PC . To copy the scanned images to a computer from the internal memory, please connect the unit to a computer via the mini USB cable (supplied) .
  • Page 25 5 . It may take a few seconds for Windows to recognize the photo frame . When the ® photo frame is recognized, 3 new removable drives should appear in Windows ® Explorer . One of these drives is labeled SCANFRAME, representing the internal memory of the photo frame .

  • Page 26: Music

    MUsIc Supported audio format: MP3 . Current mode Current page/ Total pages Selected audio Play back status: Volume bar Play Pause Stop Audio elapsed time/ Audio total time Use the buttons to select the Music under the Main Menu, then press to enter .

  • Page 27: Audio Mode Menu

    aUDIo MoDe MenU Press to access the Settings menu . When finished, press to exit . menu optIonS deScrIptIonS Copy to This option allows you to copy the selected music from the current memory device to other available memory device(s) . Delete To delete the selected music, select Yes .

  • Page 28: Video

    vIDeo Supported video format: MPEG-1 and MPEG-4 Current mode Current page/ Total pages Selected video Volume bar Use the buttons to select Video under the MAIN MENU, then press to enter . All the available video files in the selected memory device will be listed on the screen .

  • Page 29: Video Mode Menu

    vIDeo MoDe MenU Press to access the Settings menu . When finished, press to exit . menu optIonS deScrIptIonS Copy to This option allows you to copy the selected video from the current memory device to other available memory device(s) . Delete To delete the selected video, select Yes .

  • Page 30: Calendar Mode Menu

    calenDaR MoDe MenU Press to access the Settings menu . When finished, press to exit . menu optIonS deScrIptIonS Set Clock Set the system time for the unit . Press buttons on the remote, or the OK button on the scanner, to switch between the HOUR, MINUTE and 12/24 fields .
  • Page 31 Set Date Set the system date for the unit . Press switch between the DAY, MONTH and YEAR fields . Press to change the value . When finished, press oK to confirm . Slideshow Photo This option allows you to activate slideshow in the clock/calendar display .

  • Page 32: System Setup

    sYsTeM seTUP Use the buttons to select Setup under the MAIN MENU, then press to enter . Press buttons to select or cycle through available options (see below) . seTUP MoDe MenU optIon deScrIptIon Language Choose from available On Screen Display languages . Sleep Timer Select a time to automatically turn off the frame, or select off to not use this option .

  • Page 33: Printing Photos

    PRInTInG PhoTos Press POWER button to turn on the unit . Press to bring up the System Setup menu under MAIN MENU . Press to select USB Link To, then press Press to select Printer, then press Use the mini-USB cable (included) and connect it to the back of the unit and the other end to a PictBridge compatible printer .

  • Page 34: Frequently Asked Questions

    fReqUenTlY askeD qUesTIons Q . Why is the clock not keeping the time? A . The clock will only maintain the correct time and date when powered on . Q . How far away can I use the remote control? A .
  • Page 35 fReqUenTlY askeD qUesTIons (contInued) Q . Why does the Scan function not work? • A . #1 Make sure the scanner guide is adjusted properly to allow you to insert your photo . • A . #2 Gently push the photo until it is grasped and pulled through the scanner and into the Photo Feed Slot .

  • Page 36: Specifications

    sPecIfIcaTIons panel SpecIFIcatIon Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8" Aspect ratio .
  • Page 37 sPecIfIcaTIons (conTInUeD) Scanner Scanning Module Type, Size . . . . . . . . . . . . . . Sheet Feed Type, A6 Scan photo size . . . . . . . . . . . . . . . . . . . . . . . . . 1 . 5 " x 2" ~ 4" x 6" Resolution .

  • Page 38: Warranty

    (“Warranty Period”) . If a defect arises and a valid claim is received within the Warranty Period, at its option, Brookstone will either 1) repair the defect at no charge, using new or refurbished replacement parts, or 2) replace the product with a new product that is at least functionally equivalent to the original product, or 3) provide a store credit in the amount of the purchase price of the original product .
  • Page 39 Brookstone, in so far as permitted by law, provides these products “as is . ” This warranty does not apply to: a) damage caused by failure to follow instructions relating to product’s use or the installation of components; b) damage caused by accident, abuse, misuse, fire, floods, earthquake or other external causes;...
  • Page 40 Merrimack, New Hampshire USA 03054 • 800-846-3000 • www . B rookstone . c om 641076...
