Expand Your Factory Radio
Harness Connection
Port 1
Port 2
GM
Owner's Manual

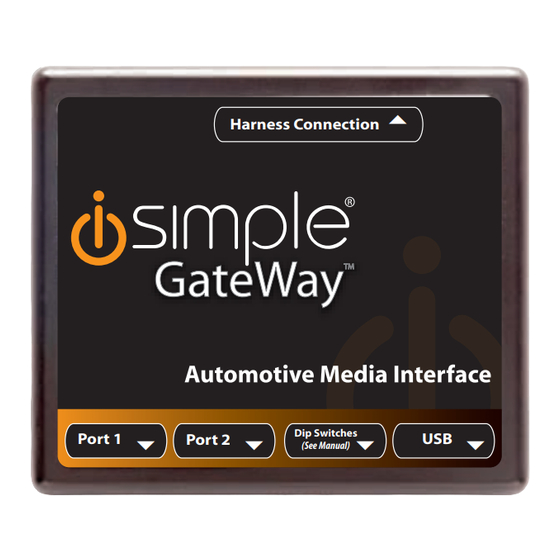

Media Gateway
PXAMG
PGHGM2
iSimple®
A Division of AAMP of America™
13190 56th Court Clearwater, FL 33760
Ph. 866-788-4237
support@isimplesolutions.com
©2009 AAMP of Florida, Inc.
www.isimplesolutions.com
Dip Switches
USB
(See Manual)
add
add
iPod
iPod
®
®
rev.10-29-10
Advertisement
Table of Contents
Related Manuals for iSimple Media Gateway PXAMG PGHGM2
Summary of Contents for iSimple Media Gateway PXAMG PGHGM2
- Page 1 ® Harness Connection Dip Switches Port 1 Port 2 (See Manual) Owner’s Manual Media Gateway PXAMG PGHGM2 iSimple® A Division of AAMP of America™ 13190 56th Court Clearwater, FL 33760 Ph. 866-788-4237 support@isimplesolutions.com ©2009 AAMP of Florida, Inc. www.isimplesolutions.com rev.10-29-10...
-
Page 2: Table Of Contents
Table of Contents Pages 1. Introduction 2. Precautions 3. Compatibility 4. Dipswitch Settings 5. Installation 6. iPod Operation 7. HD Radio Operation (if equipped) 8. Sirius Satellite Radio Operation (if equipped) Selecting AUX Input Selecting Factory Satellite (if equipped) 10. Troubleshooting 11. - Page 3 Media Gateway & Optional Add-ons *The Media Gateway Factory Radio will only support 2 Not Included inputs. iPod Media Gateway Harness Not Included Part #: PGHGM2 Media Gateway Harness Connection Harness Connection Part #: PXAMG Dip Switches ...
-
Page 4: Introduction
1. Introduction ® Thank you for purchasing the iSimple Media Gateway. The Media Gateway is designed to provide endless hours of listening pleasure from your factory radio. To ensure that your iPod performs correctly with your radio, we recommend that you read this entire manual before attempting installation of the Media Gateway. -
Page 5: Compatibility
3. Compatibility Your vehicle MUST either be equipped with, or have the ability to support Satellite Radio. Please visit www.isimplesolutions.com for the most up to date application information and to verify your vehicle’s compatibility. 4. Dipswitch Settings All 4 dipswitches MUST be set in the OFF (up) position for proper operation. ALL VEHICLES... -
Page 6: Installation
Media Gateway. Connect the other end of this cable into the HD Radio tuner. Connect the factory antenna cable into the antenna connection on the HD Radio tuner (HDRT) Using a iSimple BAA20 antenna adaptor if needed to make this connection. -
Page 7: Ipod Operation
8. To complete the installation secure the Media Gateway (PXAMG) and HD Radio tuner (HDRT) into the cavity in the dash behind the radio. Be sure that the cables and interface modules are not near moving parts or sharp metal edges as they may damage the cables. -
Page 8: Hd Radio Operation (If Equipped)
Browse by Artist Please Note: Ipods with large amounts of music on them require time to synchronize with the Media Gateway. While this process is taking place neither the Browse Menu or Mode Select Menu will be available. This process takes place every time you enter the iPod mode and can last up to one minute. -
Page 9: Sirius Satellite Radio Operation
Changing Bands To switch between AM and FM bands, press the CAT button until AM or FM is displayed on the screen. Press one of the two softkeys under the text to select the desired band. Store Presets To Store a station into the Preset memory, tune to the station, to enter the preset menu, press the “FWD>>”... -
Page 10: (If Equipped)
Changing Display: Press the “i” button to display artist and track information 9. Selecting AUX Input Entering Mode Select Menu Press the “BAND” button a few times until XM is displayed on the screen. Immediately turn the rotary TUNE KNOB in the top right hand corner to scroll through available sources. -
Page 11: Troubleshooting
10. Troubleshooting Symptom Cause Remedy Radio shows iPod not iPod cable is not connected to Verify the docking cable is connected to the connected iPod or Gateway. Media Gateway, and the iPod The iPod firmware may be out Update iPod firmware for free at http://www. I can not correctly control the iPod of date. -
Page 12: Warranty Info
(including water damage) resulting from malfunctions, defects, misuse, improper installation or alteration of this product. All parts of this iSimple product are guaranteed for a period of 1 year as follows: Within the first 12 months from date of purchase, subject to the conditions above, ®... - Page 13 NOTES:...
- Page 14 NOTES:...
- Page 15 NOTES:...
- Page 16 www.isimplesolutions.com For Best Performance Have It Professionally Installed.
