Expand Your Factory Radio

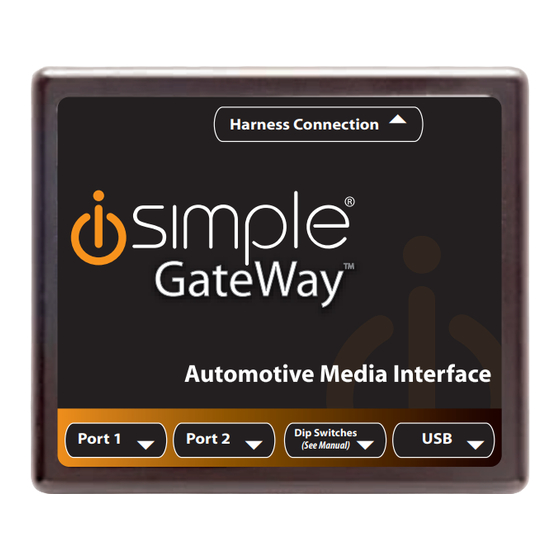

Harness Connection
Port 1
Port 2
SUBARU
Forrester • Legacy
Outback • Tribeca
Impreza
Owner's Manual
Media Gateway
PXAMG
PGHSB1
iSimple®
A Division of AAMP of America™
13190 56th Court Clearwater, FL 33760
Ph. 866-788-4237
support@isimplesolutions.com
©2009 AAMP of Florida, Inc.
www.isimplesolutions.com
Dip Switches
USB
(See Manual)
add
iPod
Rev. 3-19-10
®
Inst024
Advertisement
Table of Contents
Related Manuals for iSimple Media Gateway
Summary of Contents for iSimple Media Gateway
- Page 1 Port 1 Port 2 (See Manual) SUBARU Forrester • Legacy Outback • Tribeca Impreza Owner’s Manual Media Gateway PXAMG PGHSB1 iSimple® A Division of AAMP of America™ 13190 56th Court Clearwater, FL 33760 Ph. 866-788-4237 support@isimplesolutions.com ©2009 AAMP of Florida, Inc.
-
Page 2: Table Of Contents
Table of Contents Pages 1. Introduction 2. Precautions 3. Compatibility Notes 4. Dipswitch Settings 5. Installation 6. iPod Operation 7. HD Radio Operation 8. Selecting Factory Satellite Radio 6 9. Troubleshooting 10. Warranty Info... - Page 3 Media Gateway & Optional Add-ons Factory Radio Not Included iPod Media Gateway Harness Not Included Part #: PGHSB1 Harness Connection Media Gateway Part #: PXAMG Dip Switches Port 1 Port 2 (See Manual) 11Ft. iPod Cable 3Ft. HD Radio Cable...
-
Page 4: Introduction
2. Precautions UPDATING iPod FIRMWARE For proper operation of the Media Gateway, your iPod must be updated with the most recent version of firmware from Apple. This is done on your computer. To update the software on the iPod go to: http://www.apple.com/ipod/download/. Follow the directions on the website to complete the download. -
Page 5: Dipswitch Settings
3. Disconnect the factory 20-Pin harness from the back of the radio. Disconnect the AM/FM antenna from the radio. 5. Connect the 8-Pin mini-din iPod cable into the first port on the Media Gateway (furthest away from dipswitches). Carefully run the 11 foot iPod cable behind the dash to the location where the iPod will be mounted or stored (for example the glove box or center console). -
Page 6: Ipod Operation
HD Radio tuner before reinstalling the factory dash panels. 9. NOTE: The first time you access the Media Gateway, the radio may display “DEV INIT” while the device is initializing. If this is displayed, wait one minute or 60 seconds;... -
Page 7: Hd Radio Operation
“HD-FM” or “HD-AM” is displayed on the screen. When you press the SAT button, you will see the corresponding SAT mode (for example SAT 1), a slight delay, and then the current Media Gateway mode will be displayed (HD Radio- iPod-Aux-Sat 1 - Sat 2 - Sat 3). - Page 8 Tune Up Press and release the SEEK ▲ button to manually tune up. For navigation radios, turn the TUNE KNOB clockwise. Seek Up Press and hold the SEEK ▲ button to seek up to the next available station. In the Tribeca you must press the SEEK ▲...
- Page 9 Selecting Factory Installed Satellite Radio (If equipped) Entering Mode Select Menu Press the SAT button repeatedly (Must press SAT button & then use the “Band” icon on navigation radios) until “SAT” is displayed on the screen. When you press the “SAT” button, you will see the corresponding SAT mode (for example SAT 1), a slight delay, and then the current Gateway mode will be displayed (HD Radio-iPod-Aux-Sat 1 - Sat 2 - Sat 3) For instructions on the operation of the factory installed Satellite Radio tuner,...
-
Page 10: Troubleshooting
Radio shows iPod iPod cable is not Verify the docking cable is connected not connected connected to iPod or to the Media Gateway, and the iPod Gateway. the iPod firmware Update iPod firmware for free at http:// I can not correctly control the iPod may be out of date. -
Page 11: Warranty Info
Within the first 12 months from date of purchase, subject to the conditions above, ® iSimple will repair or replace the product at their discretion, if it is defective in material ® or workmanship providing it is returned to an Authorized iSimple dealer, with PROOF OF PURCHASE from an authorized iSimple ® dealer. - Page 12 Notes ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________...
- Page 13 Notes ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________...
- Page 14 www.isimplesolutions.com For Best Performance Have It Professionally Installed.
