Expand Your Factory Radio
Harness Connection
Port 1
Port 2
GM
Owner's Manual

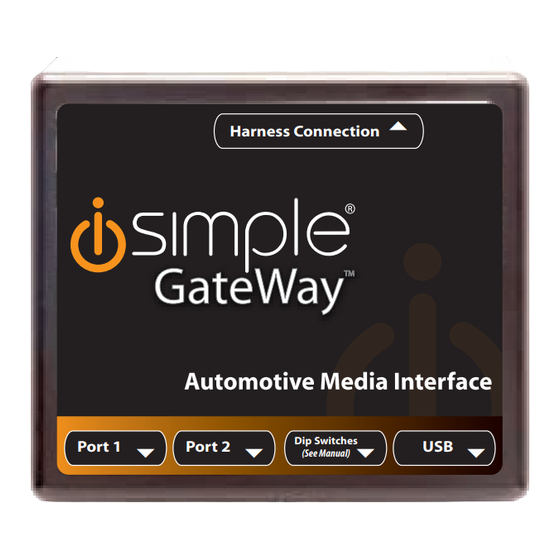

Media Gateway
ISGM11
PGHGM1
iSimple®
A Division of AAMP of America™
13190 56th Court Clearwater, FL 33760
Ph. 866-788-4237
support@isimplesolutions.com
©2009 AAMP of Florida, Inc.
www.isimplesolutions.com
Dip Switches
USB
(See Manual)
add
Satellite
Radio
09-10-09
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for iSimple Media Gateway ISGM11 PGHGM1
Summary of Contents for iSimple Media Gateway ISGM11 PGHGM1
-
Page 1: Satellite Radio

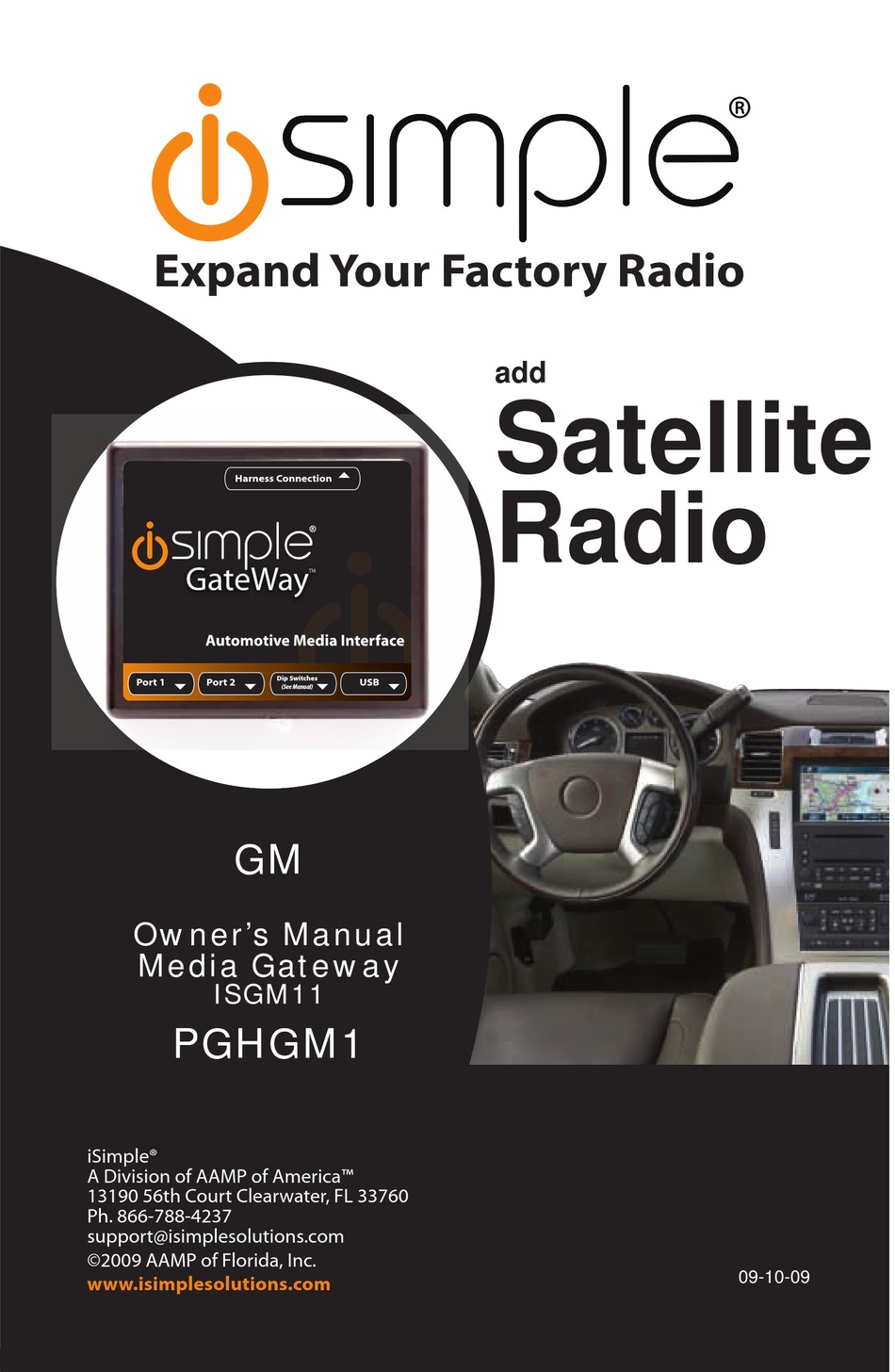

Dip Switches Port 1 Port 2 (See Manual) Owner’s Manual Media Gateway ISGM11 PGHGM1 iSimple® A Division of AAMP of America™ 13190 56th Court Clearwater, FL 33760 Ph. 866-788-4237 support@isimplesolutions.com ©2009 AAMP of Florida, Inc. 09-10-09 www.isimplesolutions.com... -
Page 2: Table Of Contents
Table of Contents Pages 1. Introduction 2. Precautions 3. Compatibility 4. Dipswitch Settings 5. Installation Non-Navigation Radios 6. Selecting Sirius Input Selecting AUX Input Navigation Radios 8. Selecting Sirius Input 9. Selecting Aux Input 10. Troubleshooting 11. Warranty Info... - Page 3 Media Gateway & Optional Add-ons *The Media Gateway Factory Radio will only support 2 Not Included inputs. iPod Media Gateway Harness Not Included Part #: PGHGM1 Media Gateway DVD Player Part #: PXAMG (not included) Harness Connection Harness Connection ...
-
Page 4: Introduction
1. Introduction ® Thank you for purchasing the iSimple Electronics Media Gateway. The Media Gateway is designed to provide endless hours of listening pleasure from your factory radio. To ensure that your module performs correctly with your radio, we recommend that you read this entire manual before attempting installation of the Media Gateway. -
Page 5: Compatibility
3. Compatibility Your vehicle MUST either be equipped with, or have the ability to support Satellite Radio. Please visit www.isimplesolutions.com for the most up to date application information and to verify your vehicle’s compatibility. 4. Dipswitch Settings All 4 dipswitches MUST be set in the OFF (up) position for proper operation. ALL VEHICLES... -
Page 6: Installation
5. Installation 1. When making electrical connections it is always recommended that the vehicle’s battery be disconnected from the electrical system before performing the installation. 2. Carefully remove the trim panels covering the 7mm bolts that secure the radio into the dash cavity. -
Page 7: Non-Navigation Radios
Non-Navigation Radios Sirius Satellite Radio Operation Entering Mode Select Menu Press the “BAND” button a few times until “XM” is displayed on the screen. Immediately turn the rotary TUNE KNOB in the top right hand corner to scroll through available sources. Once “SIRIUS” is displayed, press the “FWD>>” button to select the displayed mode. -
Page 8: Navigation Radios
Navigation Radios Sirius Satellite Radio Operation Entering Mode Select Menu Press the “XM” icon on the navigation screen. Immediately turn the rotary TUNE KNOB in the top right hand corner to scroll through available sources. Once “SIRIUS” is displayed, press the “►” icon on the screen to select the displayed mode. -
Page 9: Troubleshooting
10. Troubleshooting Symptom Cause Remedy The Media The Satellite Tuner HDRT must be connected before the Gateway does was not properly PXAMG is powered on. Disconnect not recognize the connected when the PXAMG from the vehicles harness Satellite Radio the PXAMG was for 5 minutes. -
Page 10: Warranty Info
® tive in material or workmanship providing it is returned to an Authorized iSimple ® dealer, with PROOF OF PURCHASE from an authorized iSimple dealer. - Page 11 www.isimplesolutions.com For Best Performance Have It Professionally Installed.
