Summary of Contents for iSimple Media Gateway ISGM11 PGHGM5

  • Page 1: Satellite Radio

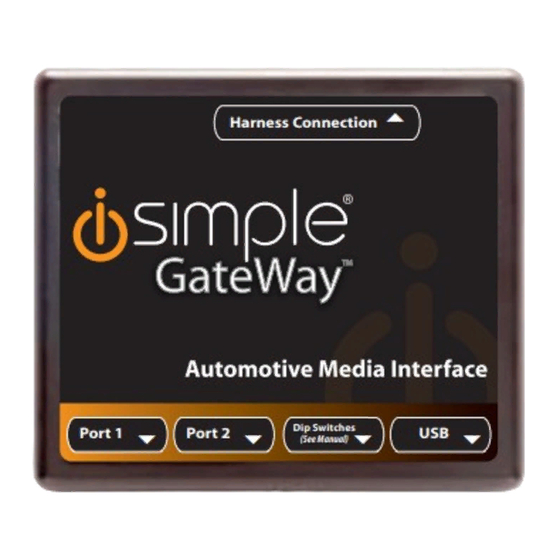

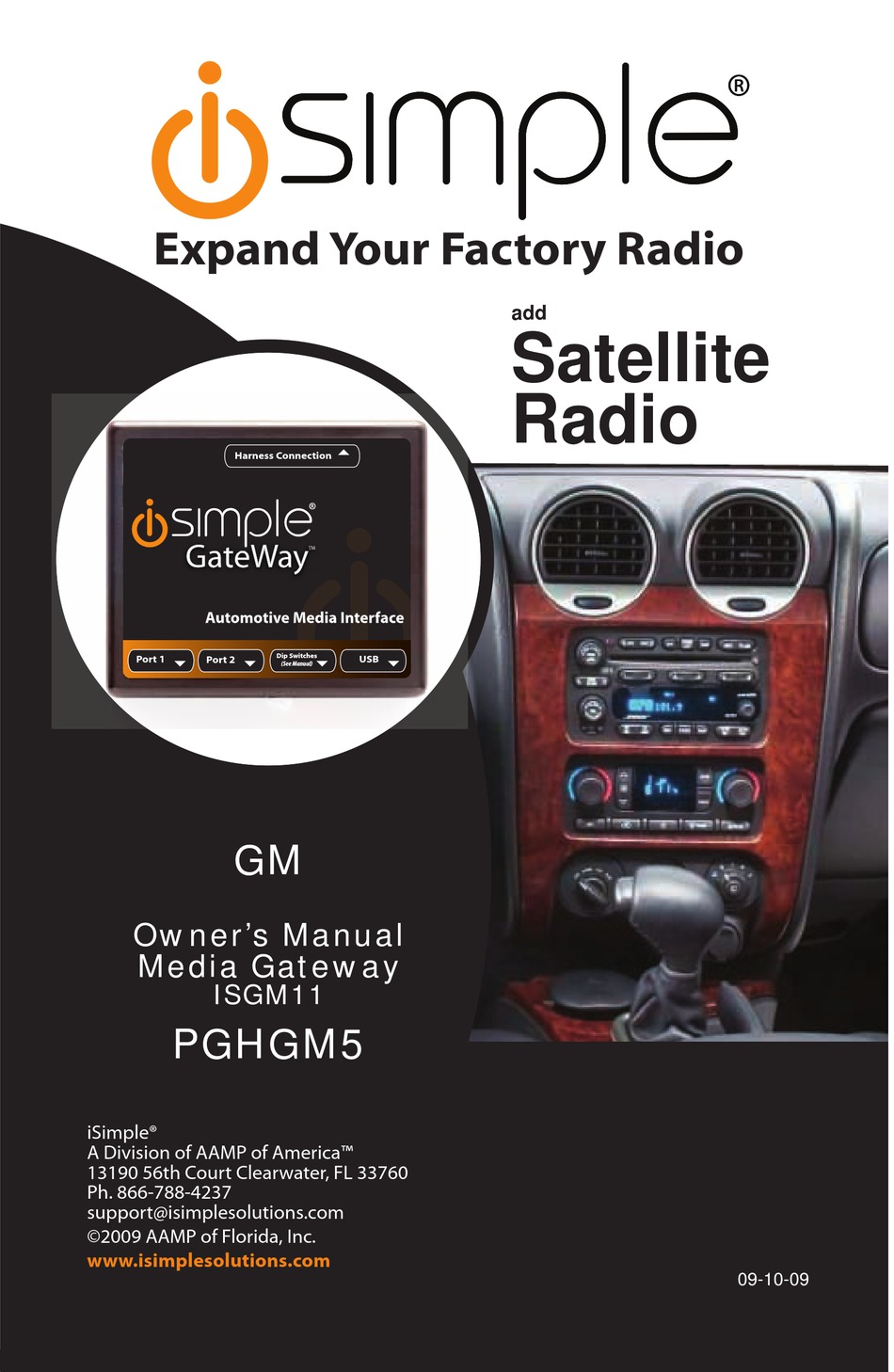

      Port 1 Port 2 (See Manual) Owner’s Manual Media Gateway ISGM11 PGHGM5 iSimple® A Division of AAMP of America™ 13190 56th Court Clearwater, FL 33760 Ph. 866-788-4237 support@isimplesolutions.com ©2009 AAMP of Florida, Inc. www.isimplesolutions.com Rev. 05-05-08 09-10-09 Inst007...
  • Page 2: Table Of Contents

    Table of Contents Pages 1. Introduction 2. Precautions 3. Compatibility Notes 4. Dipswitch Settings 5. Installation Selecting Sirius Input 7. Selecting Aux Input Troubleshooting Warranty Info...
  • Page 3 Media Gateway & Optional Add-ons *The Media Gateway Factory Radio will only support 2 Not Included inputs. iPod Media Gateway Harness Not Included Part #: PGHGM1 Media Gateway DVD Player Part #: PXAMG (not included)  Harness Connection  Harness Connection ...
  • Page 4: Introduction

    1. Introduction ® Thank you for purchasing the iSimple Media Gateway. The Media Gateway is designed to provide endless hours of listening pleasure from your factory radio. To ensure that your iPod performs correctly with your radio, we recommend that you read this entire manual before attempting installation of the Media Gateway.
  • Page 5: Compatibility Notes

    3. Compatibility Notes Your vehicle MUST either be equipped with, or have the ability to support Satellite Radio. Please visit www.isimplesolutions.com for the most up to date application information and to verify your vehicles compatibility. 4. Dipswitch Settings The 2009 Chevrolet Corvette with navigation requires dip switches 1 and 2 on (down) and 3 and 4 off (up).
  • Page 6: Installation

    5. Installation 1. When making electrical connections it is always recommended that the vehicle’s battery be disconnected from the electrical system before performing the installation. 2. Carefully remove the trim panels covering the 7mm bolts that secure the radio into the dash cavity.
  • Page 7: Selecting Aux Input

    6. Sirius Satellite Radio Operation entering Mode Select Menu Press the “BAND” button a few times until “XM” is displayed on the screen. Immediately turn the rotary tUNe KNOB to scroll through the available sources. Once “SIRIUS” is displayed, press “PReSet 6” to select the displayed mode. Channel Up Turn the rotary tUNe KNOB clockwise to move up through the channels Channel Down...
  • Page 8: Troubleshooting

    8. Troubleshooting Symptom Cause Remedy The Media The Satellite Tuner HDRT must be connected before the Gateway does was not properly PXAMG is powered on. Disconnect not recognize the connected when the PXAMG from the vehicles harness Satellite Radio the PXAMG was for 5 minutes.
  • Page 9: Interference Statement

    ® above, iSimple will repair or replace the product at their discretion, if it is defec- tive in material or workmanship providing it is returned to an Authorized iSimple ® dealer, with PROOF OF PURCHASE from an authorized iSimple ®...
  • Page 10 Notes ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________...
  • Page 11 www.isimplesolutions.com For Best Performance Have It Professionally Installed.
