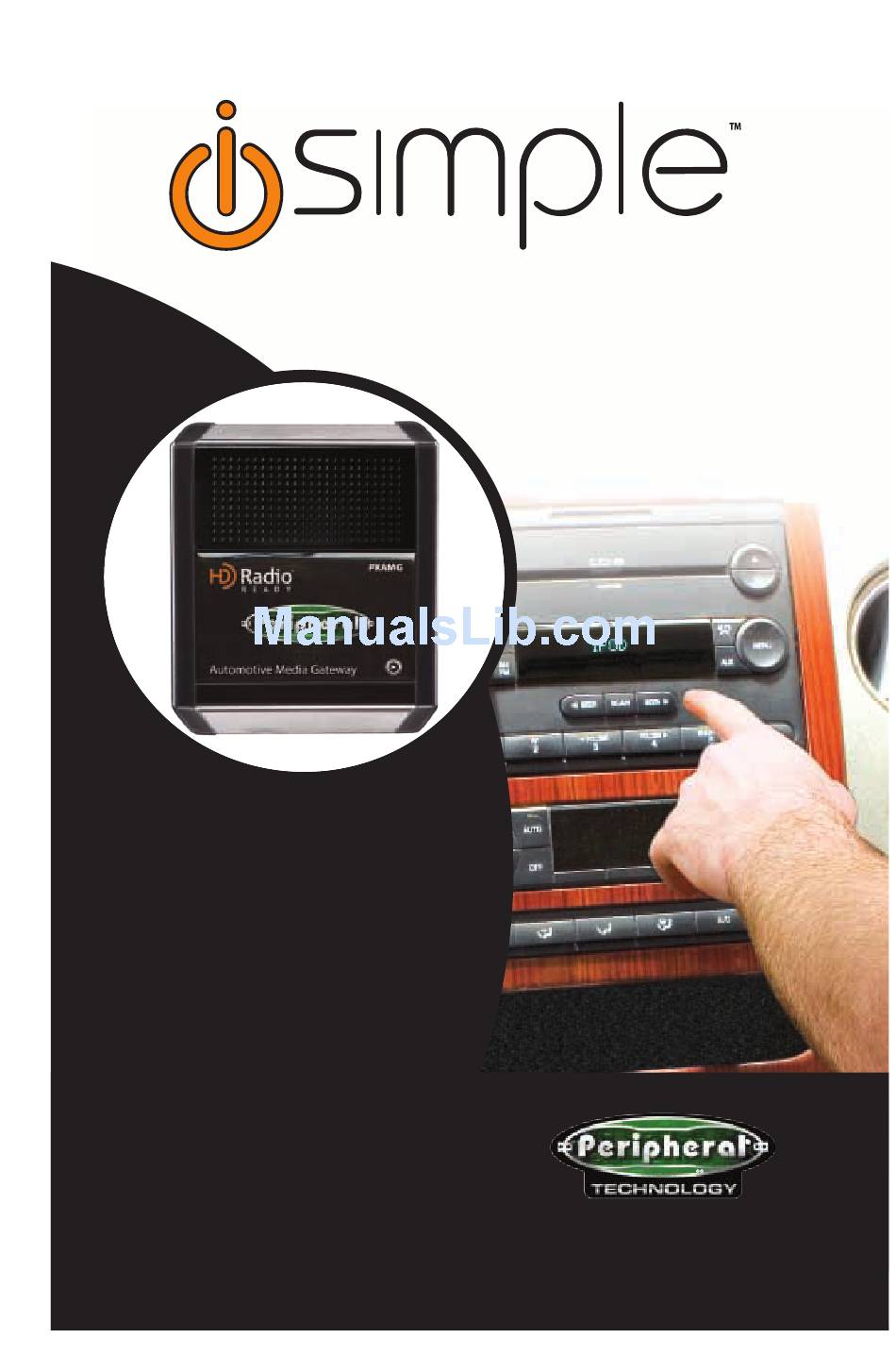

Expand Your Factory Radio
FORD
Owner's
Manual
Owner's Manual
Media Gateway
PXAMG
Media Gateway
ISFD73
PXAMG
Peripheral Electronics
Peripheral Electronics
a division of AAMP of America™
a division of AAMP of America™
13160 56th Court Clearwater, Florida 33760
13160 56th Court Clearwater, Florida 33760
Ph. 866-788-4237
Ph. 800-477-2267 ext. 230
support@peripheralelectronics.com
support@peripheralelectronics.com
©2007 AAMP of Florida, Inc.
©2008 AAMP of Florida, Inc.
add
add
iPod
iPod
,
®
®
,
®
®
Rev. 04-24-08
Advertisement
Table of Contents
Related Manuals for iSimple ISFD73
Summary of Contents for iSimple ISFD73
- Page 1 ® ® FORD Owner’s Manual Owner’s Manual Media Gateway PXAMG Media Gateway ISFD73 PXAMG Peripheral Electronics ® Peripheral Electronics ® a division of AAMP of America™ a division of AAMP of America™ 13160 56th Court Clearwater, Florida 33760 13160 56th Court Clearwater, Florida 33760 Ph.
-
Page 2: Table Of Contents
Table of Contents Pages 1. Introduction 2. Precautions 3. Compatibility Notes 4. Dipswitch Settings 5. Installation 6. iPod Operation 7. HD Radio Operation (if equipped) Selecting AUX Input Selecting Factory Satellite (if equipped) Troubleshooting Warranty Information... - Page 3 Media Gateway & Optional Add-ons Factory Radio Not Included iPod Media Gateway Harness Not Included Part #: PGHFD1 Media Gateway Part #: PXAMG 11Ft. iPod Cable 3Ft. HD Radio Cable HD Radio Tuner (sold separately) Part #: HDRT Antenna Adapter * Required for most 2008 vehicles.
-
Page 4: Introduction
1. Introduction Thank you for purchasing the Peripheral Electronics ® Media Gateway. The Media Gateway is designed to provide endless hours of listening pleasure from your factory radio. To ensure that your HD Radio tuner or iPod performs correctly with your radio, we recommend that you read this entire manual before attempting installation of the Media Gateway. -
Page 5: Compatibility Notes
3. Compatibility Notes This section will inform you of the specific requirements for your factory radio to be compatible with the Media Gateway. These notes will inform you of any issues or circumstances that can affect the compatibility of our product with your radio, audio system, or accessories. Not all Factory radios are compatible with the Media Gateway. -
Page 6: Installation
5. Installation 1. When making electrical connections it is always recommended that the vehicle’s battery be disconnected from the electrical sys- tem before performing the installation. 2. Carefully remove the trim panels covering the 7mm bolts that secure the radio into the dash cavity. Remove these bolts, and carefully pull the radio from the dash of the vehicle. - Page 7 8. With all connections made, reconnect the vehicle’s battery, insert the key into the ignition, and turn the vehicle on. Check for proper operation of the Media Gateway and HD Radio tuner before reinstalling the factory dash panels. 9. NOTE: The first time that you access the Gateway, your radio may display “DEV INIT”...
-
Page 8: Ipod Operation
6. iPod Operation Simply press the “AUX” or “SAT” button (SR123 icon on navigation radio), until “IPOD” is displayed on the radio. ** When you press the “AUX” or “SAT” button, you will see the corresponding SAT mode (for example SAT 1), a slight delay, and then the current Me- dia Gateway mode will be displayed (HD Radio/iPod/Sat1 - Sat 2 - Sat 3/Line In) Controls:... - Page 9 (“F:” in front of the different artists names indicates that this is the folder of artists). Press Preset #2 to select browse by Artist. The list of Artists on your iPod will be displayed one at a time in alphabetical order.
- Page 10 ”SEEK►” ”◄SEEK” Press the button to cycle through the albums, once the desired album is displayed, Press Preset #2 to select the desired Album. The first song in the album will be displayed. “TR:” will be displayed in front of the song title to indicate that a “track” or song title is being displayed.
- Page 11 ”SEEK►” ”◄SEEK” Press the button to cycle through the songs in the selected album. Songs are listed in the order in which they appear in the album, not alphabetically. When the radio displays the name of the desired song, Press Preset #2 to select and play the desired song. The display will automatically change to display the title of the chosen song.
-
Page 12: Hd Radio Operation
7. HD Radio Operation (if equipped) Simply press the “AUX” or “SAT” button (SR123 icon on navigation radio) until “HD Radio” is displayed on the screen. ** When you press the “AUX” or “SAT” but- ton, you will see the corresponding SAT mode (for example SAT 1), a slight de- lay, and then the current Media Gateway mode will be displayed (HD Radio/iPod/... -
Page 13: (If Equipped)
Displaying Text A. Radios equipped with the text/scan but- ton: 1. Press the TEXT/SCAN button to display artist/song title information, if available. B. Radios not equipped with the TEXT/ SCAN button: 1. Press the button located in the top right hand corner of the radio to display artist/song title information, if available. -
Page 14: Troubleshooting
10. Troubleshooting Symptom Cause Remedy Radio shows iPod iPod cable is not Verify the docking cable is connected not connected connected to iPod or to the Media Gateway, and the iPod Gateway. The iPod firmware Update iPod firmware for free at http:// I can not correctly control the iPod may be out of date. -
Page 15: Warranty Information
Within the first 12 months from date of purchase, subject to the conditions above, Peripheral Electronics will repair or replace the product at their discretion, if it is defective in material or workmanship providing it is returned to an Authorized Peripheral Electronic’s Dealer, with PROOF OF PURCHASE from an authorized... - Page 16 Peripheral Electronics ® a division of AAMP of America™ 13160 56th Court Clearwater, Florida 33760 Ph. 800-477-2267 ext. 230 support@peripheralelectronics.com ©2008 AAMP of Florida, Inc.
