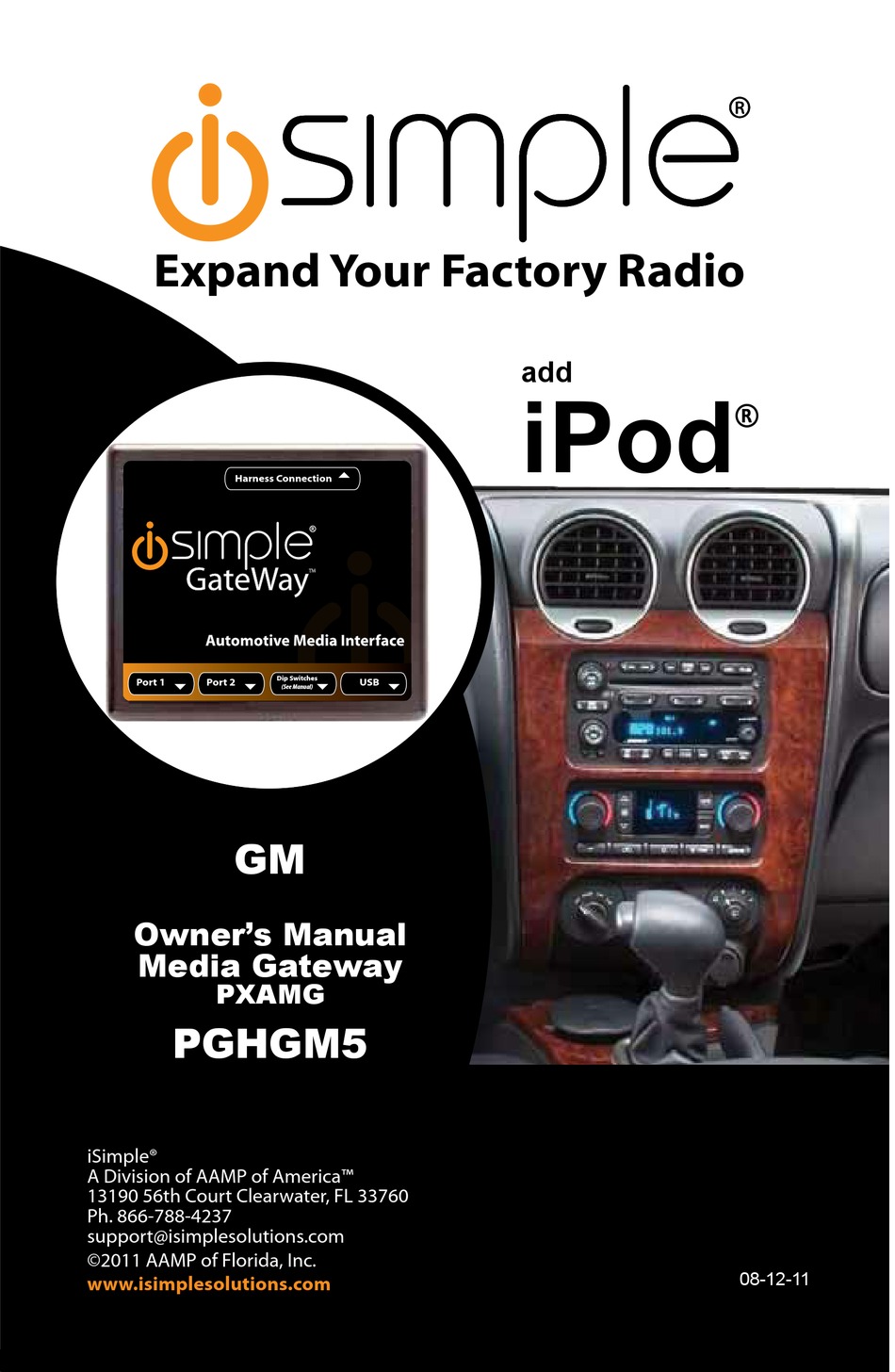

Expand Your Factory Radio
Harness Connection
Port 1
Port 2
GM
Owner's Manual
Media Gateway
PXAMG
PGHGM5
iSimple®
A Division of AAMP of America™
13190 56th Court Clearwater, FL 33760
Ph. 866-788-4237
support@isimplesolutions.com
©2011 AAMP of Florida, Inc.
www.isimplesolutions.com
Dip Switches
USB
(See Manual)
add
iPod
®
08-12-11
Rev. 05-05-08
Inst007
Advertisement
Table of Contents
Related Manuals for iSimple PGHGM5
Summary of Contents for iSimple PGHGM5
- Page 1 Port 1 Port 2 (See Manual) Owner’s Manual Media Gateway PXAMG PGHGM5 iSimple® A Division of AAMP of America™ 13190 56th Court Clearwater, FL 33760 Ph. 866-788-4237 support@isimplesolutions.com ©2011 AAMP of Florida, Inc. 08-12-11 Rev. 05-05-08 www.isimplesolutions.com...
-
Page 2: Table Of Contents
Table of Contents Pages 1. Introduction 2. Precautions 3. Compatibility Notes 4. Dipswitch Settings 5. Installation 6. iPod Operation HD Radio Operation (if equipped) Sirius Operation (if equipped) 9. Selecting Aux Input Selecting Factory Satellite (if equipped) Troubleshooting Warranty Info... - Page 3 Media Gateway & Optional Add-ons Factory Radio Not Included *The Media Gateway Media Gateway Harness will only support 2 Part #: PGHGM5 inputs. Media Gateway Part #: PXAMG Harness Connection Dip Switches Port 1 Port 2...
-
Page 4: Introduction
1. Introduction Thank you for purchasing the iSimple ® Media Gateway. The Media Gateway is designed to provide endless hours of listening pleasure from your factory radio. To ensure that your iPod performs correctly with your radio, we recommend that you read this entire manual before attempting installation of the Media Gateway. -
Page 5: Compatibility Notes
3. Compatibility Notes Your vehicle MUST either be equipped with, or have the ability to support Satellite Radio. Please visit www.isimplesolutions.com for the most up to date application information and to verify your vehicles compatibility. 4. Dipswitch Settings Vehicles With Navigation All Other Vehicles... -
Page 6: Installation
5. Installation 1. When making electrical connections it is always recommended that the vehicle’s battery be disconnected from the electrical system before performing the installation. Please Note: If the radio is equipped with a built in CD Changer, please remove ALL discs before proceeding to prevent damage to the radio’s CD mechanism. -
Page 7: Ipod Operation
9. Plug in the male connectors on the PGHGM5 harness into the 24-pin port and 12- pin port on the back of the radio. Next, connect the factory 24-pin and 12-pin harness (if available) into the female connectors on the PGHGM5 harness. Be sure to make a firm connection but do not force it. -
Page 8: Hd Radio Operation
Menu UP Press PRESET 4 to move back one step in the browse menu Exit Browse menu After 10 seconds of inactivity the menu will time out and return to normal opera- tion. Random Press Preset 6 to turn Random on/off Repeat Press Preset 5 to turn Repeat on/off 7. - Page 9 8. Sirius Satellite Radio Operation Entering Mode Select Menu Press the “BAND” button a few times until “XM” is displayed on the screen. Immediately turn the rotary TUNE KNOB to scroll through the available sources. Once “SIRIUS” is displayed, press “PRESET 6” to select the displayed mode. Channel Up Turn the rotary TUNE KNOB clockwise to move up through the channels Channel Down...
-
Page 10: Selecting Aux Input
9.Selecting AUX Input Entering Mode Select Menu Press the “BAND” button a few times until “XM” is displayed on the screen. Immediately turn the rotary TUNE KNOB to scroll through the available sources. Once “AUX” is displayed, press PRESET 6 to select the displayed mode. 10. -
Page 11: Hd Radio
11. Troubleshooting Symptom Cause Remedy Radio shows iPod iPod cable is not Verify the docking cable is connected not connected connected to iPod or to the Media Gateway, and the iPod Gateway. I can not correctly The iPod firmware Update iPod firmware for free at http:// control the iPod may be out of date. -
Page 12: One Year Limited Warranty
® tive in material or workmanship providing it is returned to an Authorized iSimple ® dealer, with PROOF OF PURCHASE from an authorized iSimple dealer. - Page 13 Notes ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________...
- Page 14 www.isimplesolutions.com For Best Performanc e Have It Professionally Installe d.
