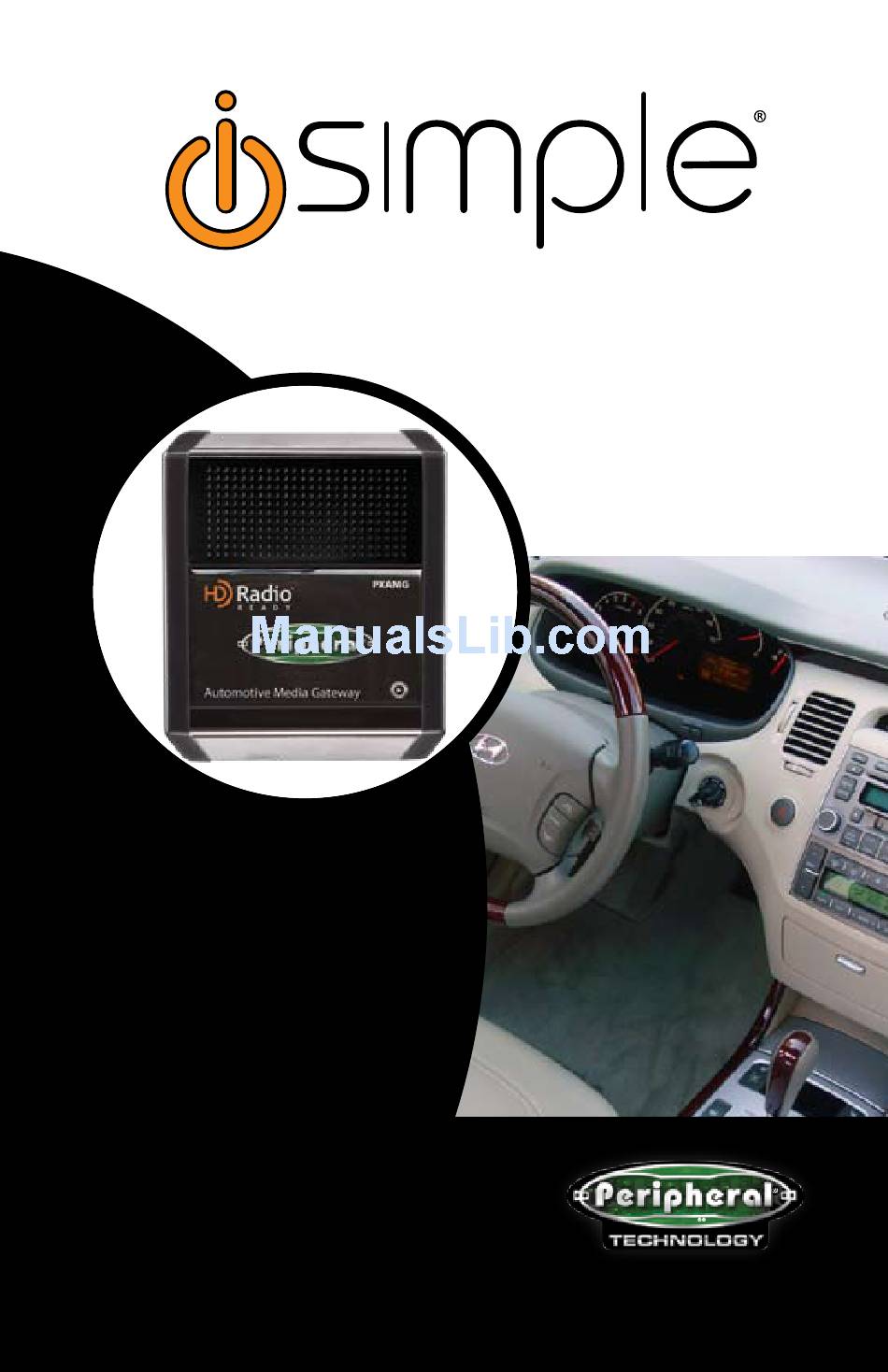

  • Page 1 Expand Your Factory Radio iPod ® HYUNDAI Owner’s Manual Media Gateway PXAMG PGHHY1 Peripheral Electronics Peripheral Electronics ® ® a division of AAMP of America™ a division of AAMP of America™ 13160 56th Court Clearwater, Florida 33760 13160 56th Court Clearwater, Florida 33760 Ph.
  • Page 2: Table Of Contents

    Table of Contents Pages 1. Introduction 2. Precautions 3. Compatibility Notes 4. Dipswitch Settings 5. Installation 6. iPod Operation 7. HD Radio Operation (if equipped) Selecting AUX Input Selecting Factory Satellite (if equipped) Troubleshooting Warranty Info Peripheral Electronics ® a division of AAMP of America™ 13160 56th Court Clearwater, Florida 33760 Ph.
  • Page 3 Media Gateway & Optional Add-ons Factory Radio Not Included iPod Media Gateway Harness Not Included Part #: PGHHY1 Media Gateway Part #: PXAMG 11Ft. iPod Cable 3Ft. HD Radio Cable (sold with HDRT) HD Radio Tuner (sold seperately) Part #: HDRT...
  • Page 4: Introduction

    1. Introduction Thank you for purchasing the Peripheral Electronics ® Media Gateway. The Media Gateway is designed to provide endless hours of listening pleasure from your factory radio. To ensure that your iPod performs correctly with your radio, we recommend that you read this entire manual before attempting installation of the Media Gateway.
  • Page 5: Dipswitch Settings

    HD Radio tuner (HDRT). 6. Plug the male connectors on the PGHHY1 harness into the ports on the back of the radio. Next, connect the factory harnesses into the female connectors on the PGHHY1 harness.
  • Page 6: Ipod Operation

    7. To complete the installation secure the Media Gateway (PXAMG) and HD Radio tuner (HDRT) into the cavity in the dash behind the radio. Be sure that the cables and interface modules are not near moving parts or sharp metal edges as they may damage the cables.
  • Page 7: Hd Radio Operation

    Exit Browse Menu Press Preset #3 to exit the Browse menu and continue playing the current song. Example of how to Browse by Artist Press Preset #2 to enter the Browse menu. ”PL:LIST” will appear on the radio. Press the ”SEEK /\” or ”\/ SEEK” button until “AR:ARTIST” is displayed. Press Preset #2 to select Browse by Artist.
  • Page 8: Selecting Aux Input

    Displaying Text 1. Press the info button on the radio to display artist/song title information, if available. Not all stations broadcast the artist and song title information. NOTE: If the selected station is available in High Definition and the signal is strong enough the radio will auto-lock onto the HD Radio Station.
  • Page 9: Troubleshooting

    10. Troubleshooting Symptom Cause Remedy Radio shows iPod iPod cable is not Verify the docking cable is connected not connected connected to iPod or to the Media Gateway, and the iPod Gateway. I can not correctly The iPod firmware Update iPod firmware for free at http:// control the iPod may be out of date.
  • Page 10: Warranty Info

    11. Warranty One Year Limited Warranty The quality controls used in the manufacture of this product will ensure your satisfaction. This warranty applies only to the original purchaser of this product from an authorized Peripheral Electronics dealer. This warranty covers any supplied or manufactured parts of this product that, upon inspection by Peripheral Electronics authorized personnel, is found to have failed in normal use due to defects in material or workmanship.
  • Page 11 Notes _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________...
  • Page 12: Ph. 800-477-2267 Ext

    www.peripheralelectronics.com Peripheral Electronics ® a division of AAMP of America™ 13160 56th Court Clearwater, Florida 33760 Ph. 800-477-2267 ext. 230 support@peripheralelectronics.com ©2008 AAMP of Florida, Inc.
